OEM Wiring Diagrams -- E-Pace X540
>>
501-14 Handles, Locks, Latches And Entry Systems
>>
Tailgate power striker
Tailgate power striker

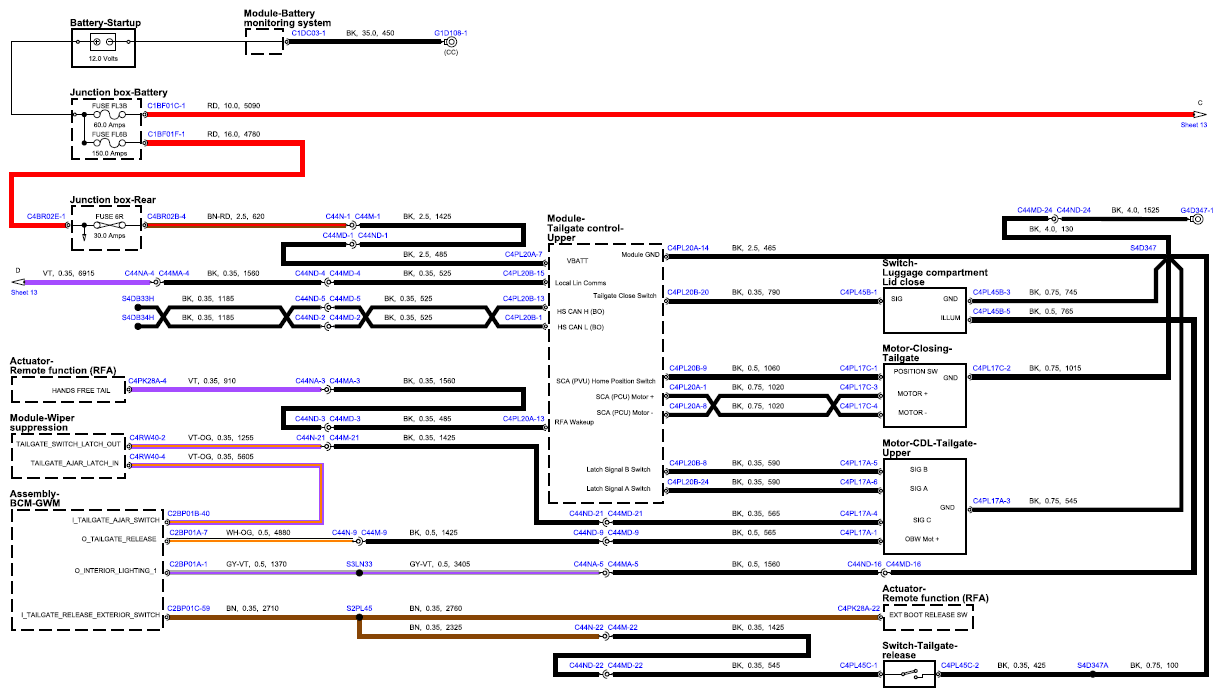

Fig 1: Tailgate Power Striker Circuit Diagram - Sheet 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

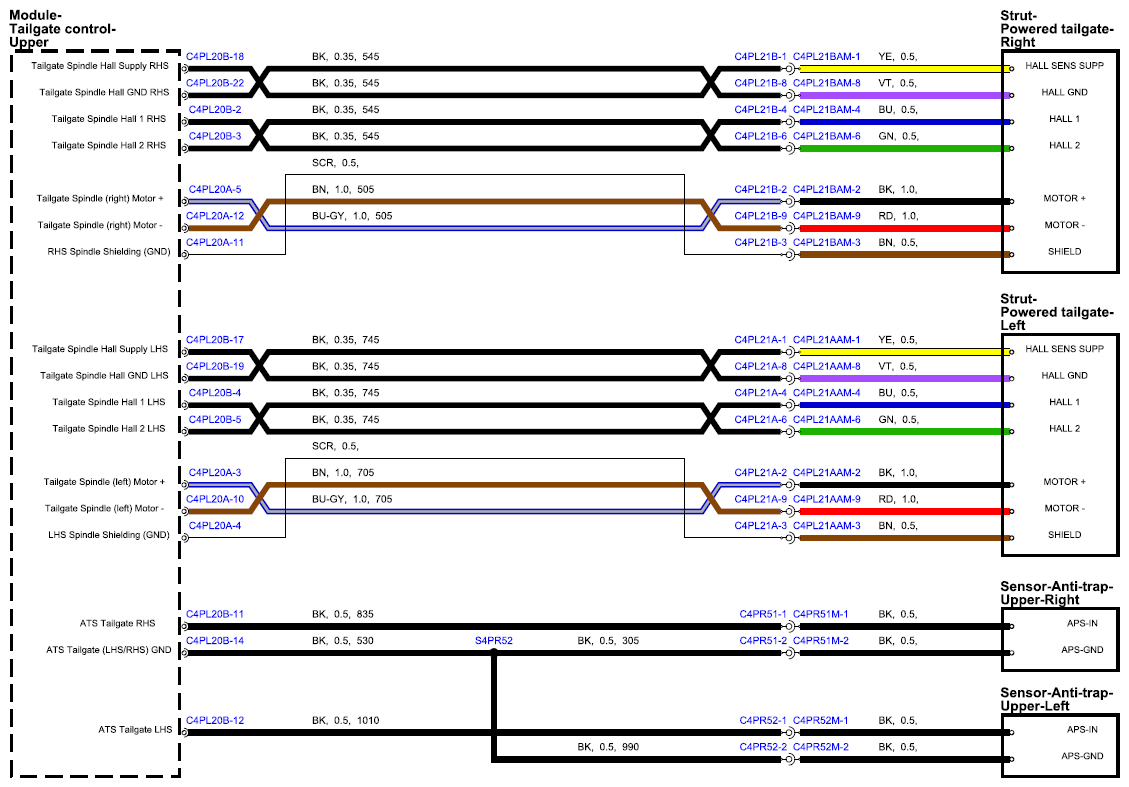

Fig 2: Tailgate Power Striker Circuit Diagram - Sheet 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

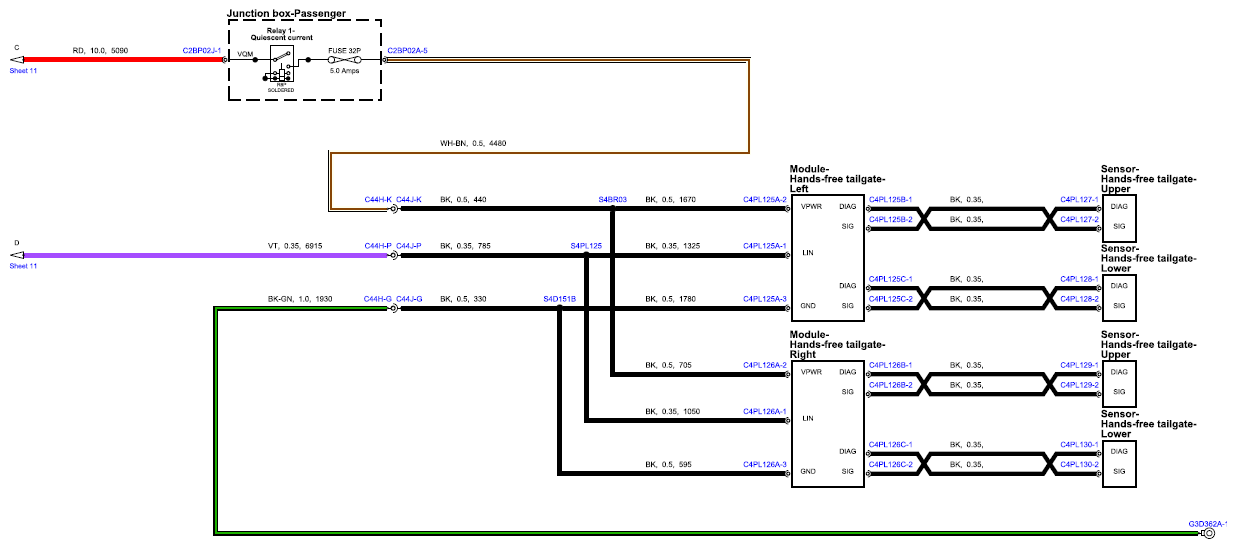

Fig 3: Tailgate Power Striker Circuit Diagram - Sheet 3
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
