Doors, windows, mirrors

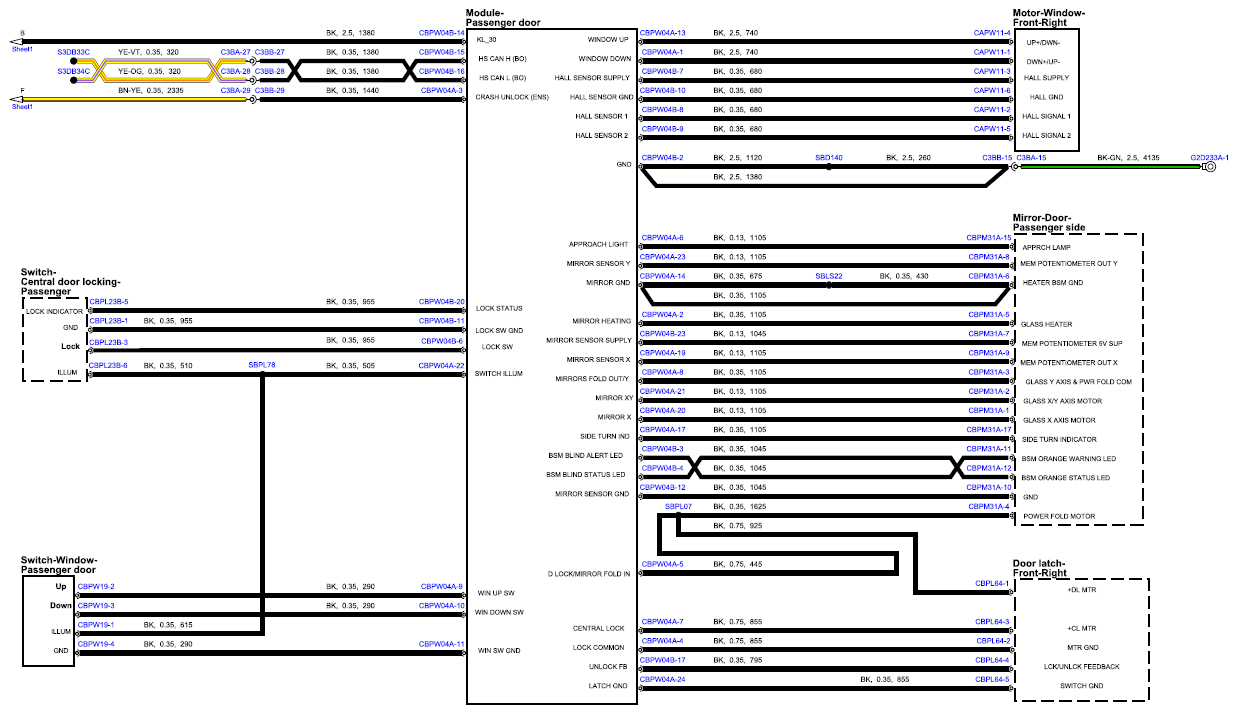

Fig 1: Doors, Windows And Mirrors Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

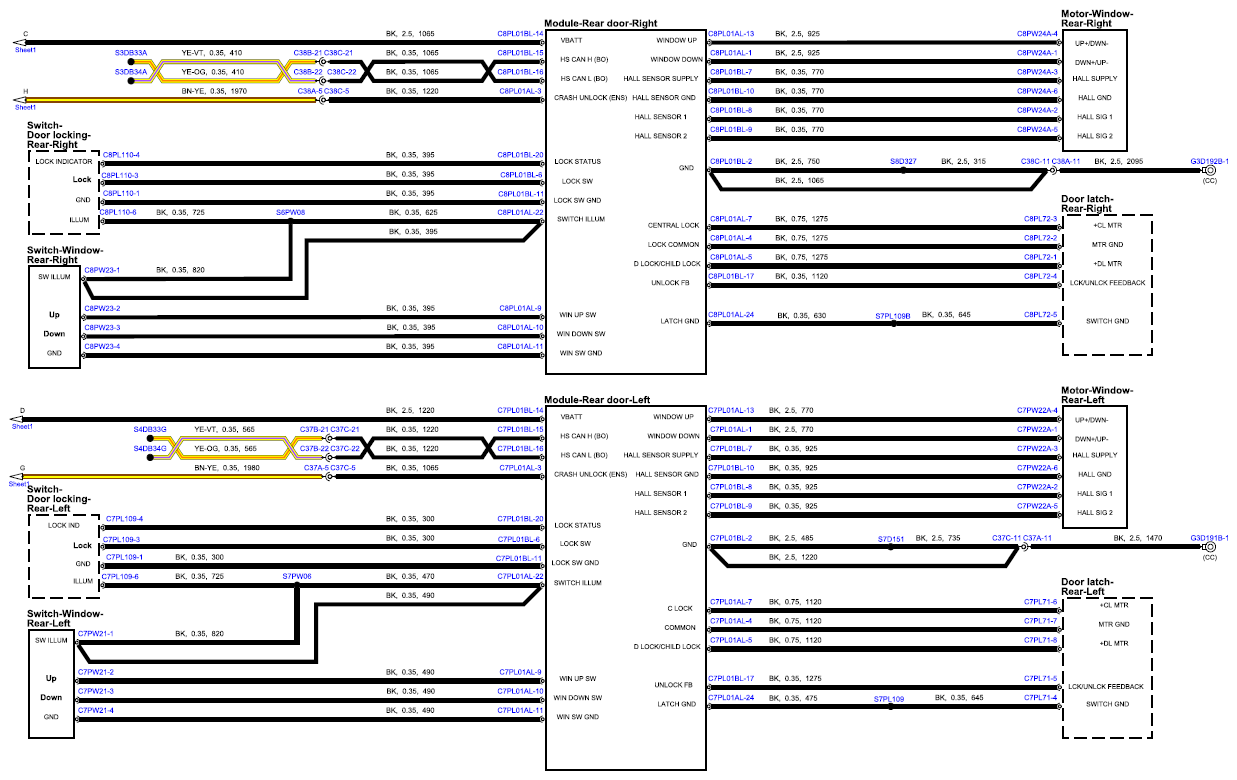

Fig 2: Doors, Windows And Mirrors Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

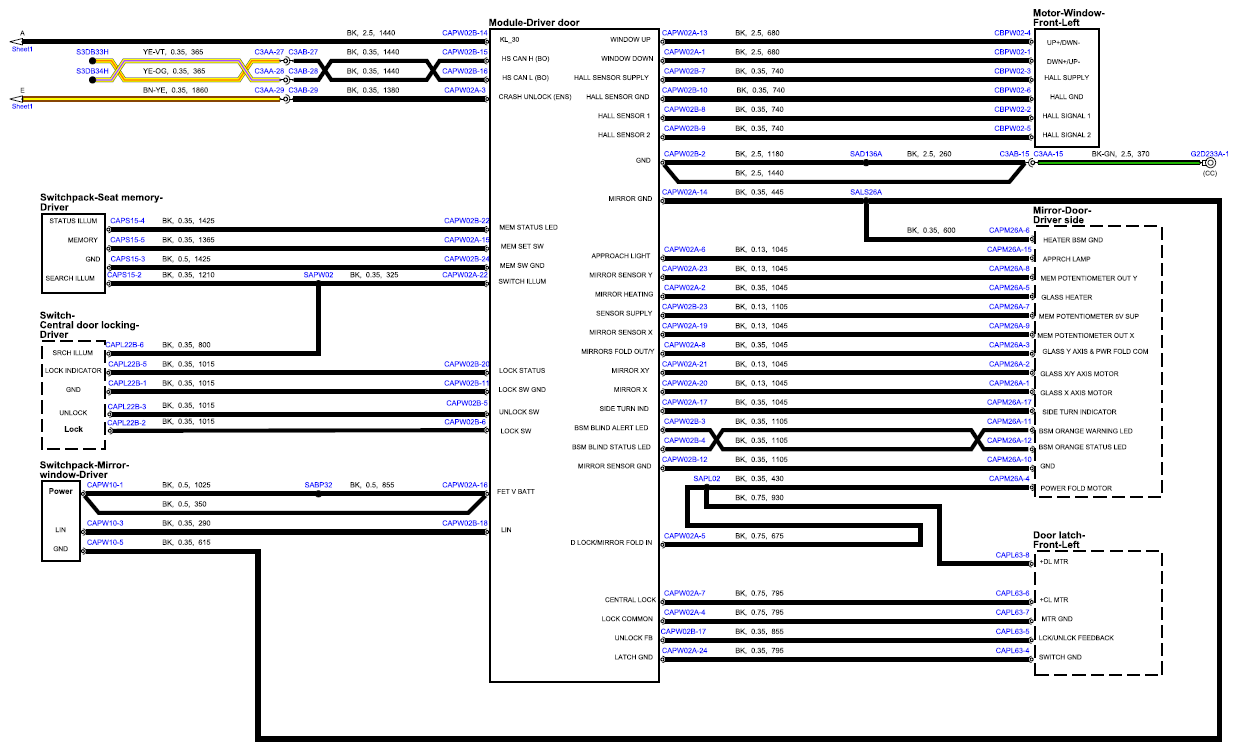

Fig 3: Doors, Windows And Mirrors Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

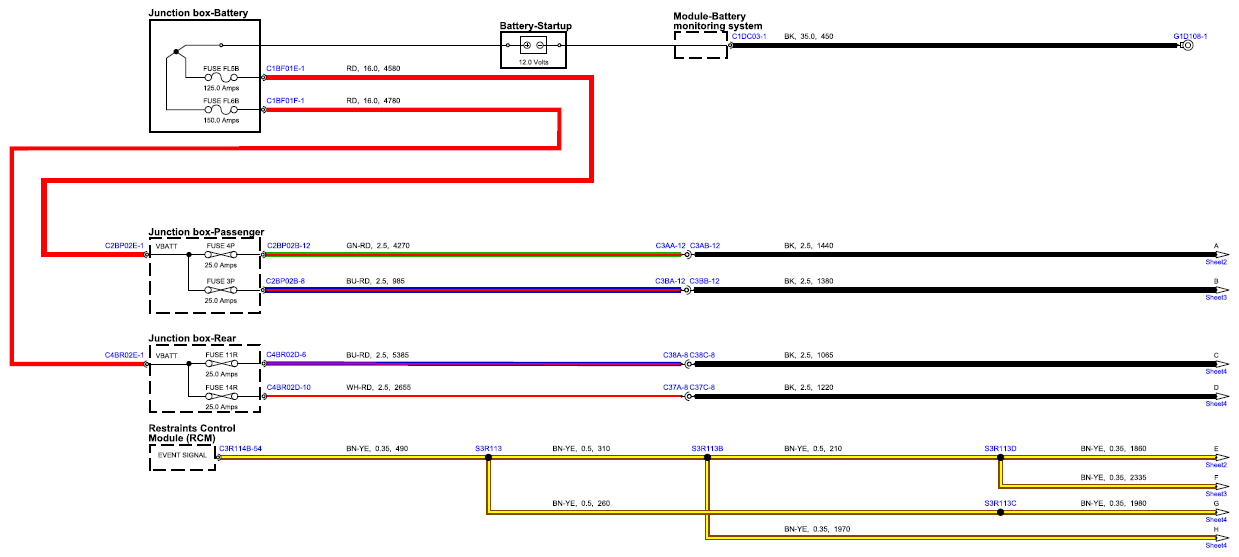

Fig 4: Doors, Windows And Mirrors Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
