Switchpack - Instrument panel (outboard)

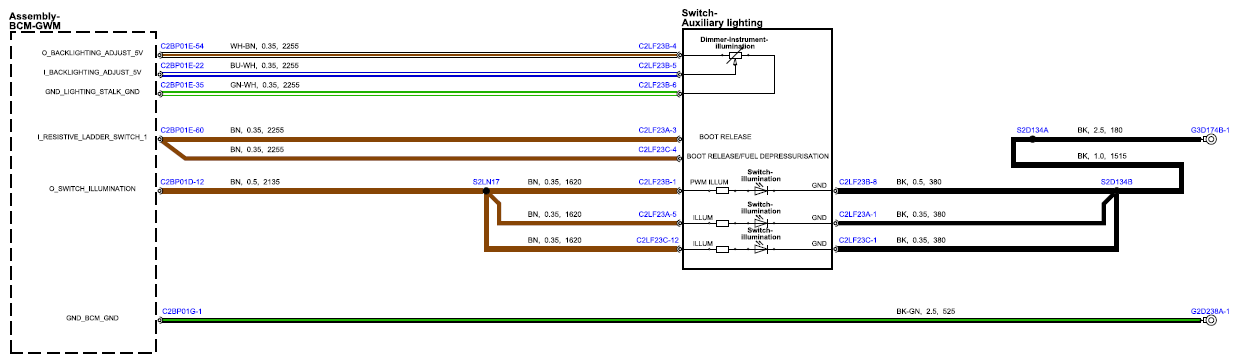

Fig 1: Switchpack - Instrument Panel Circuit Diagram (Outboard)

G15669476

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
