Power, charging and accessory connections

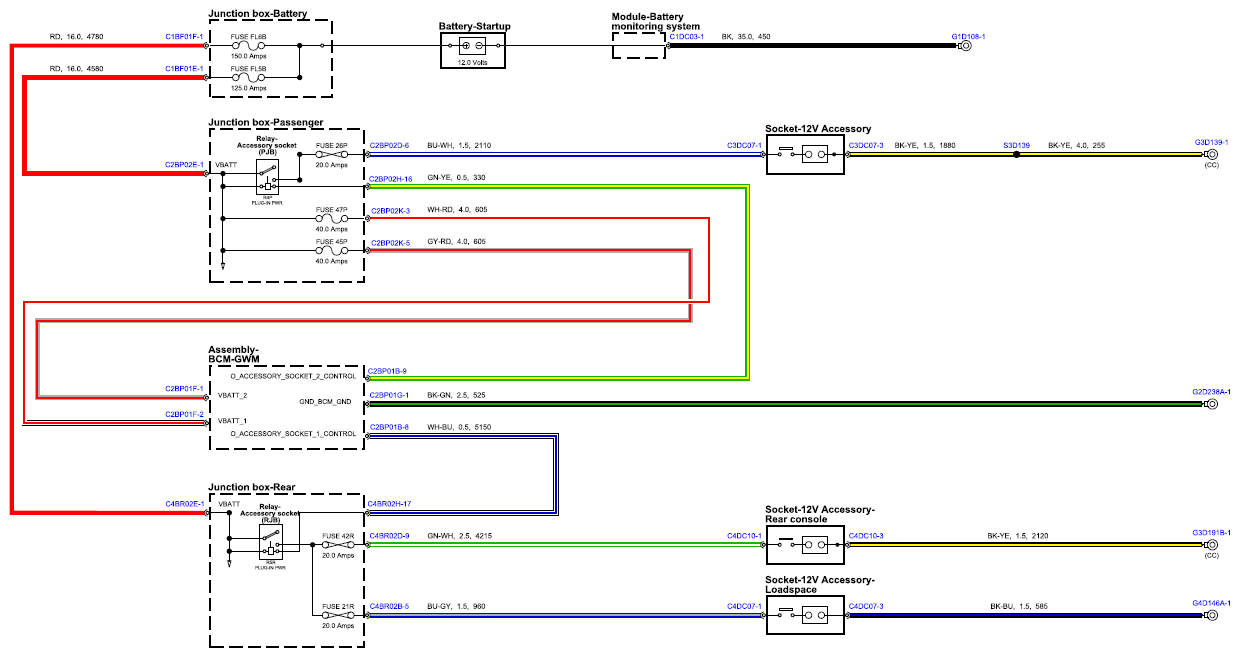

Fig 1: Power, Charging And Accessory Connections Circuit Diagram

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

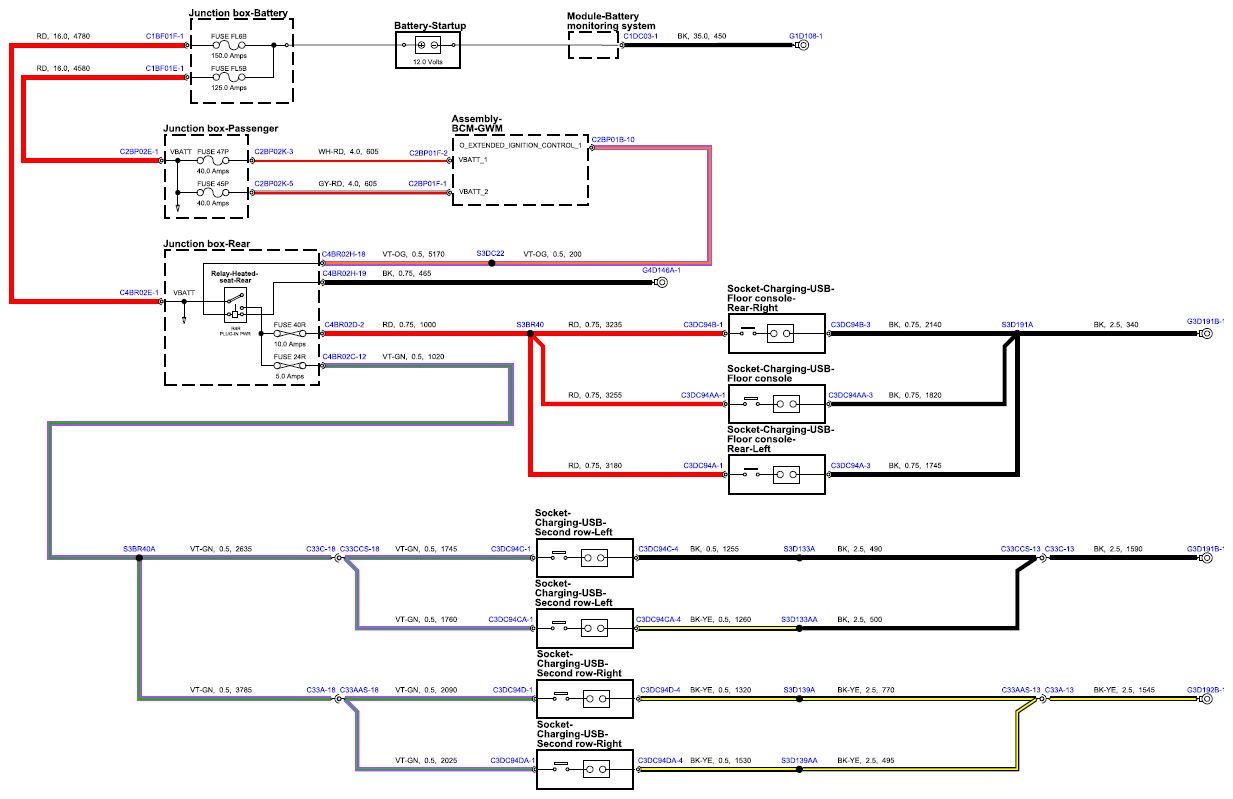

Fig 1: Power, Charging And Accessory Connections Circuit Diagram

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
