OEM Wiring Diagrams -- E-Pace X540
>>
501-10 Seating
>>
Rear - Heated
Rear - Heated

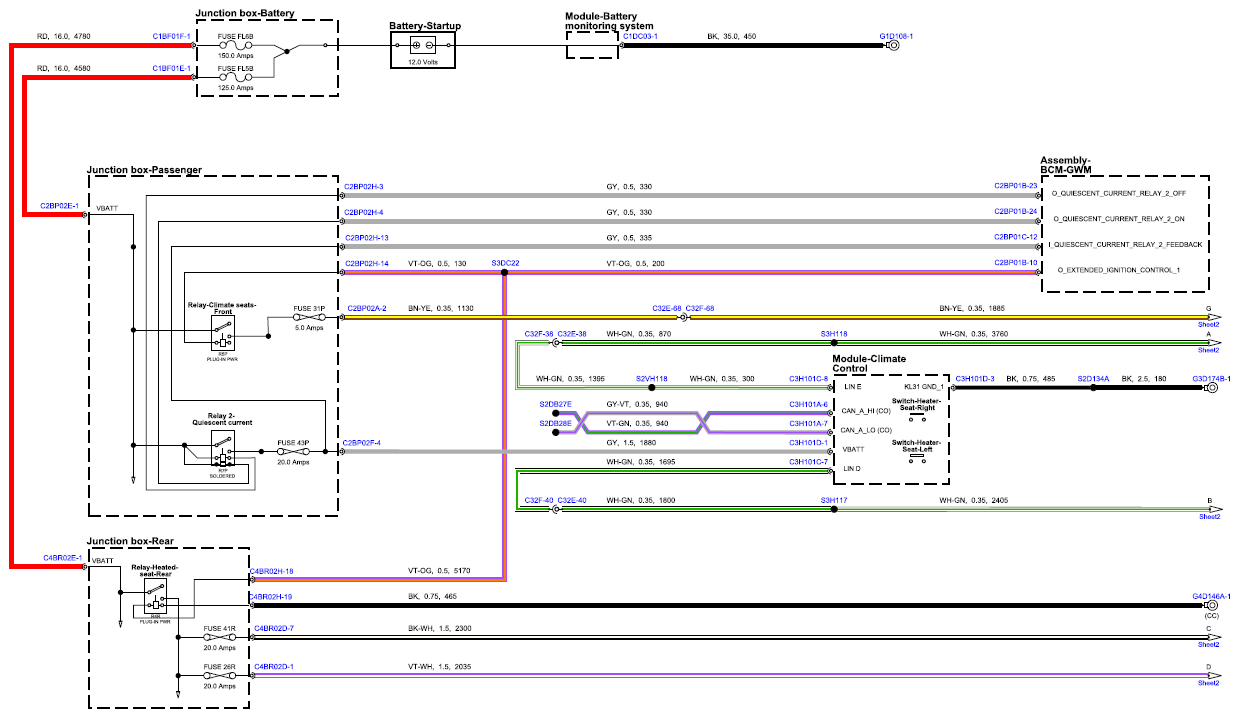

Fig 1: Seating Circuit Diagram - Heated (Rear - Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

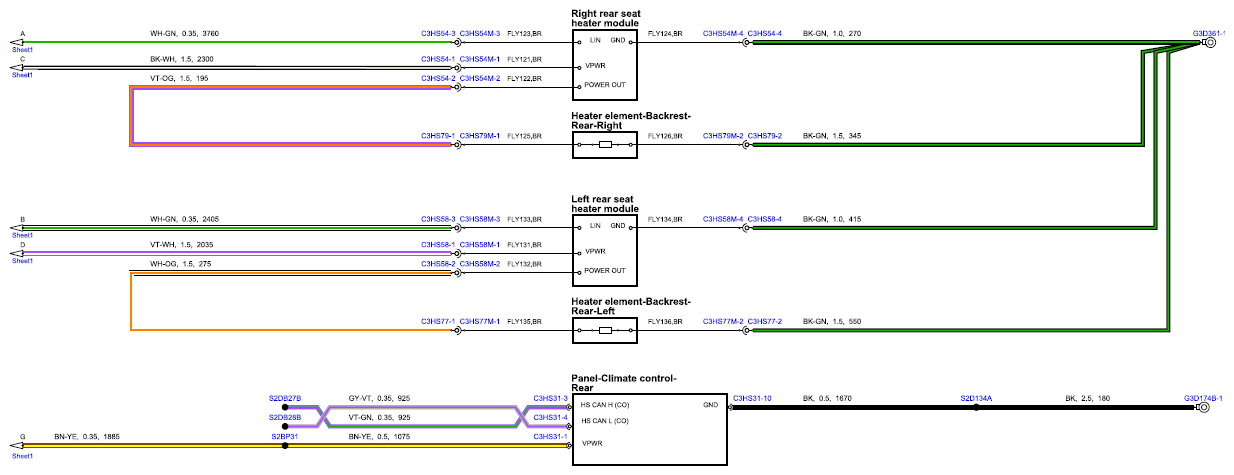

Fig 2: Seating Circuit Diagram - Heated (Rear - Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
