501-10 Seating: Memory

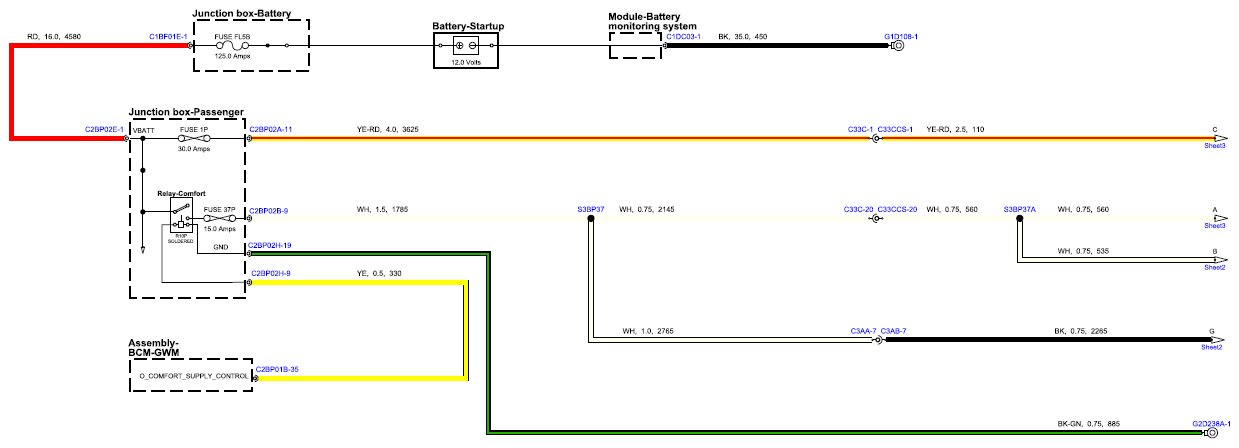

Fig 1: Seating Circuit Diagram - Memory (Sheet 1)
G15669458Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

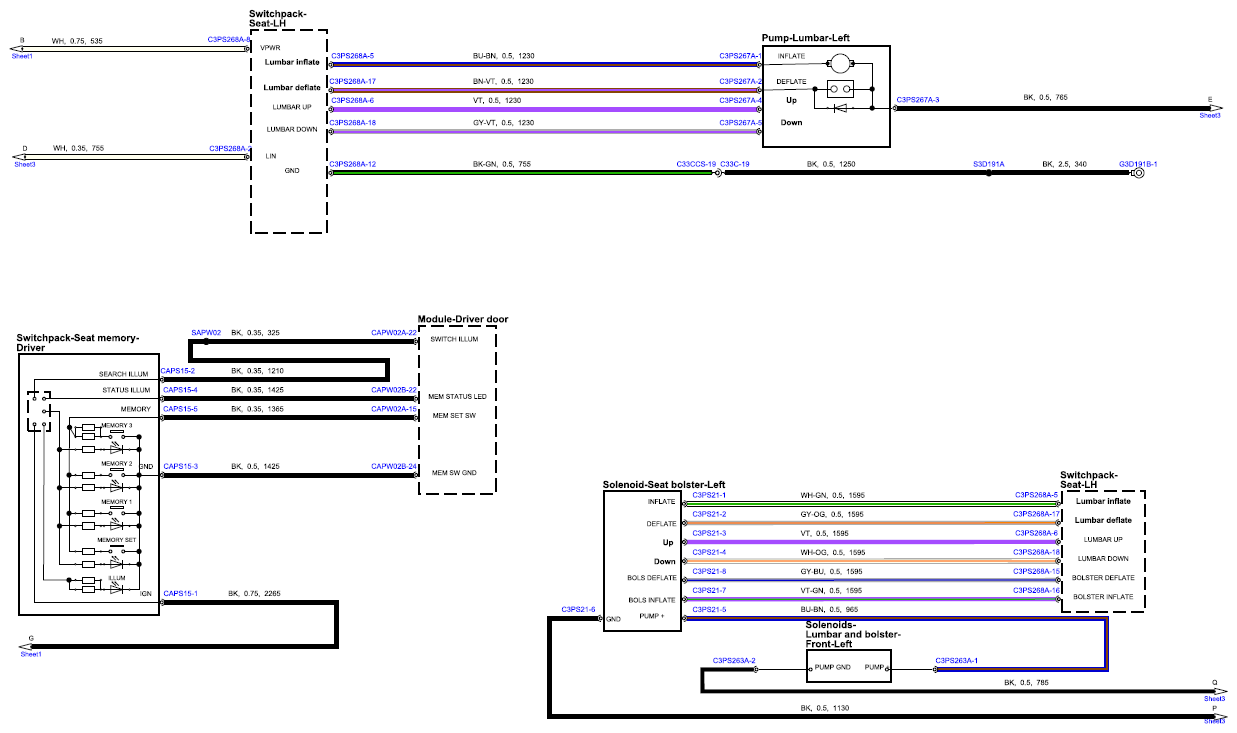

Fig 2: Seating Circuit Diagram - Memory (Sheet 2)
G15669459Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

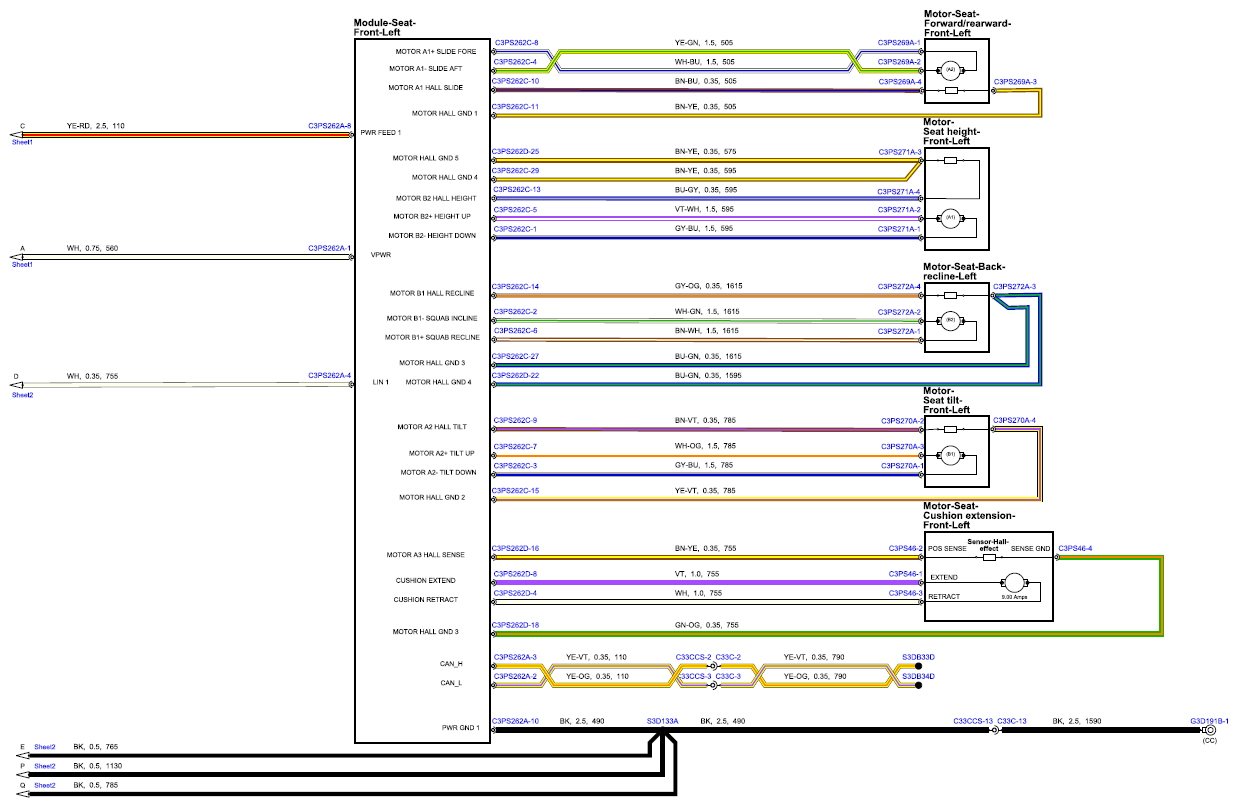

Fig 3: Seating Circuit Diagram - Memory (Sheet 3)
G15669460Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
