OEM Wiring Diagrams -- E-Pace X540
>>
501-10 Seating
>>
Heated - Power positioning
Heated - Power positioning

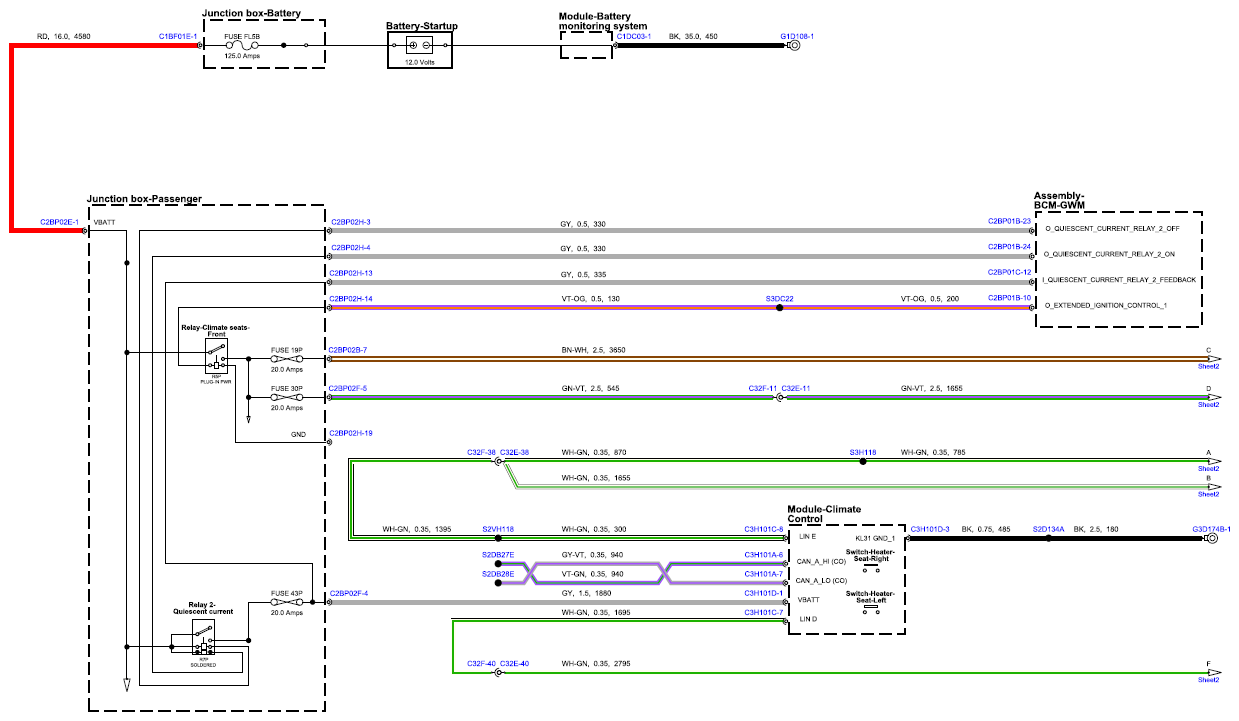

Fig 1: Seating Circuit Diagram - Heated (Power Positioning - Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

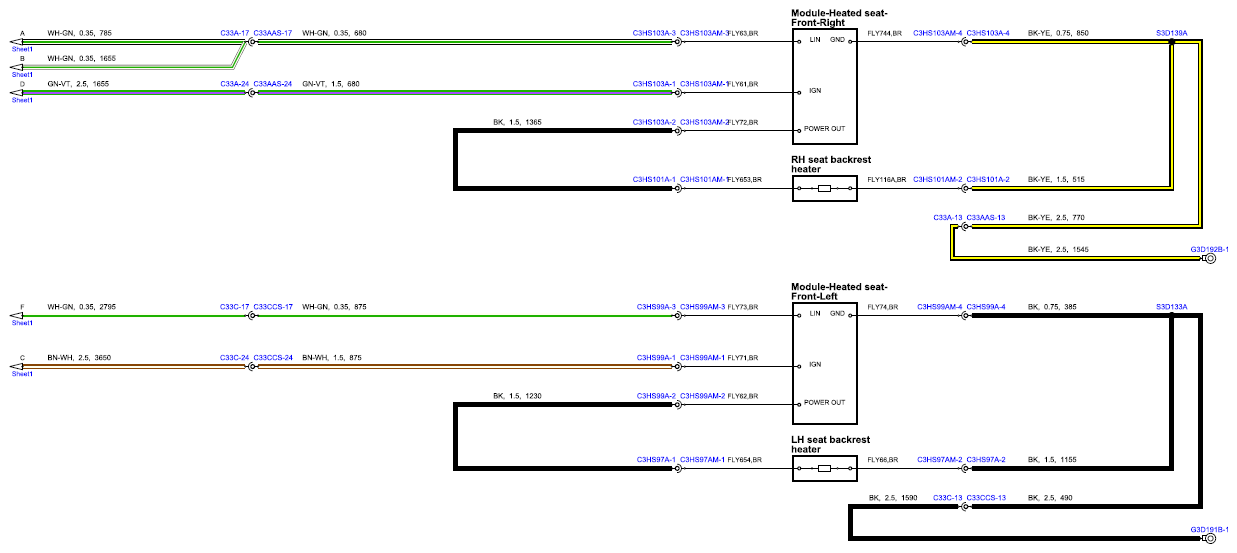

Fig 2: Seating Circuit Diagram - Heated (Power Positioning - Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
