OEM Wiring Diagrams -- E-Pace X540
>>
501-10 Seating
>>
Front - Climate controlled
Front - Climate controlled

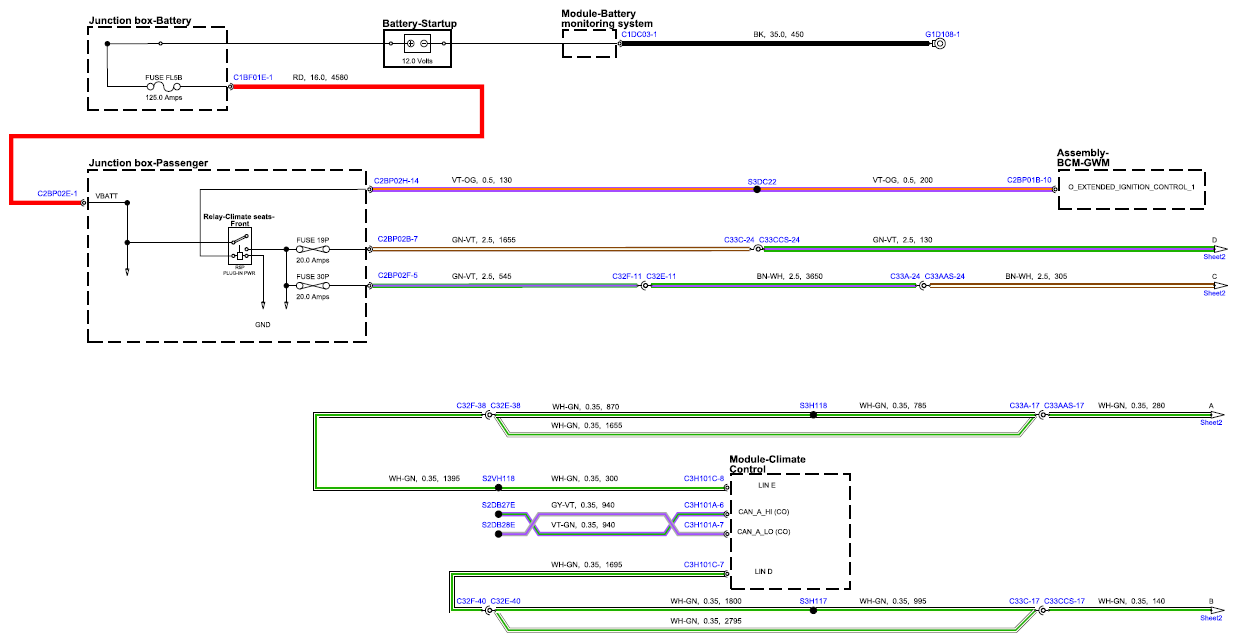

Fig 1: Seating Circuit Diagram - Climate Controlled (Front - Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

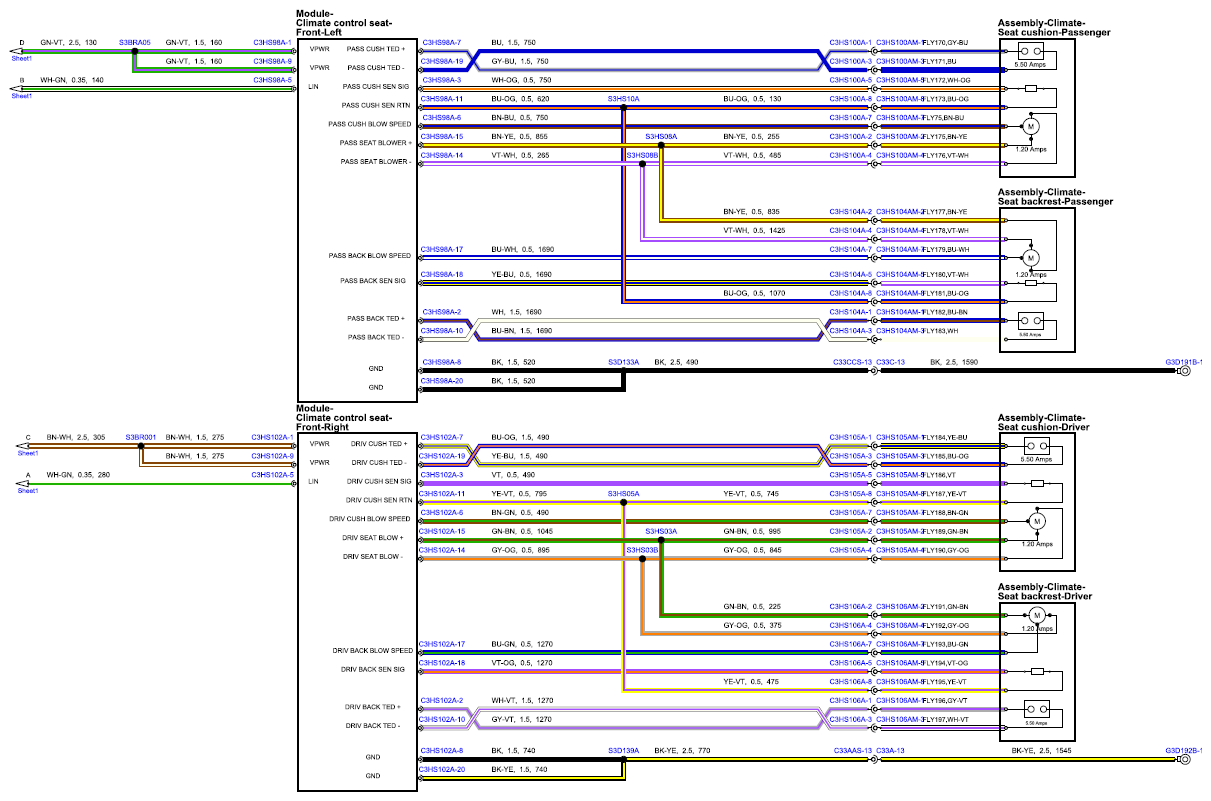

Fig 2: Seating Circuit Diagram - Climate Controlled (Front - Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
