Passive start

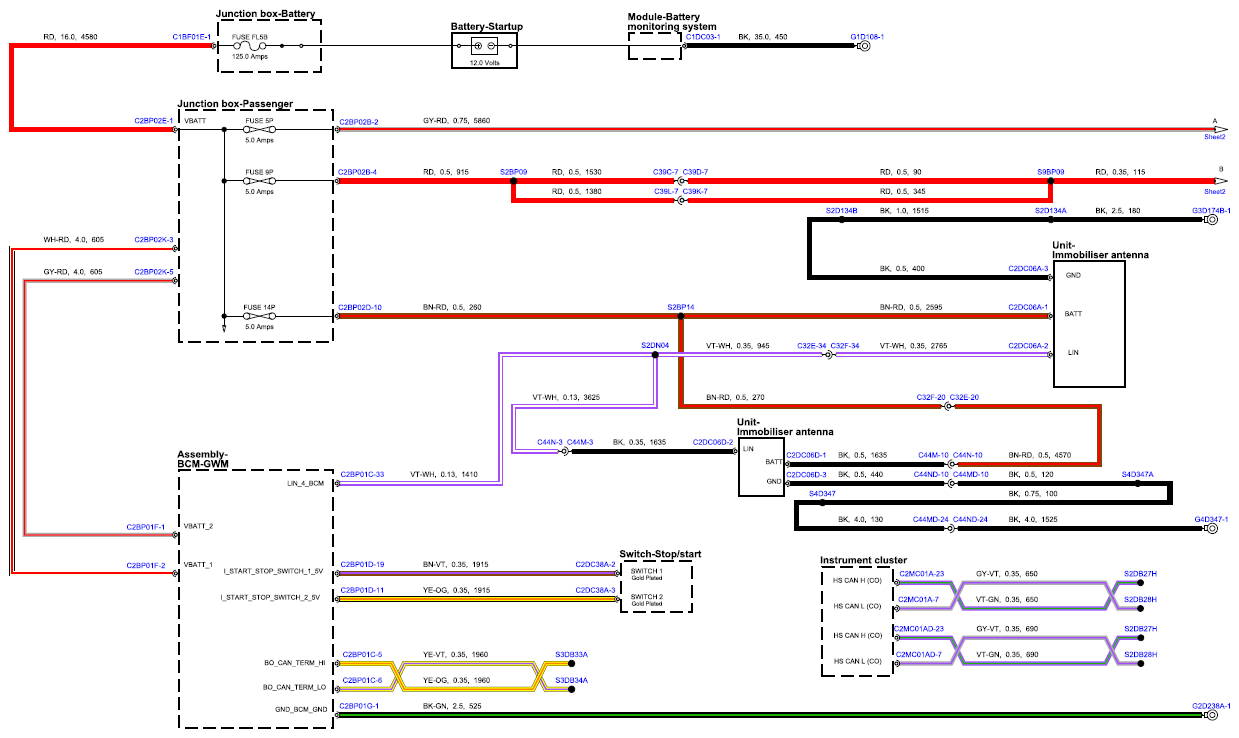

Fig 1: Passive Start Circuit Diagram - Sheet 1
G15669452Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

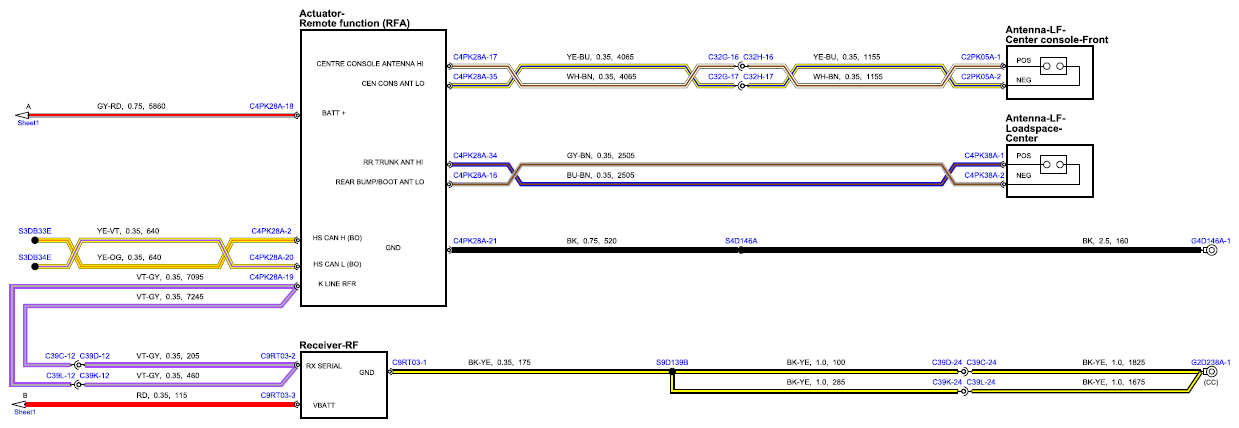

Fig 2: Passive Start Circuit Diagram - Sheet 2
G15669453Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
