OEM Wiring Diagrams -- E-Pace X540
>>
419-01 Anti-Theft System
>>
Passive entry system
Passive entry system

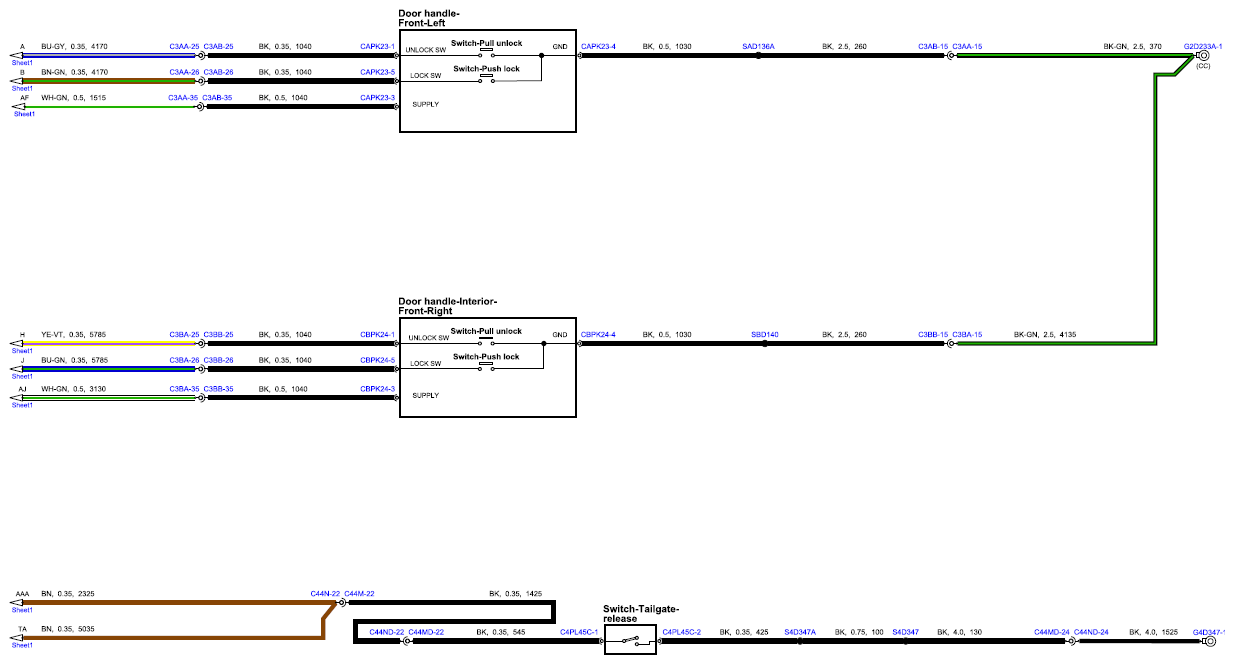

Fig 1: Passive Entry System Circuit Diagram - Sheet 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

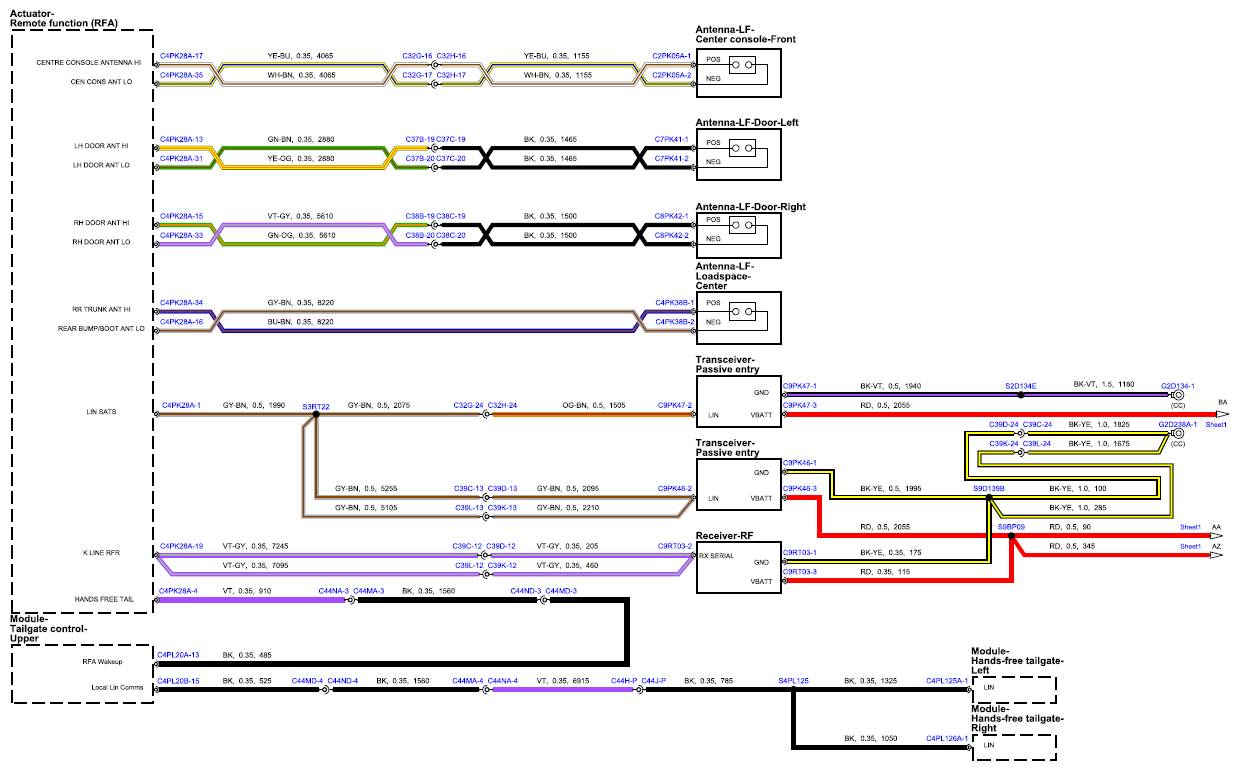

Fig 2: Passive Entry System Circuit Diagram - Sheet 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

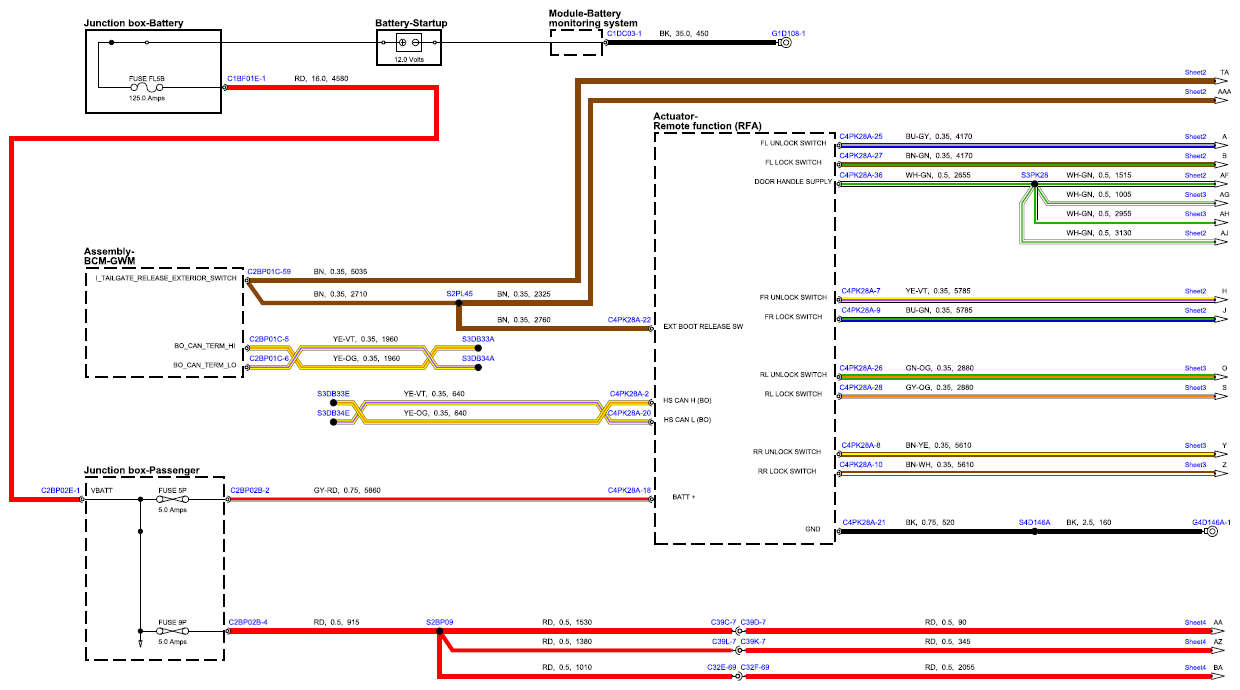

Fig 3: Passive Entry System Circuit Diagram - Sheet 3
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

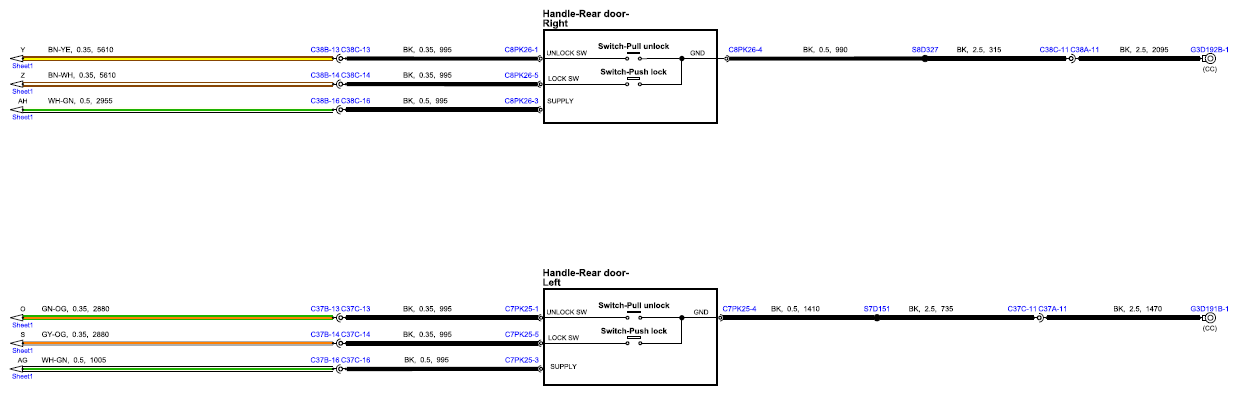

Fig 4: Passive Entry System Circuit Diagram - Sheet 4
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
