419-01 Anti-Theft System: Notes

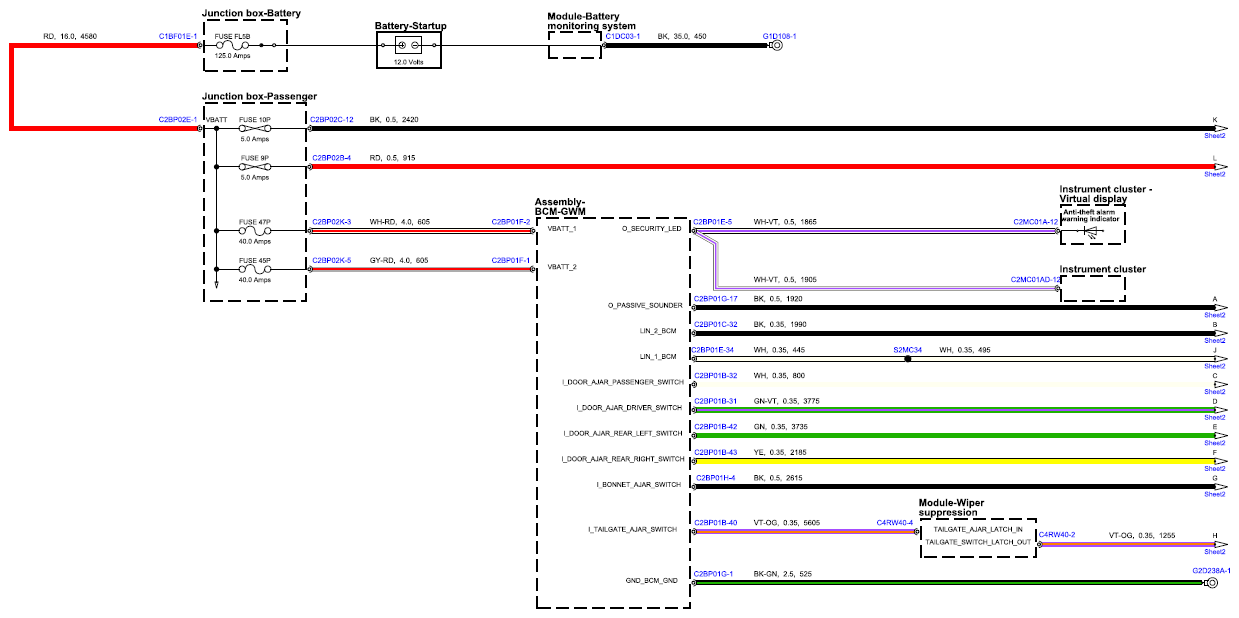

Fig 1: Anti-Theft System Circuit Diagram - Sheet 1
G15669446Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

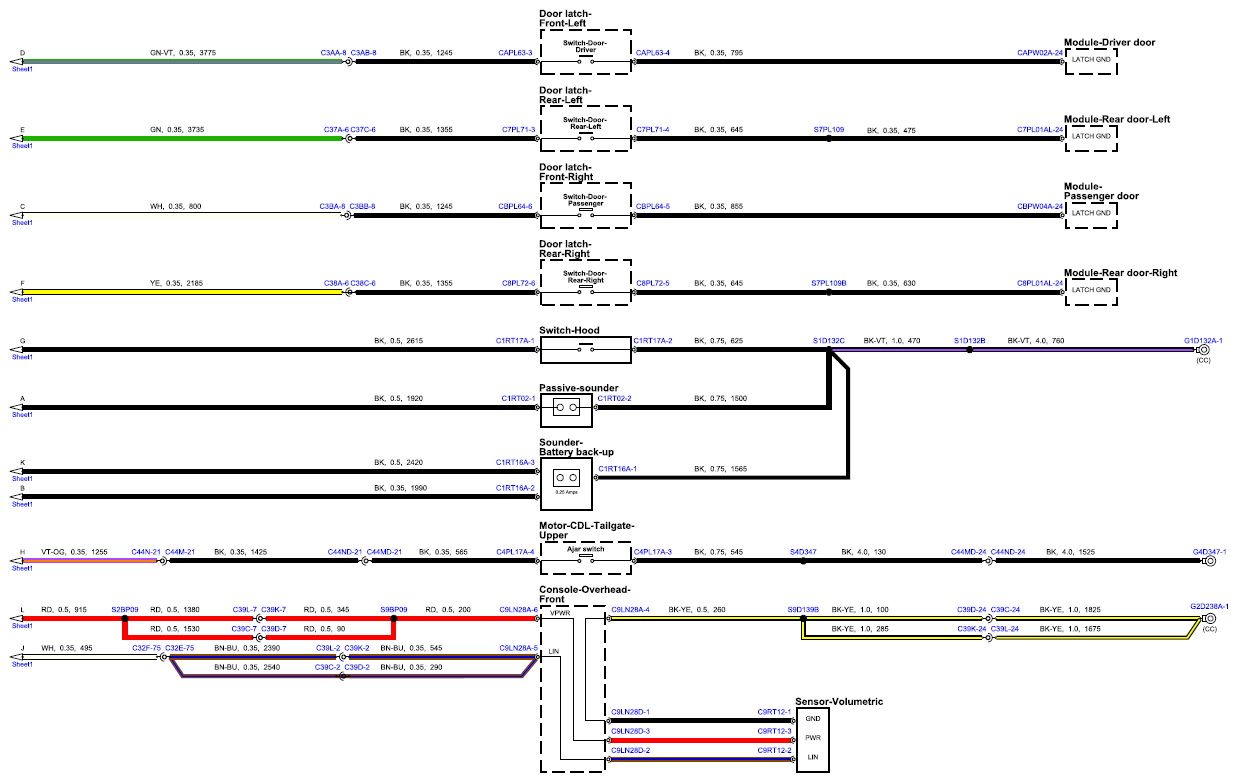

Fig 2: Anti-Theft System Circuit Diagram - Sheet 2
G15669447Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
