OEM Wiring Diagrams -- E-Pace X540
>>
418-00 Module Communications Network
>>
LIN bus
LIN bus

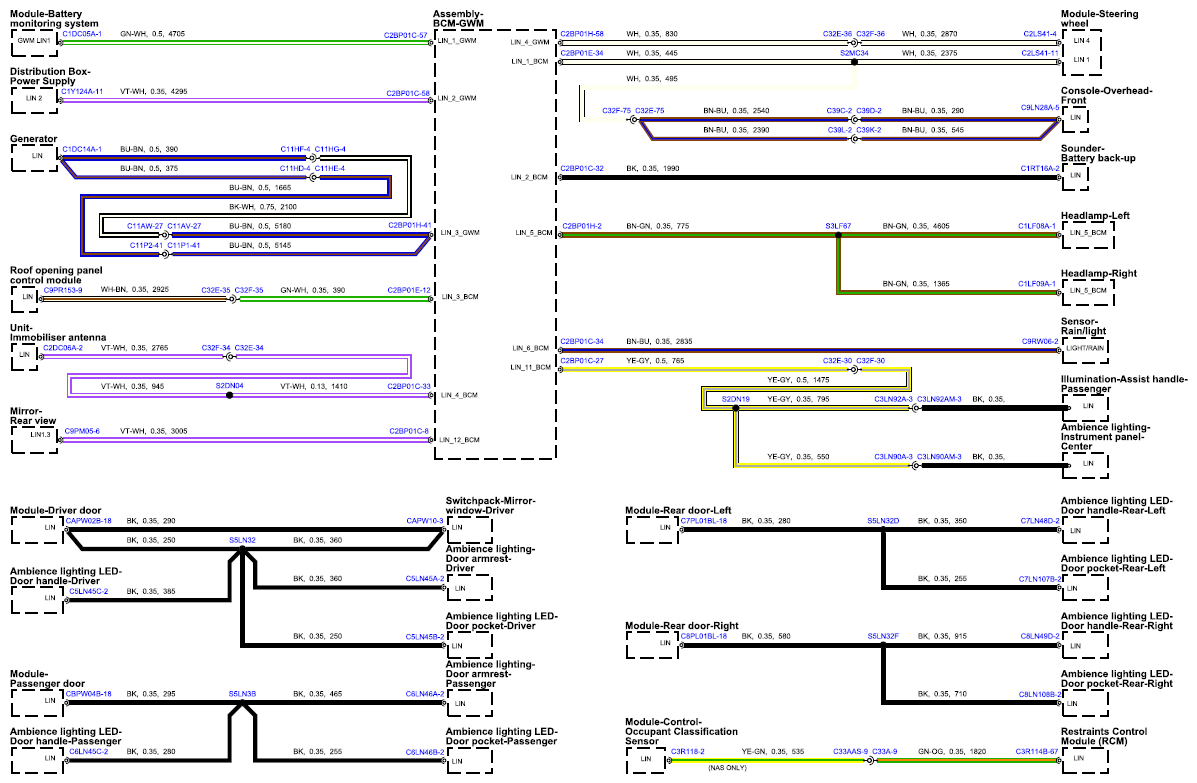

Fig 1: LIN Bus Circuit Diagram - Sheet 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

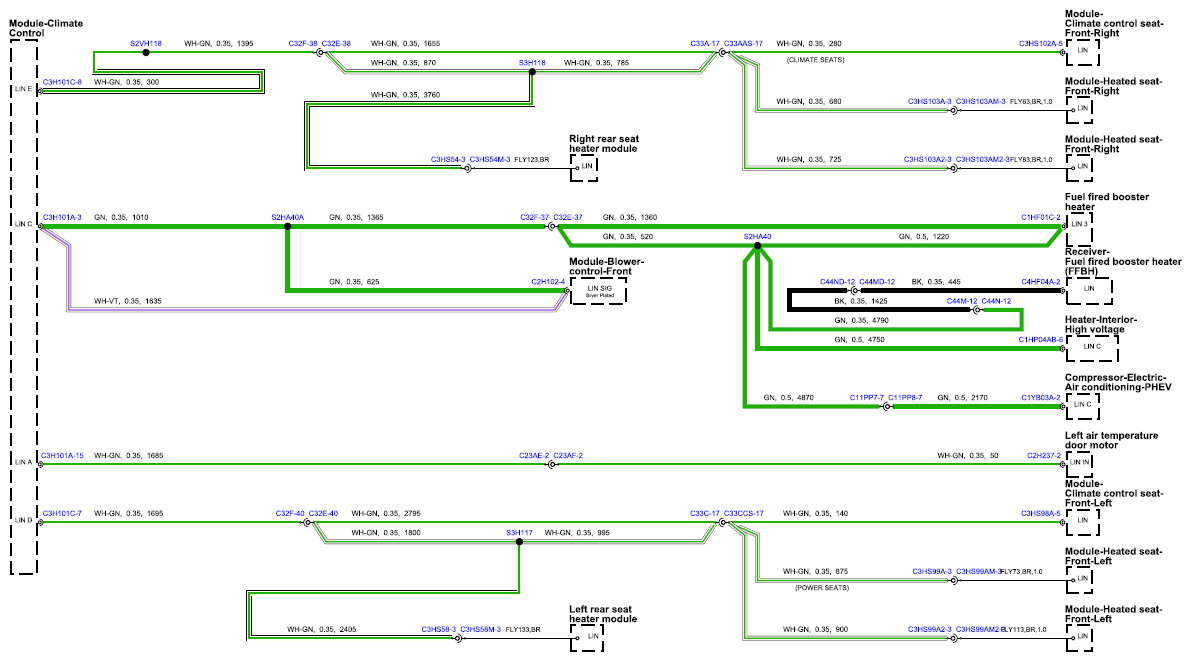

Fig 2: LIN Bus Circuit Diagram - Sheet 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
