418-00 Module Communications Network: FlexRay

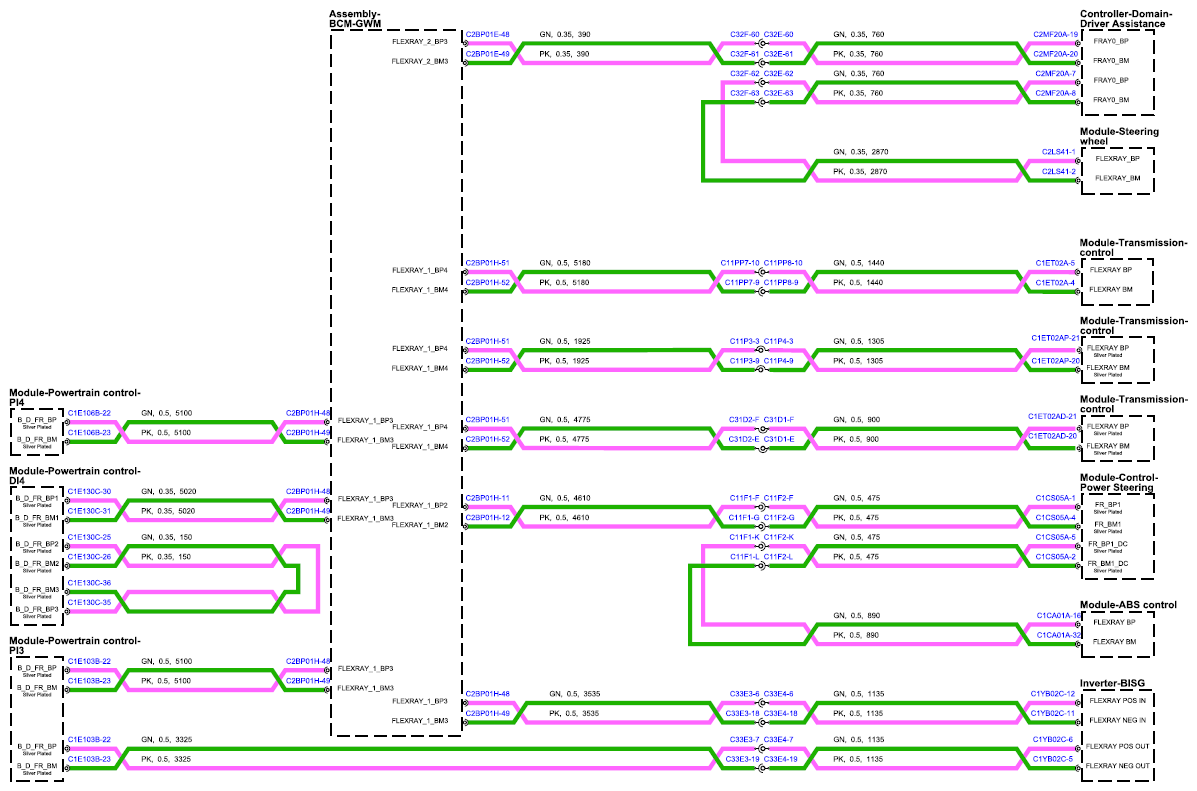

Fig 1: FlexRay Circuit Diagram - Sheet 1
G15669442Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

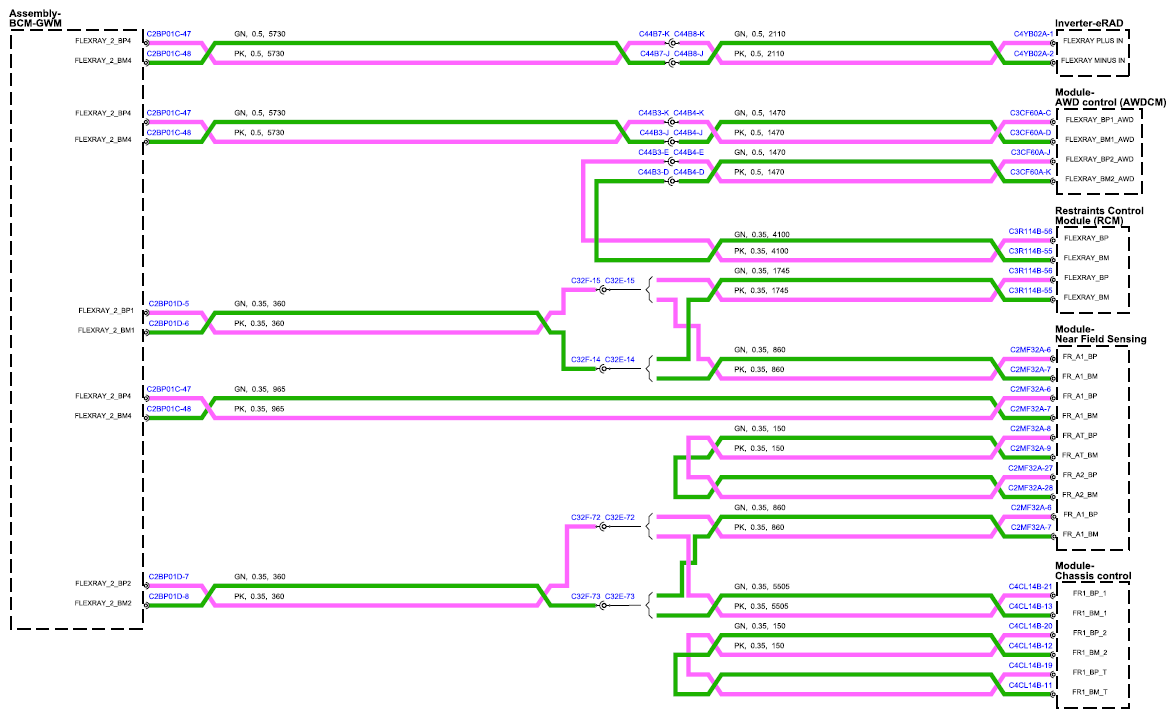

Fig 2: FlexRay Circuit Diagram - Sheet 2
G15669443Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
