CAN bus - High speed - Power mode zero systems

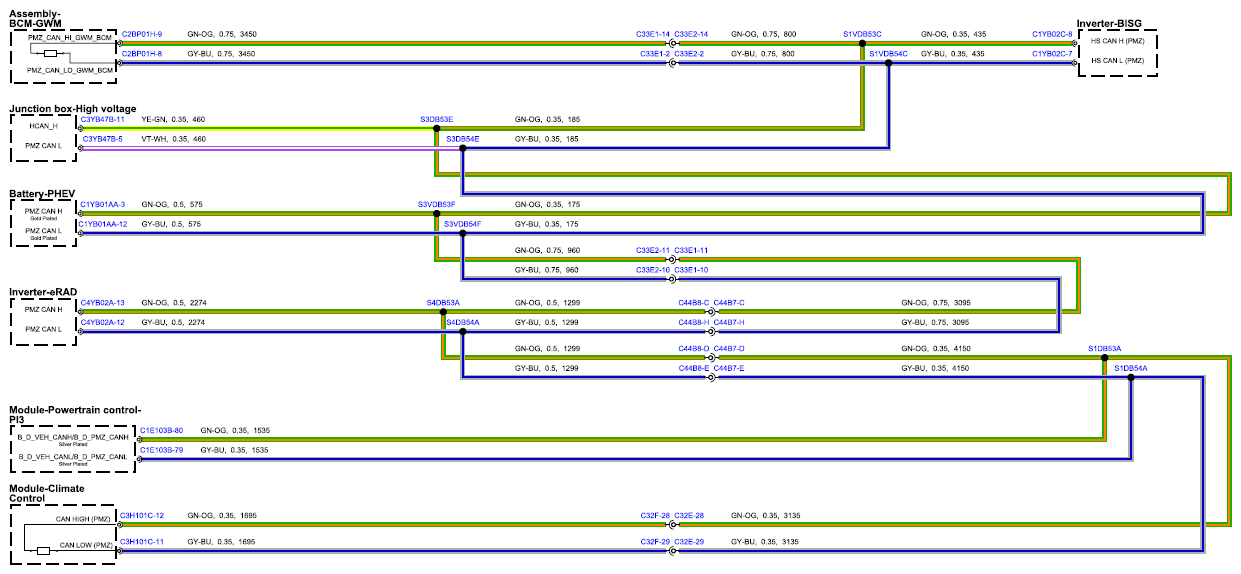

Fig 1: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

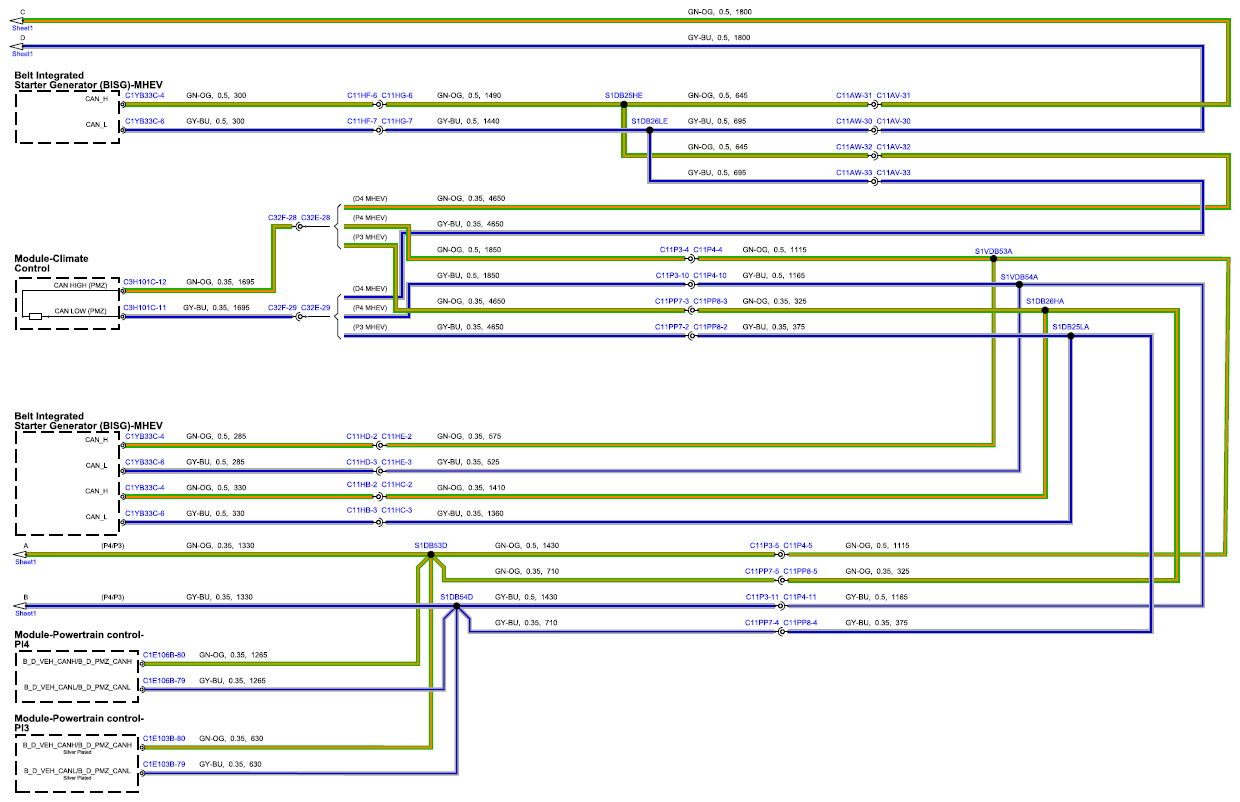

Fig 2: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

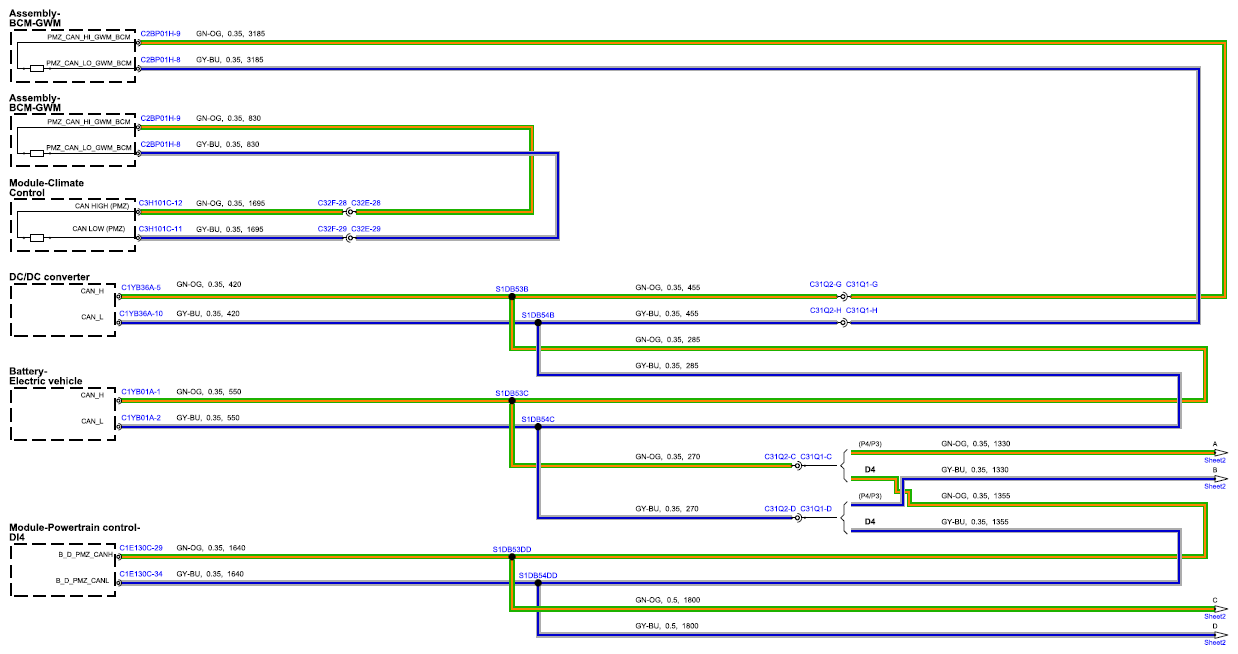

Fig 3: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
