CAN bus - High speed - Chassis systems

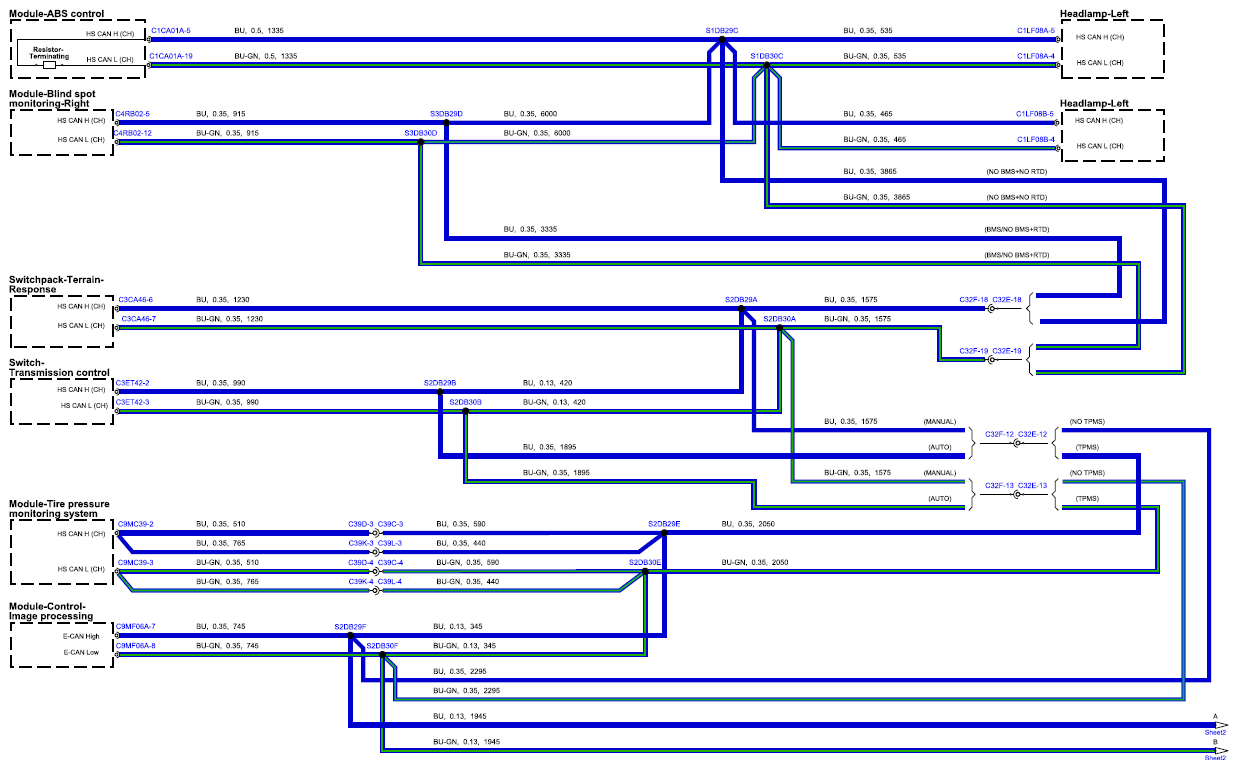

Fig 1: CAN Bus - High Speed - Chassis Systems Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

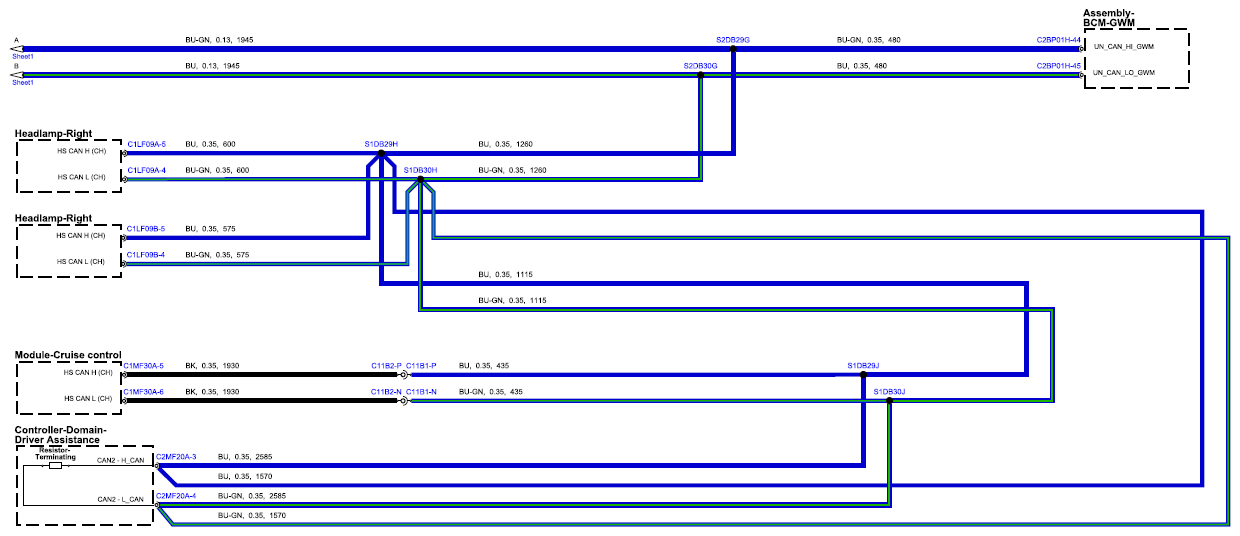

Fig 2: CAN Bus - High Speed - Chassis Systems Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
