OEM Wiring Diagrams -- E-Pace X540
>>
418-00 Module Communications Network
>>
CAN bus - High speed - Body systems
CAN bus - High speed - Body systems

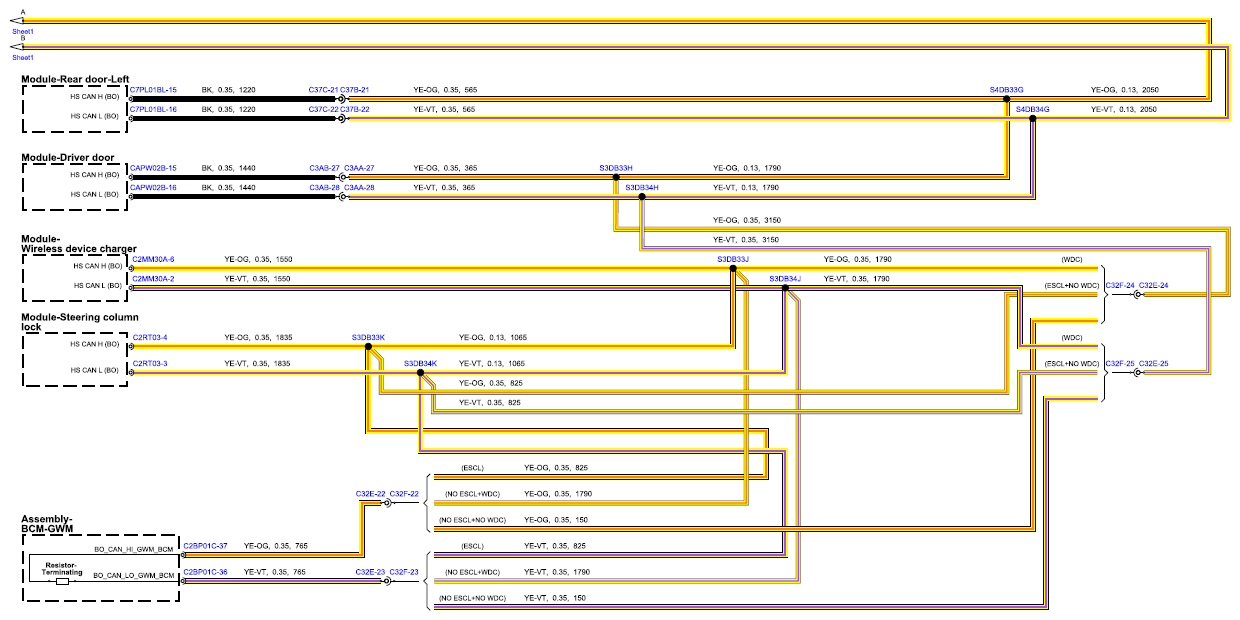

Fig 1: CAN Bus - High Speed - Body Systems Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

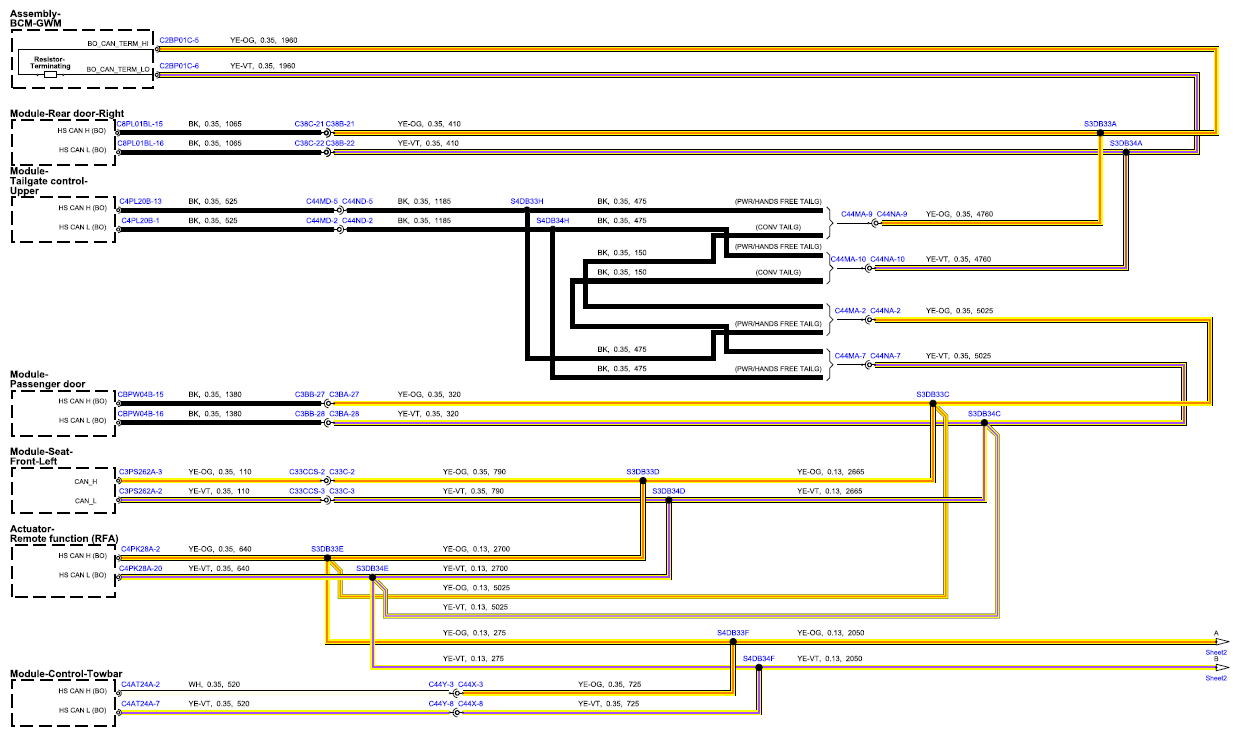

Fig 2: CAN Bus - High Speed - Body Systems Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
