417-02 Interior Lighting: Notes

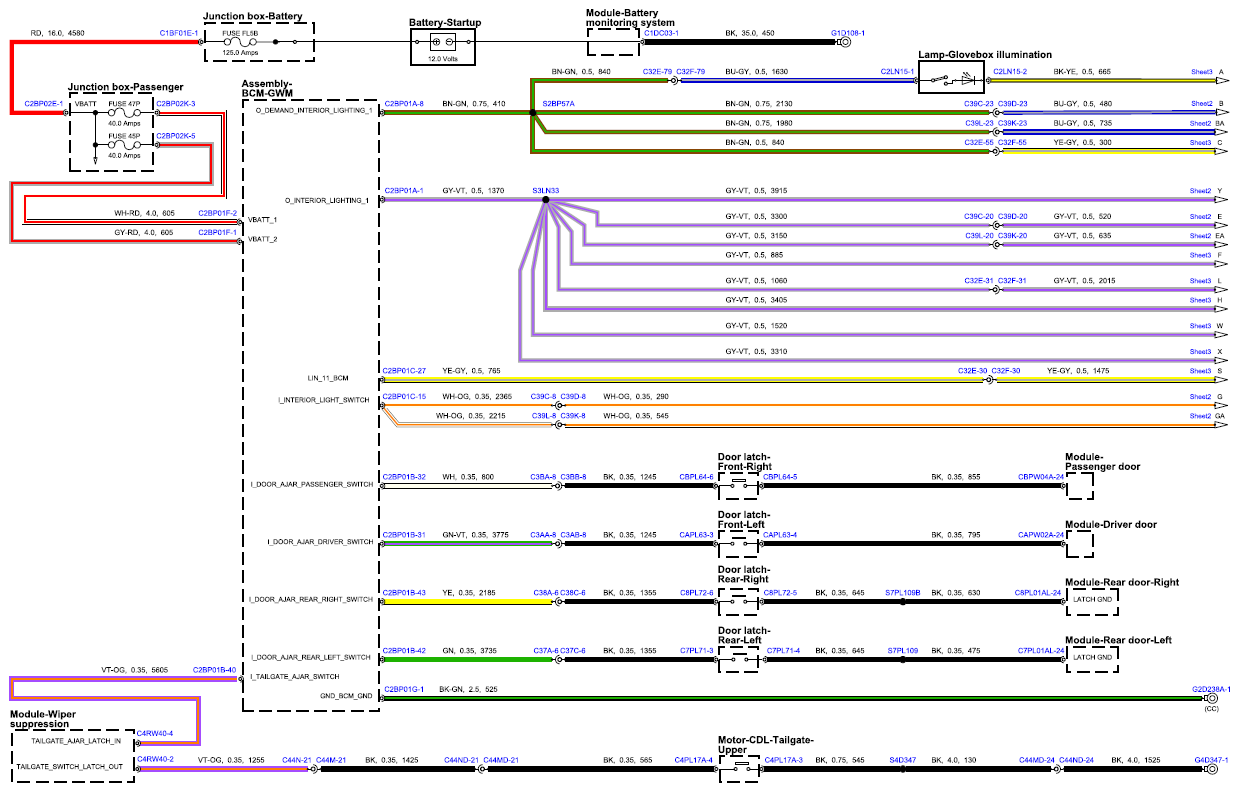

Fig 1: Interior Lighting Circuit Diagram - Sheet 1
G15669425Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

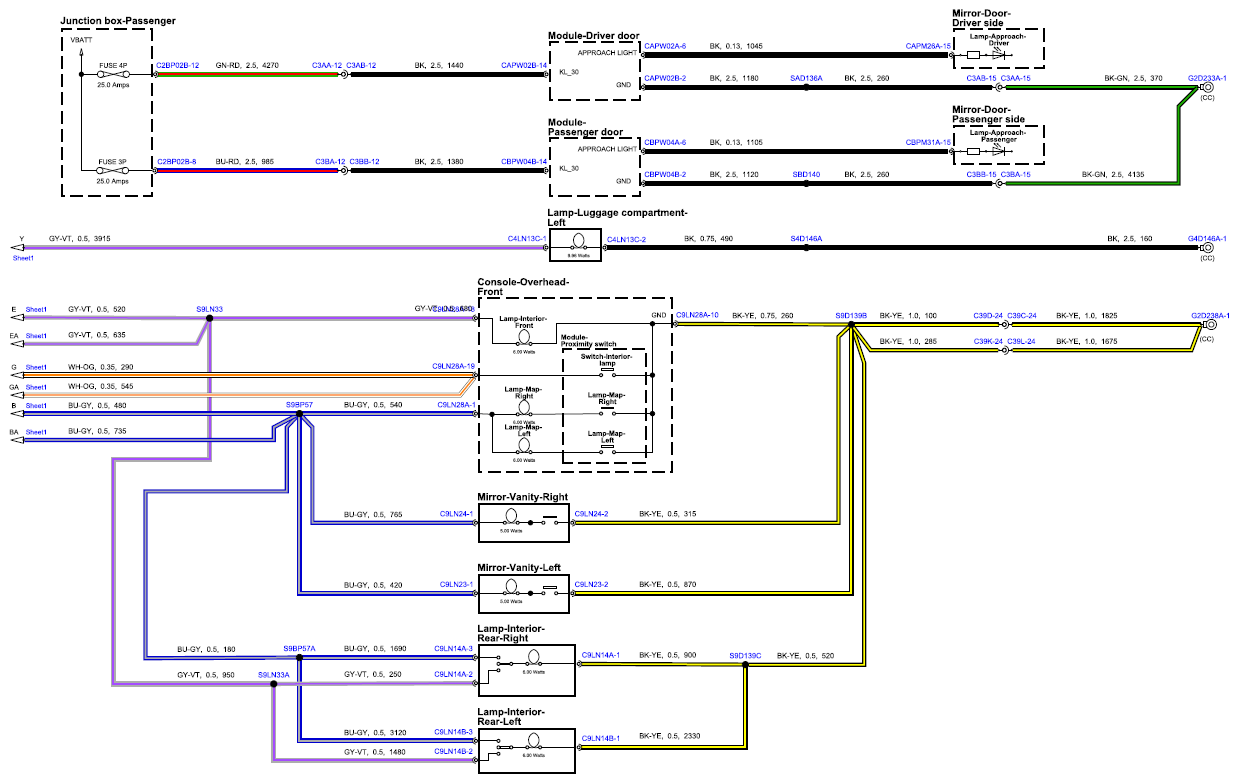

Fig 2: Interior Lighting Circuit Diagram - Sheet 2
G15669426Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

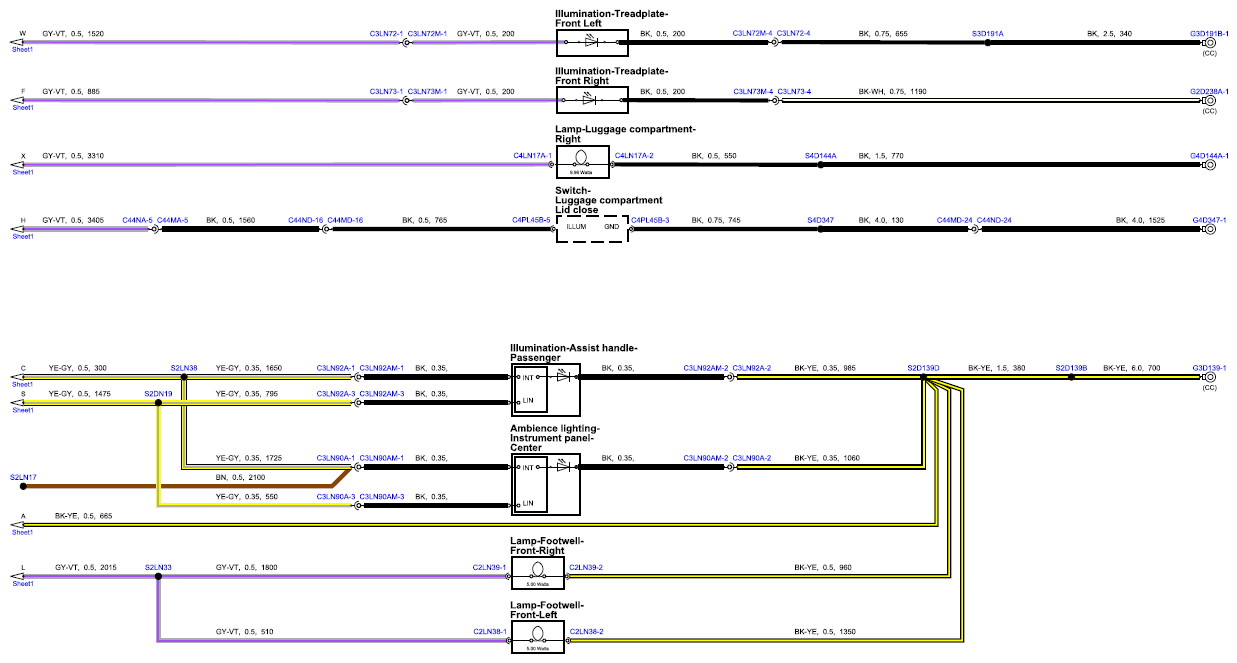

Fig 3: Interior Lighting Circuit Diagram - Sheet 3
G15669427Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
