OEM Wiring Diagrams -- E-Pace X540
>>
417-02 Interior Lighting
>>
Configurable ambience lighting
Configurable ambience lighting

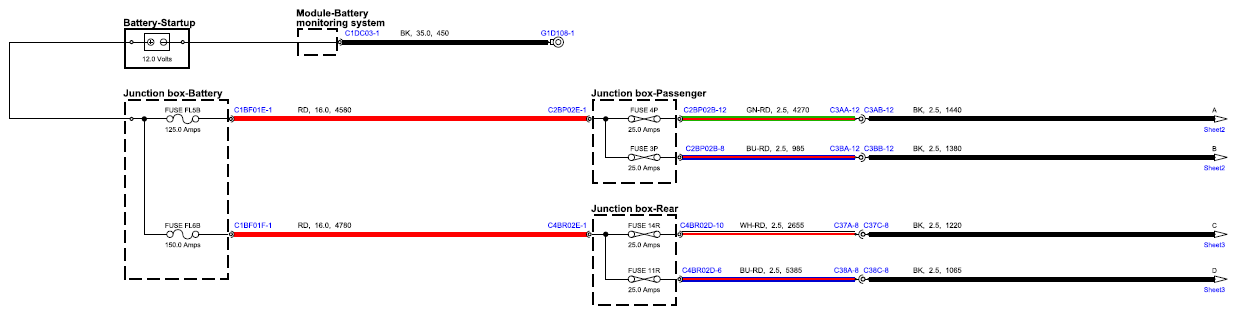

Fig 1: Configurable Ambience Lighting Circuit Diagram - Sheet 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

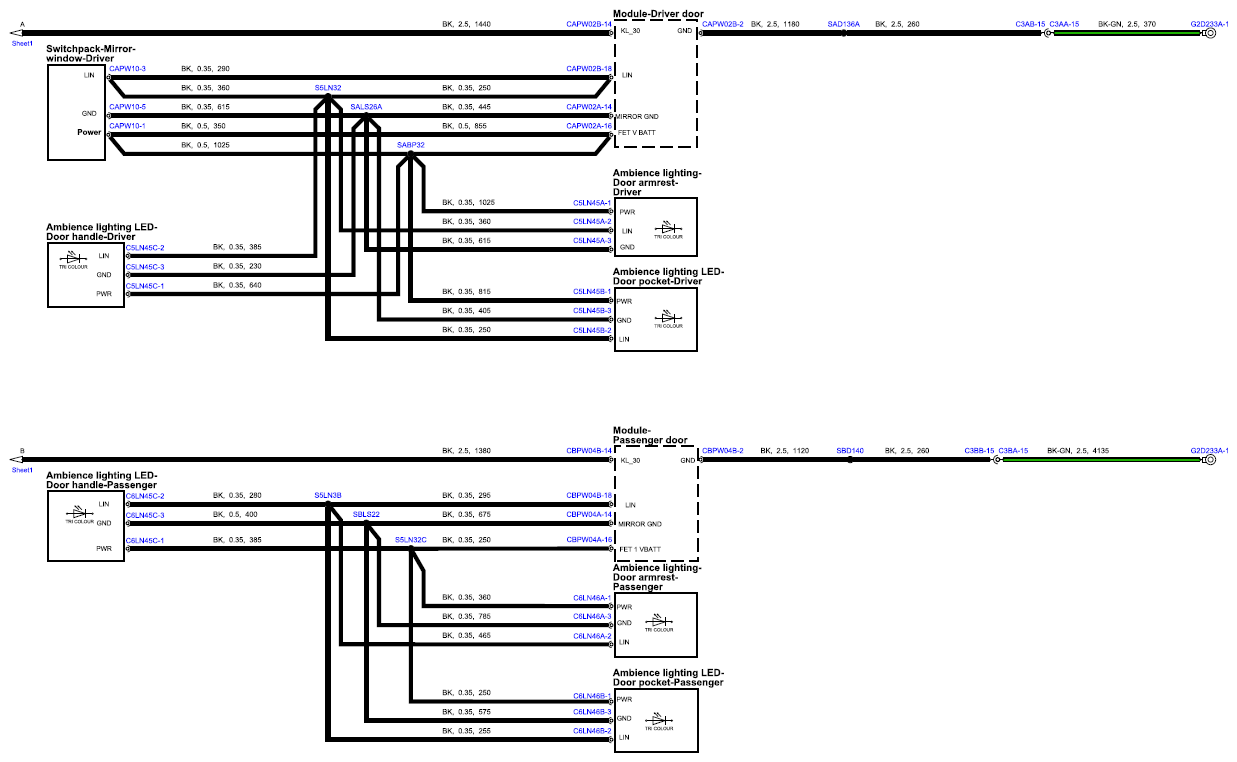

Fig 2: Configurable Ambience Lighting Circuit Diagram - Sheet 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

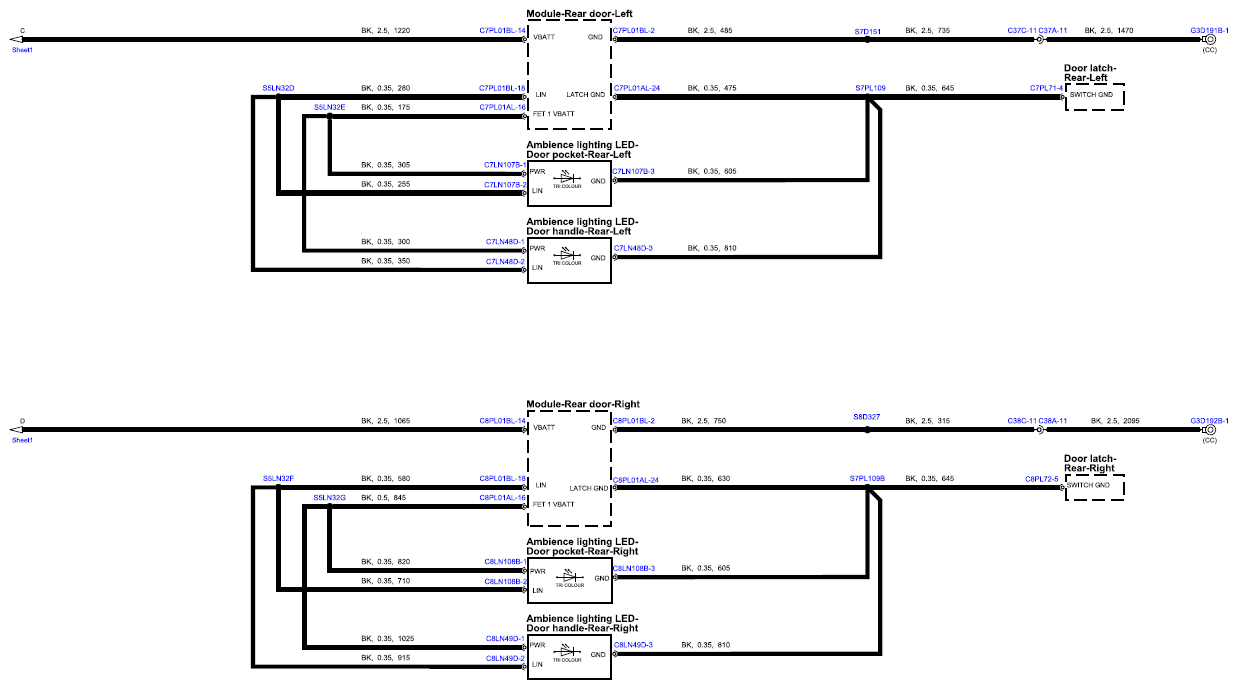

Fig 3: Configurable Ambience Lighting Circuit Diagram - Sheet 3
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
