415-00 Information And Entertainment System: Notes

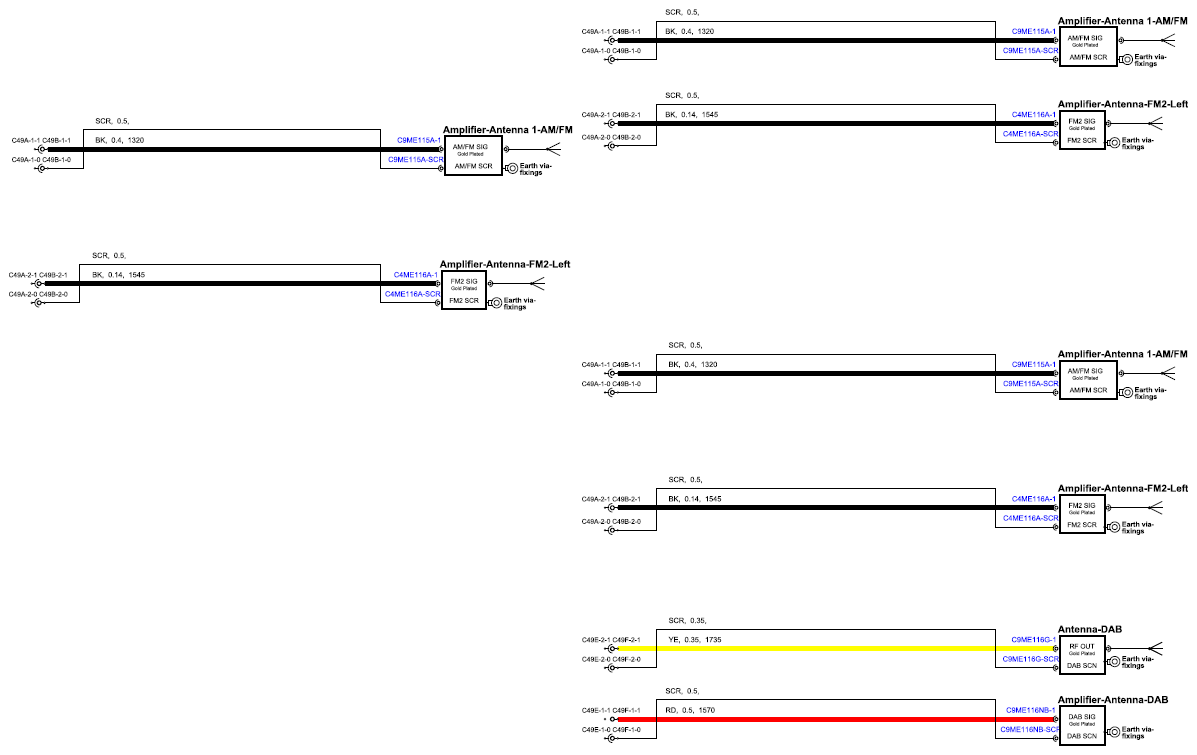

Fig 1: Information And Entertainment System Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

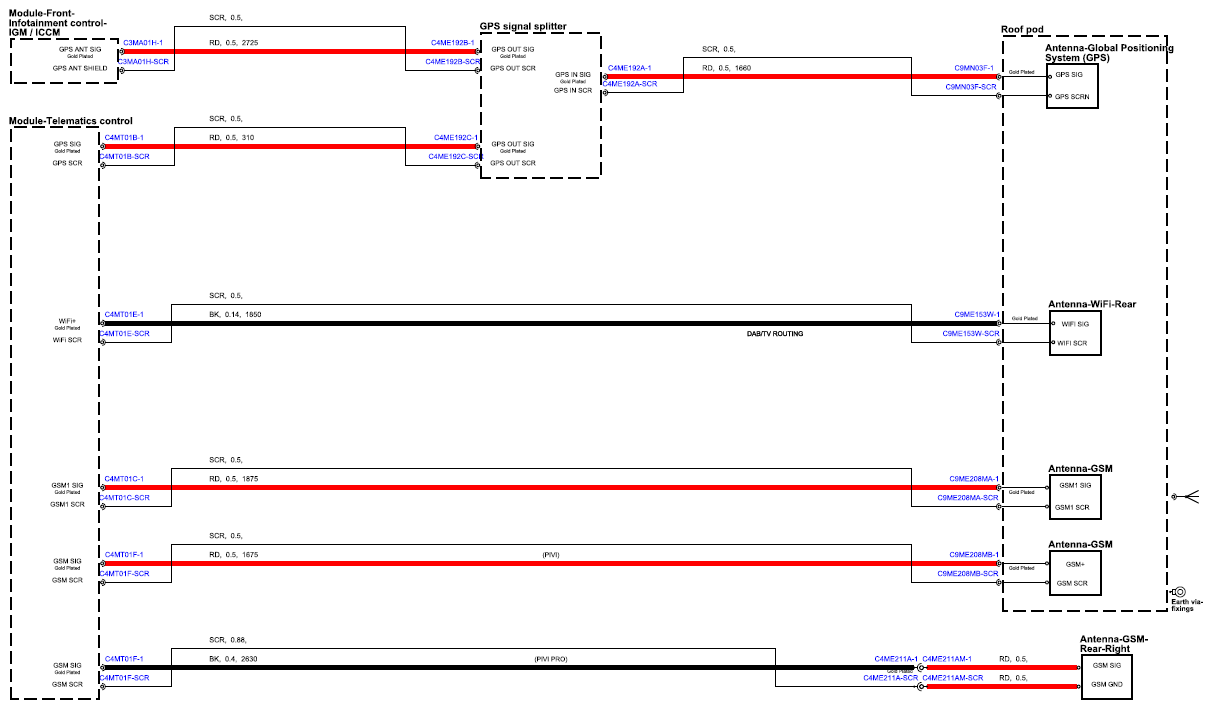

Fig 2: Information And Entertainment System Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

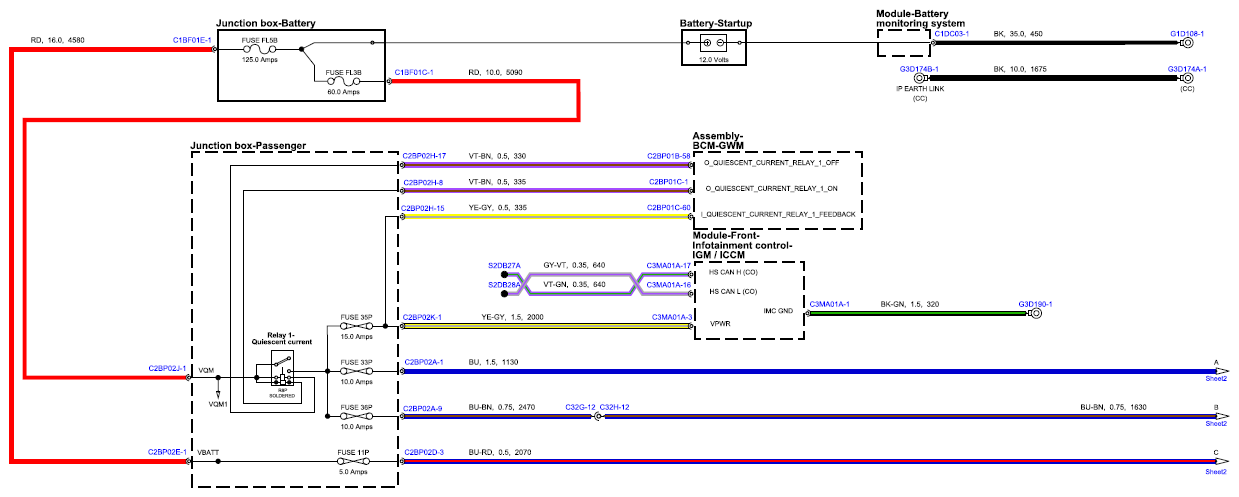

Fig 3: Information And Entertainment System Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

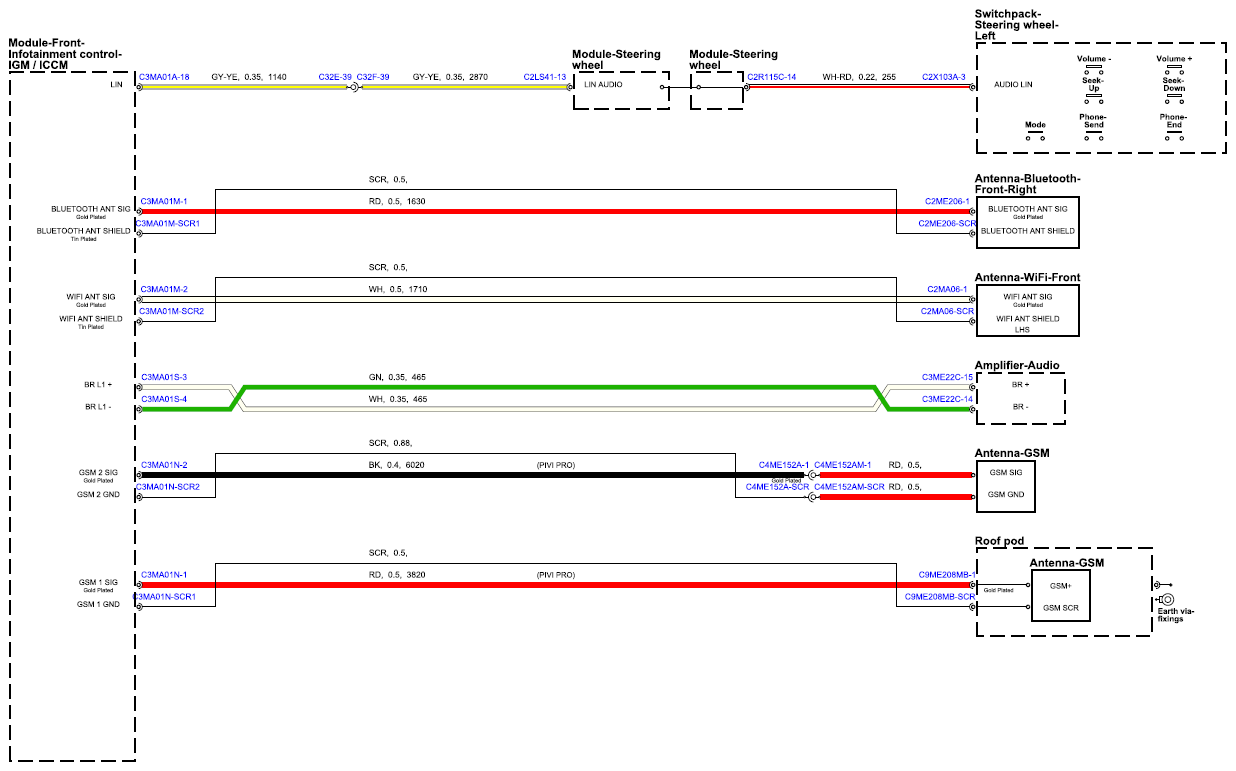

Fig 4: Information And Entertainment System Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 5: Information And Entertainment System Circuit Diagram - Sheet 5

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 6: Information And Entertainment System Circuit Diagram - Sheet 6

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
