8-Speaker system

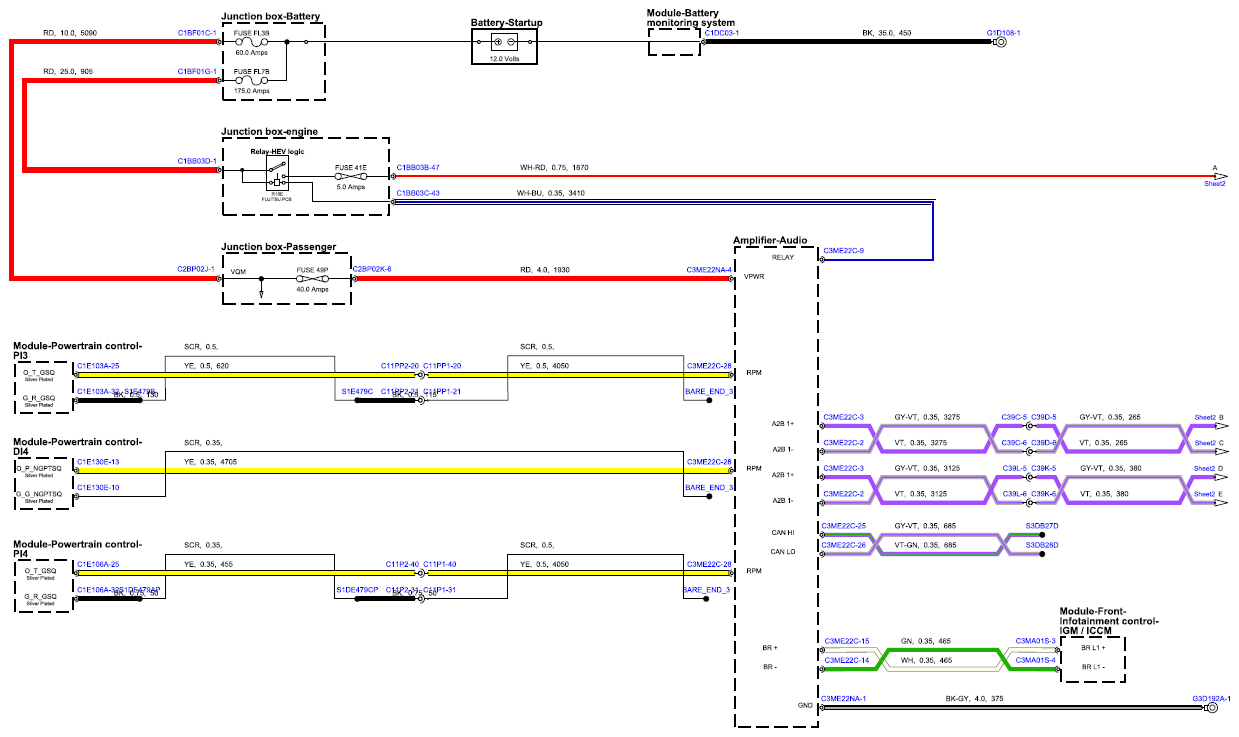

Fig 1: 8-Speaker System Circuit Diagram - Sheet 1
G15669410Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

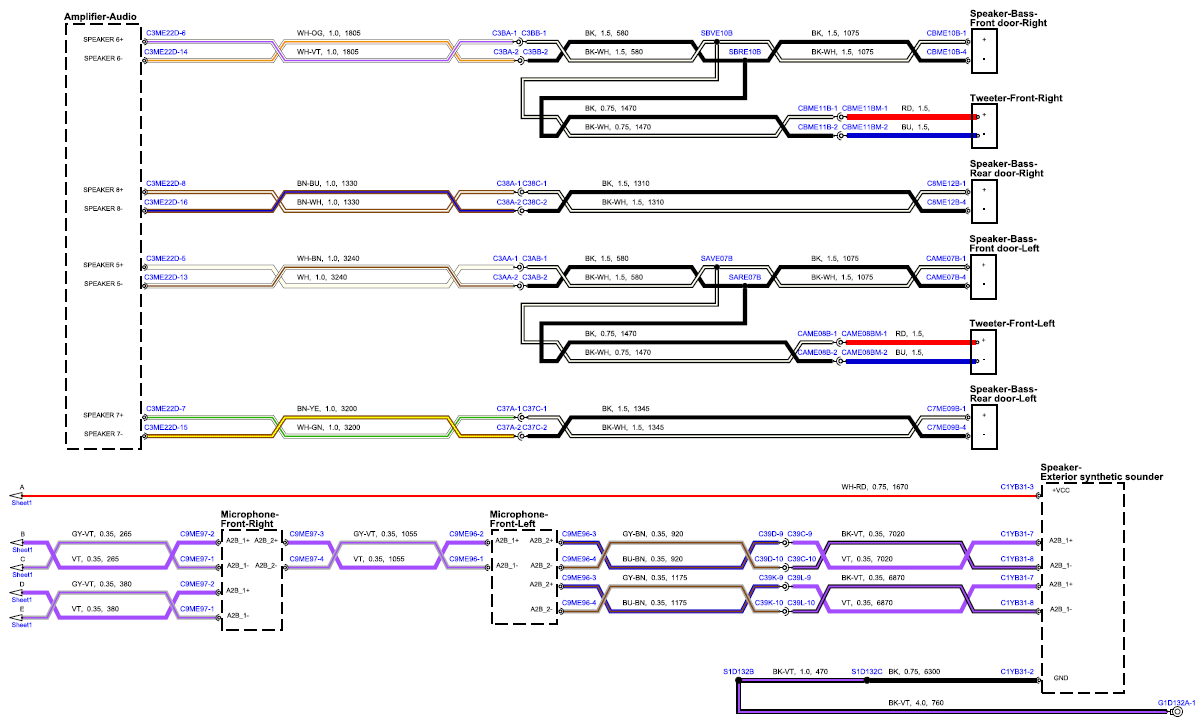

Fig 2: 8-Speaker System Circuit Diagram - Sheet 2
G15669411Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
