414-02 Generator And Regulator: Pi4

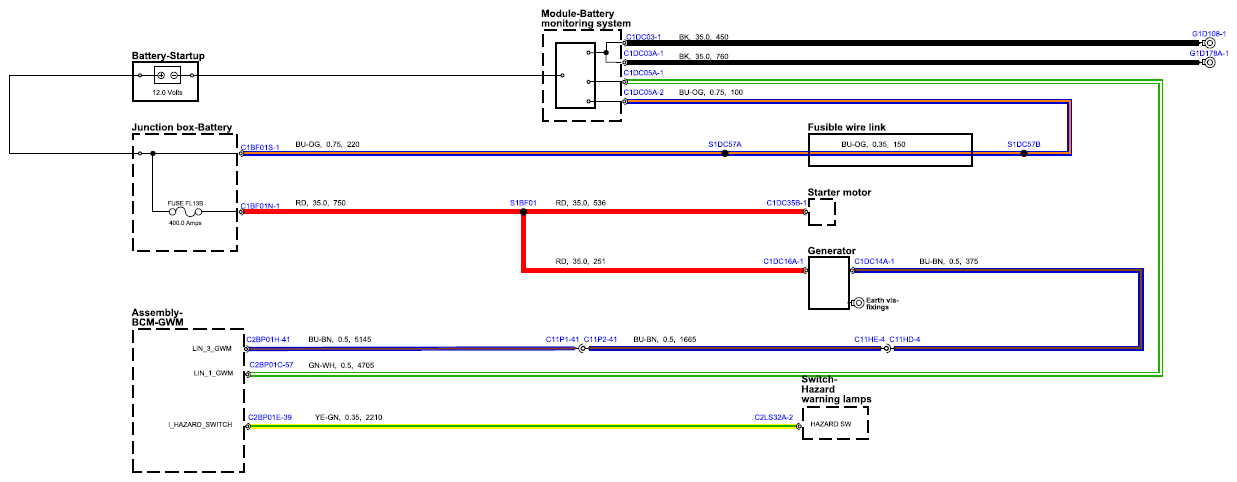

Fig 1: Generator And Regulator Circuit Diagram - PI4

G15669403

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
