414-02 Generator And Regulator: Di4

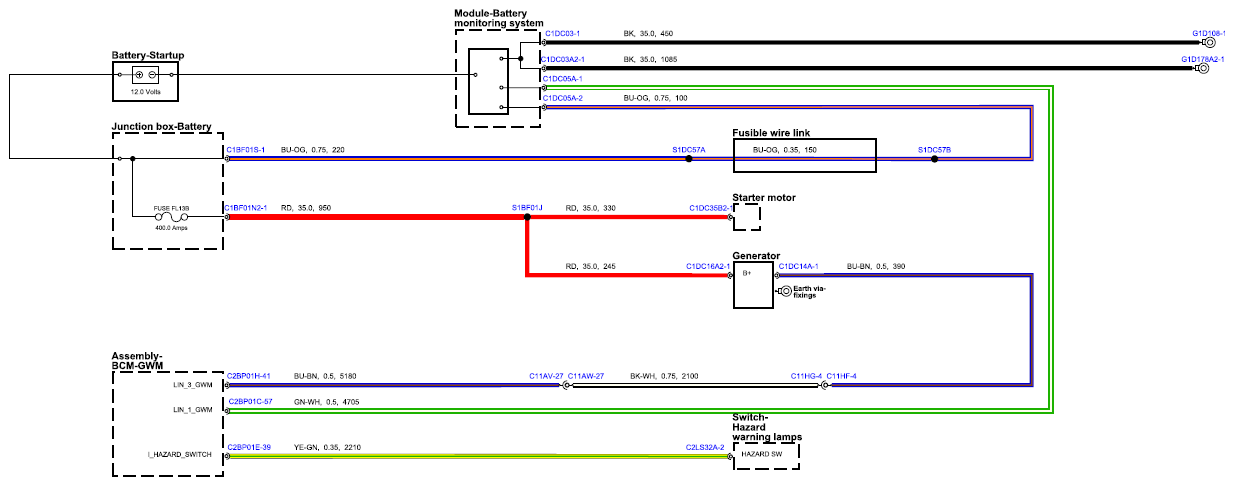

Fig 1: Generator And Regulator Circuit Diagram - DI4

G15669402

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
