414-01C Battery, Mounting And Cables (PHEV): Pi3

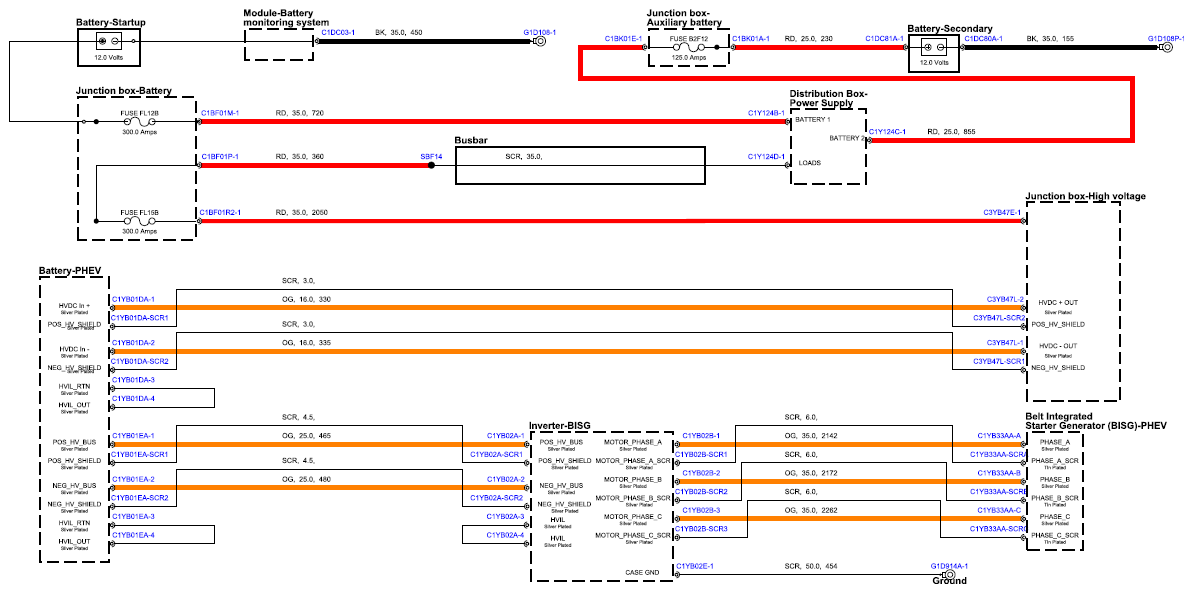

Fig 1: Battery, Mounting And Cables (PHEV) Circuit Diagram - PI3

G15669384

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
