OEM Wiring Diagrams -- E-Pace X540
>>
414-01C Battery, Mounting And Cables (PHEV)
>>
Battery junction box - PI3
Battery junction box - PI3

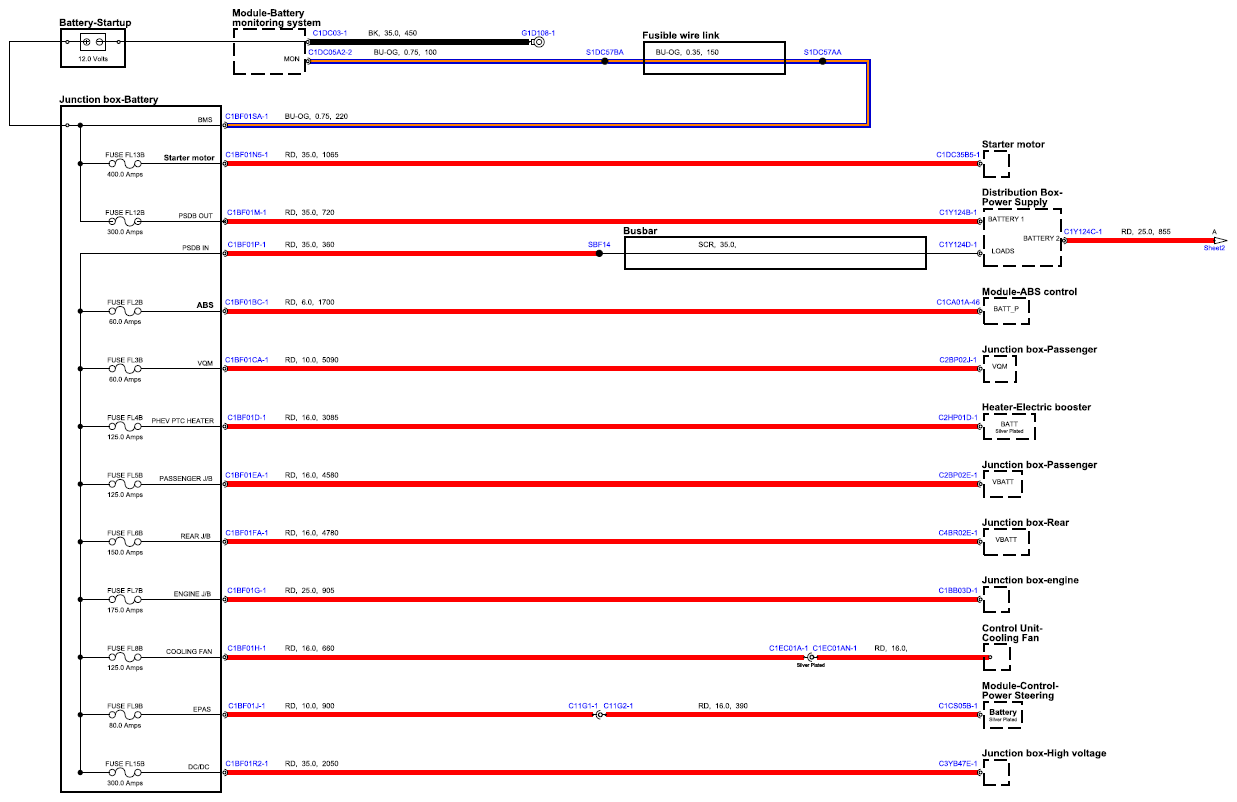

Fig 1: Battery Junction Box Circuit Diagram - PI3 (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

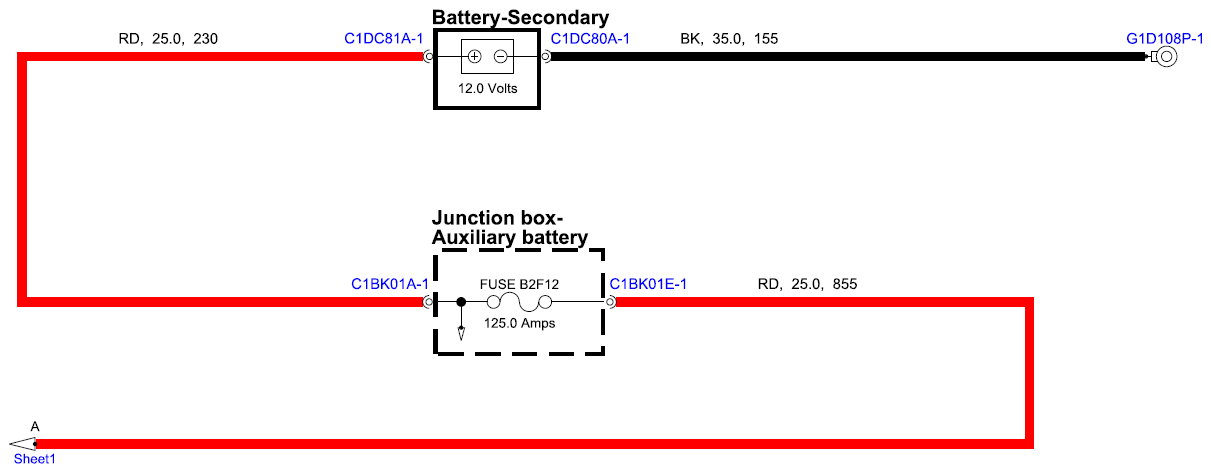

Fig 2: Battery Junction Box Circuit Diagram - PI3 (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
