414-01B Battery, Mounting And Cables (MHEV): Pi4

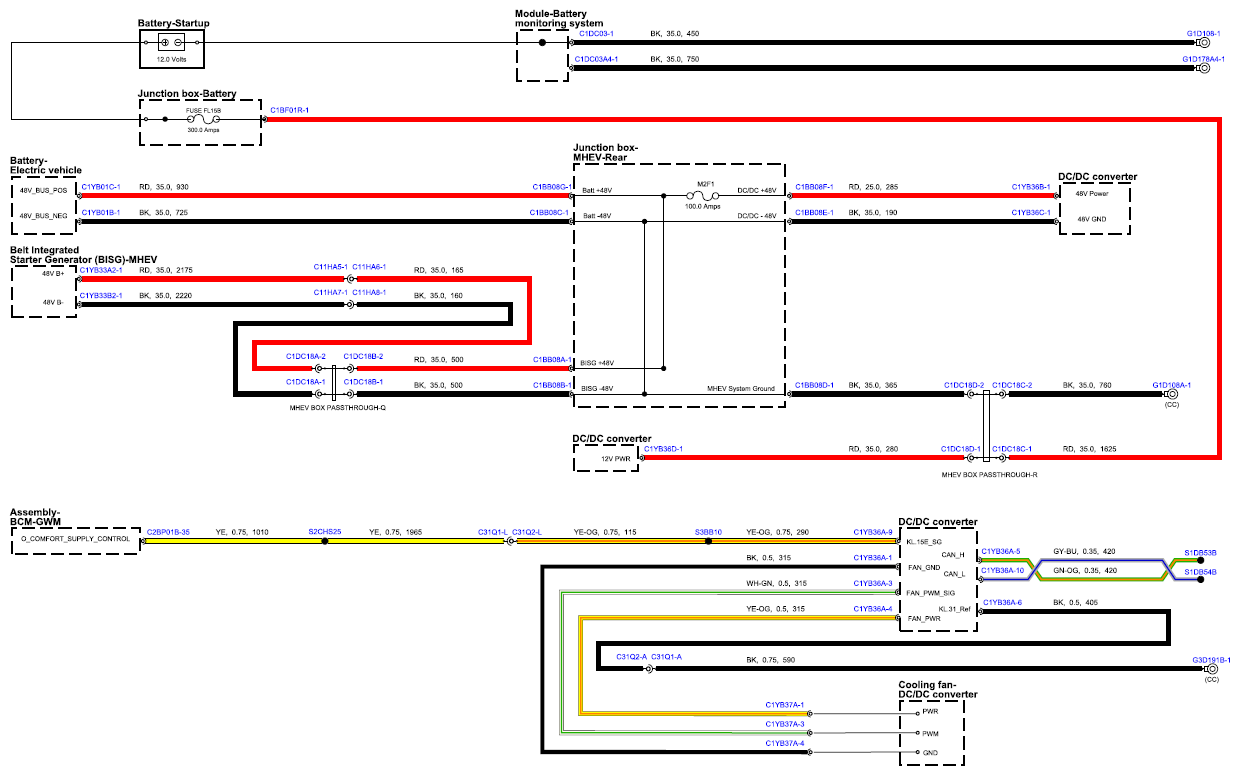

Fig 1: 48V Power Distribution Circuit Diagram - PI4

G15669383

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
