414-01B Battery, Mounting And Cables (MHEV): Di4

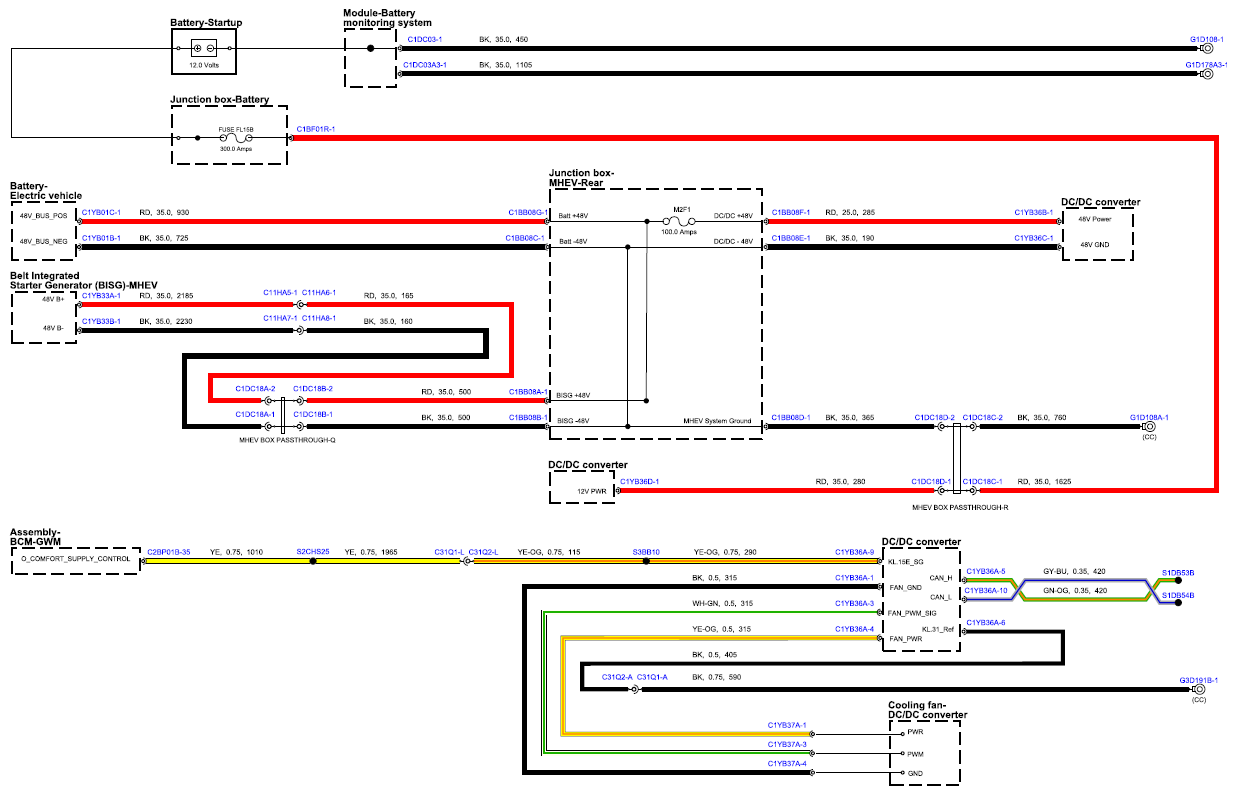

Fig 1: Battery Junction Box Circuit Diagram - DI4 (Sheet 1)

G15669375

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
