48V Power distribution (PI3)

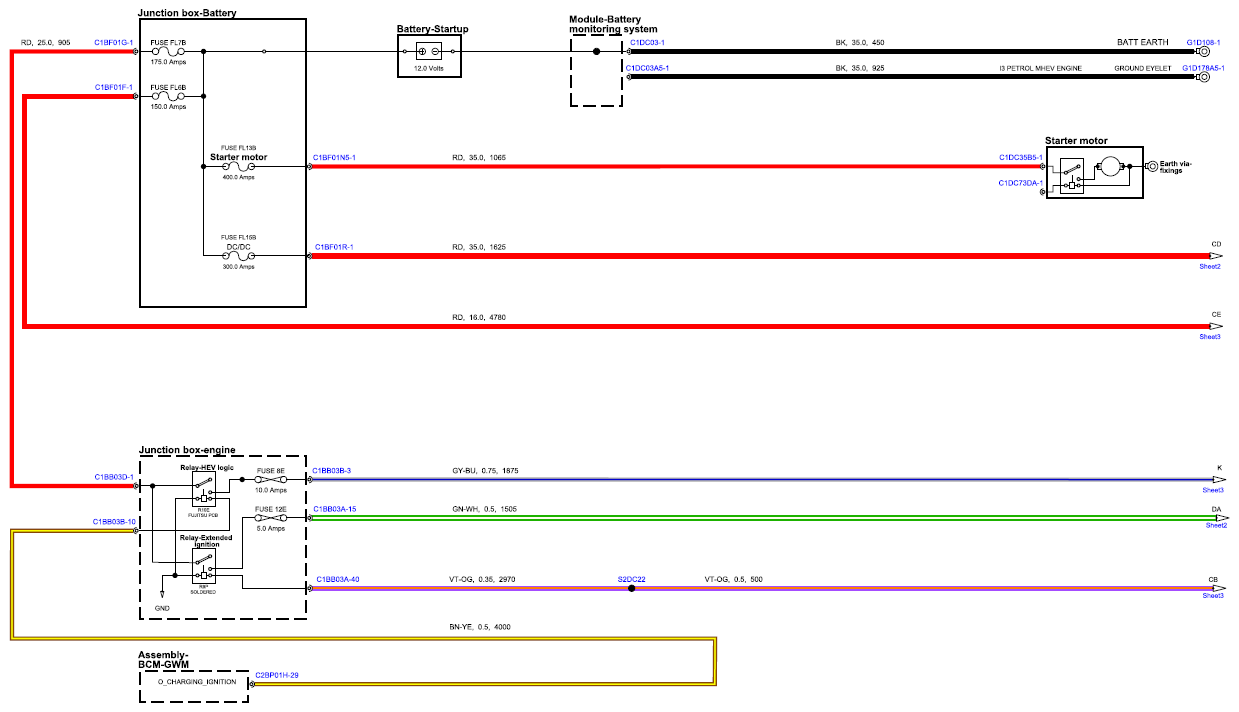

Fig 1: 48V Power Distribution Circuit Diagram - PI3 (Sheet 1)
G15669380Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

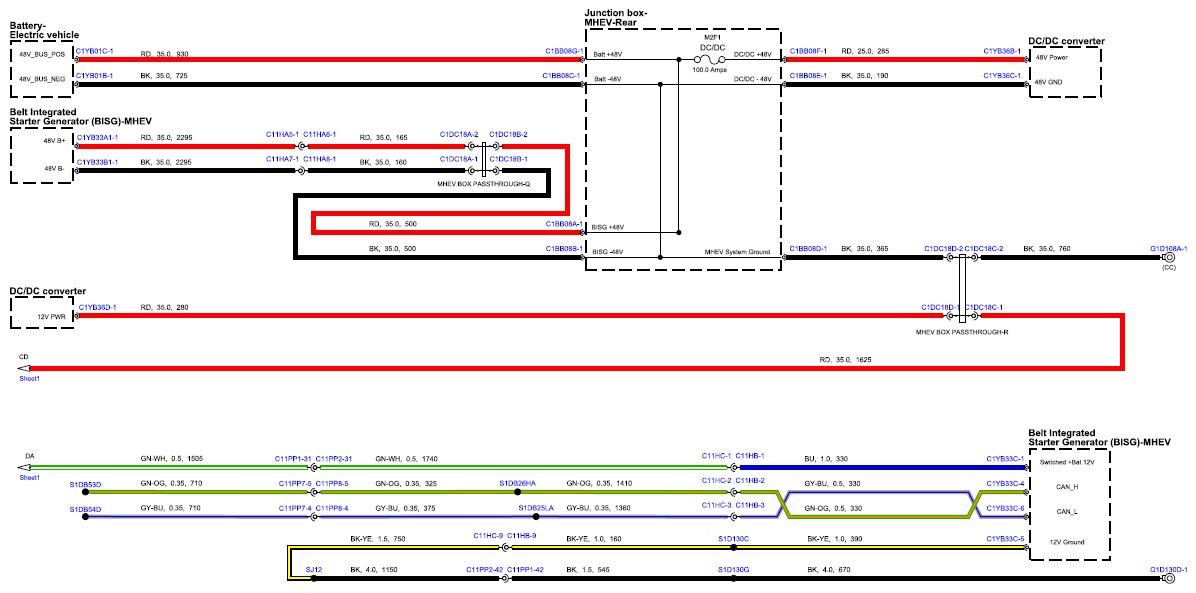

Fig 2: 48V Power Distribution Circuit Diagram - PI3 (Sheet 2)
G15669381Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

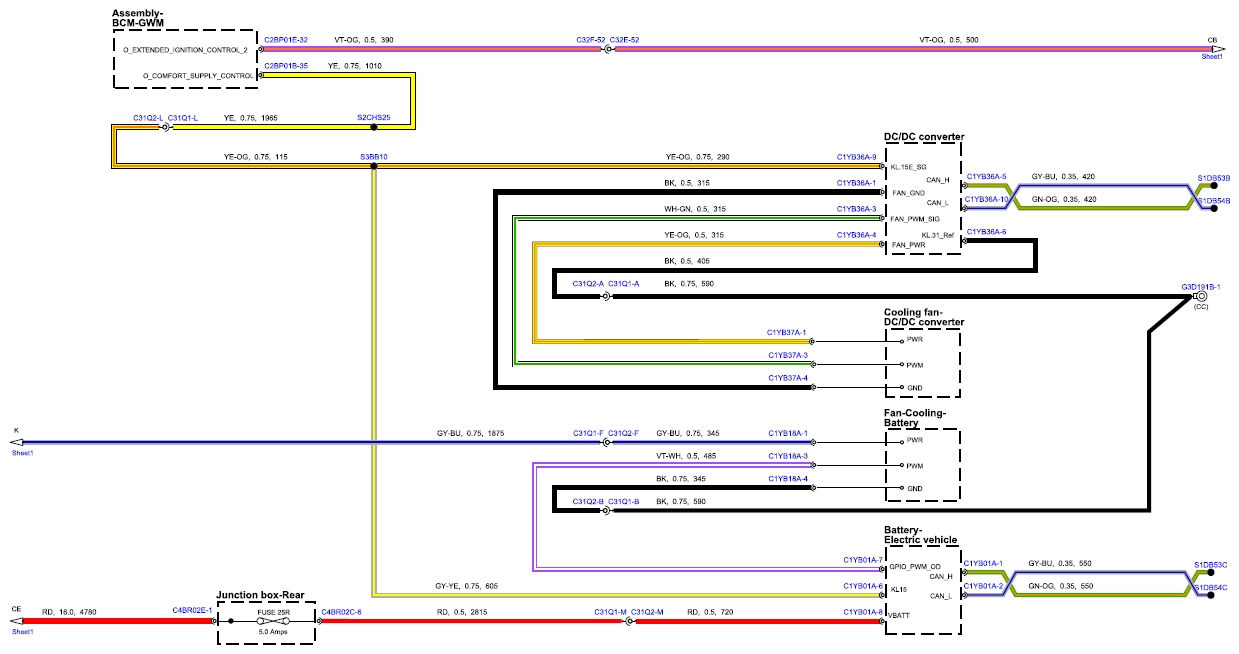

Fig 3: 48V Power Distribution Circuit Diagram - PI3 (Sheet 3)
G15669382Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
