Ground distribution

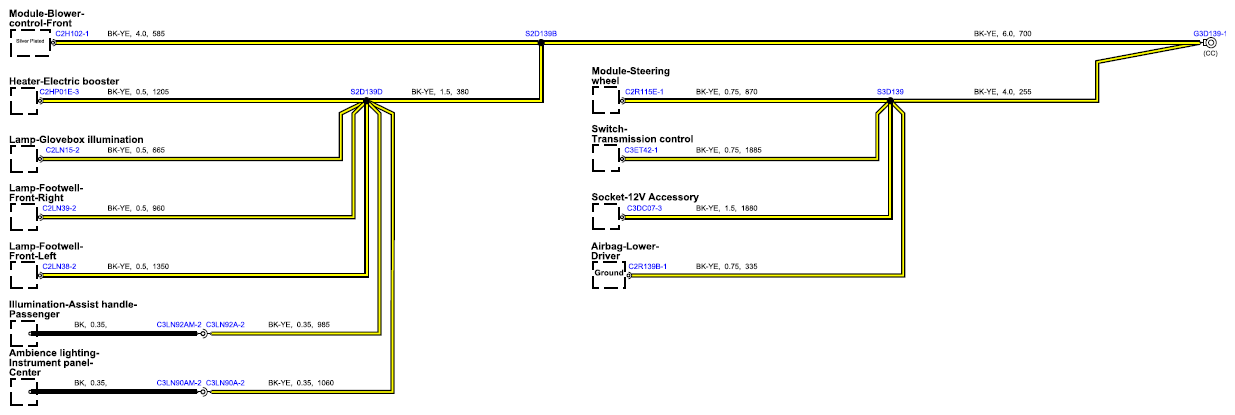

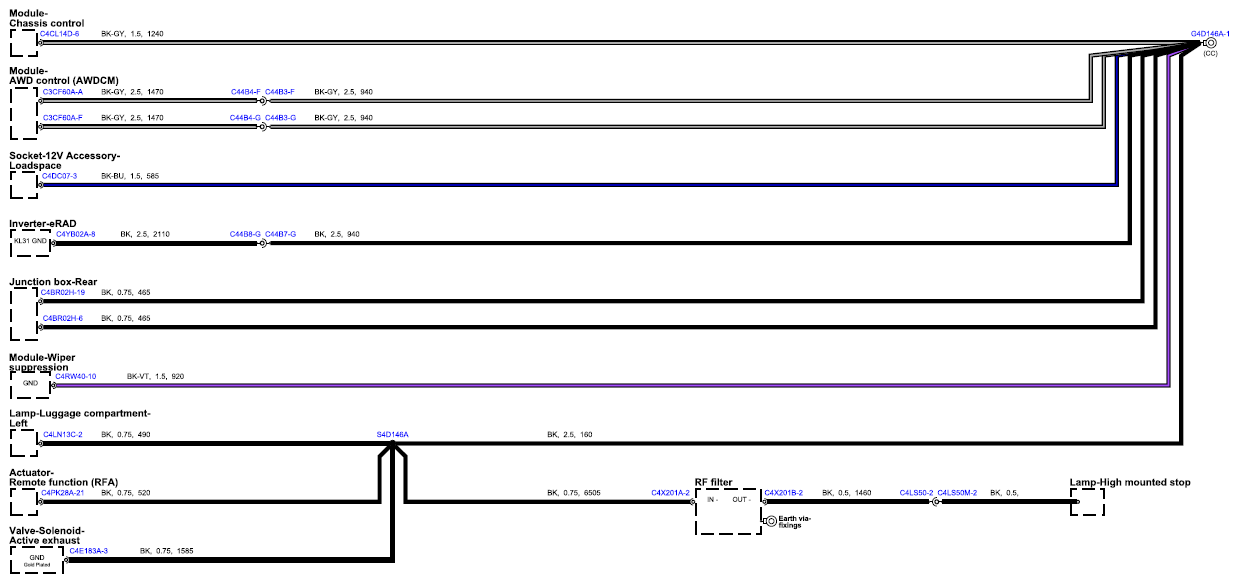

Fig 1: Ground Distribution Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

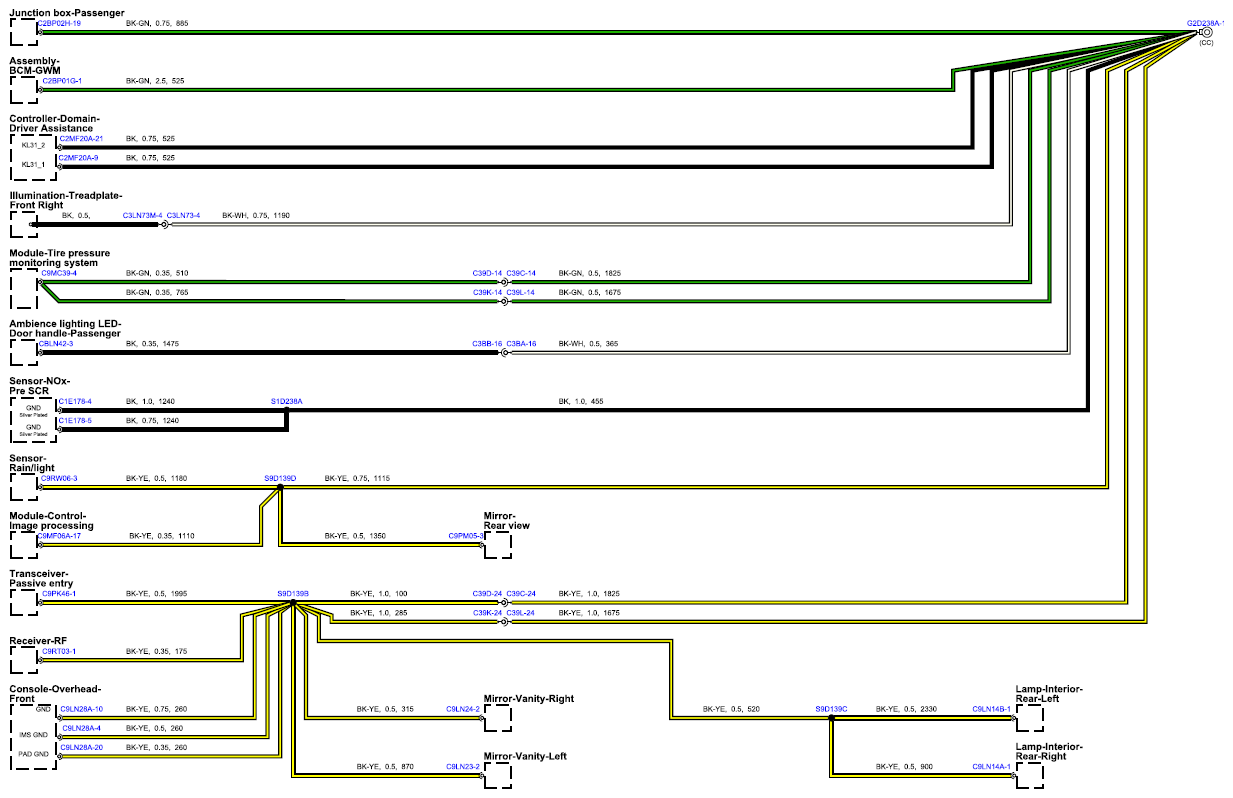

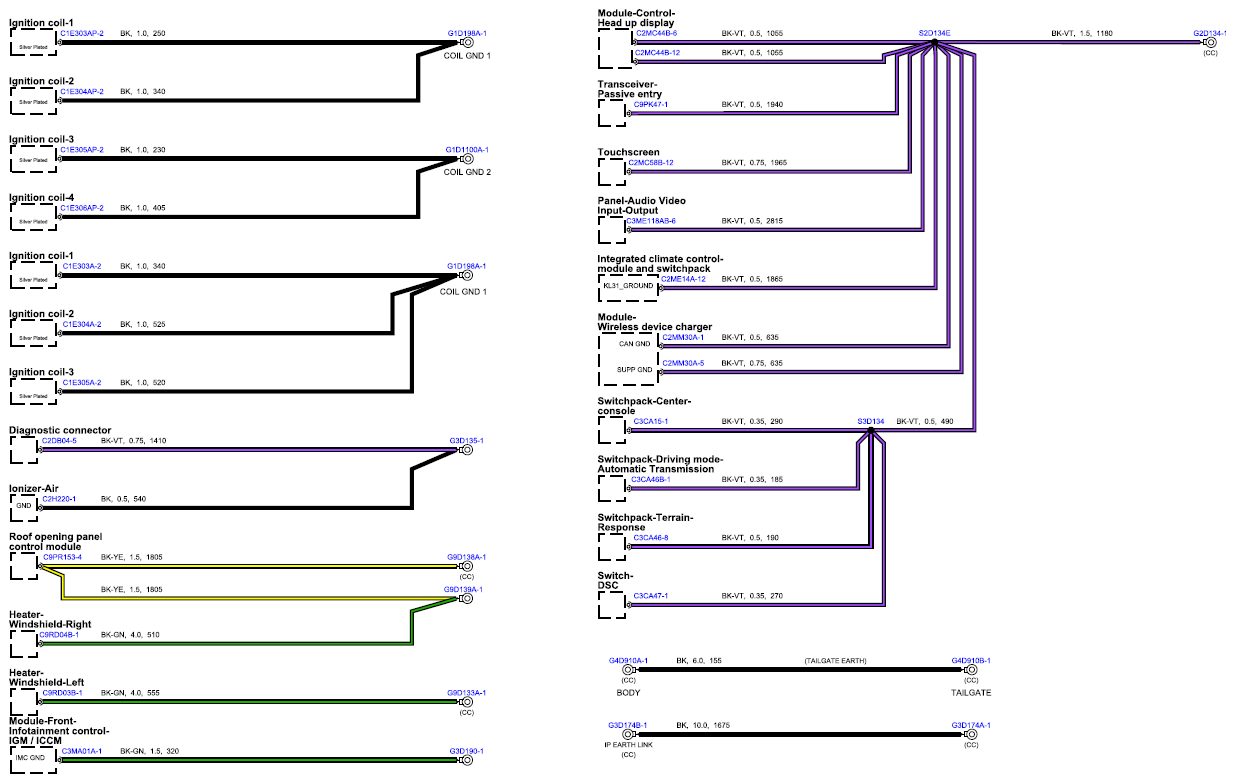

Fig 2: Ground Distribution Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

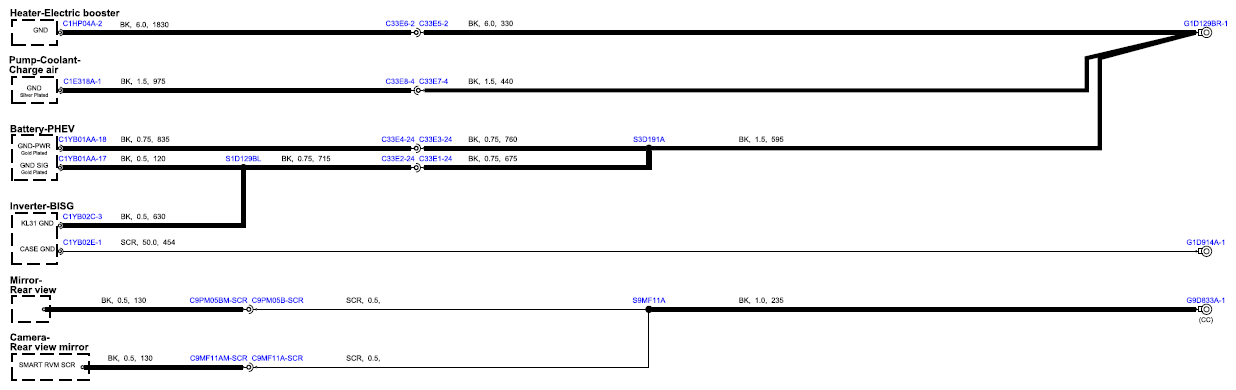

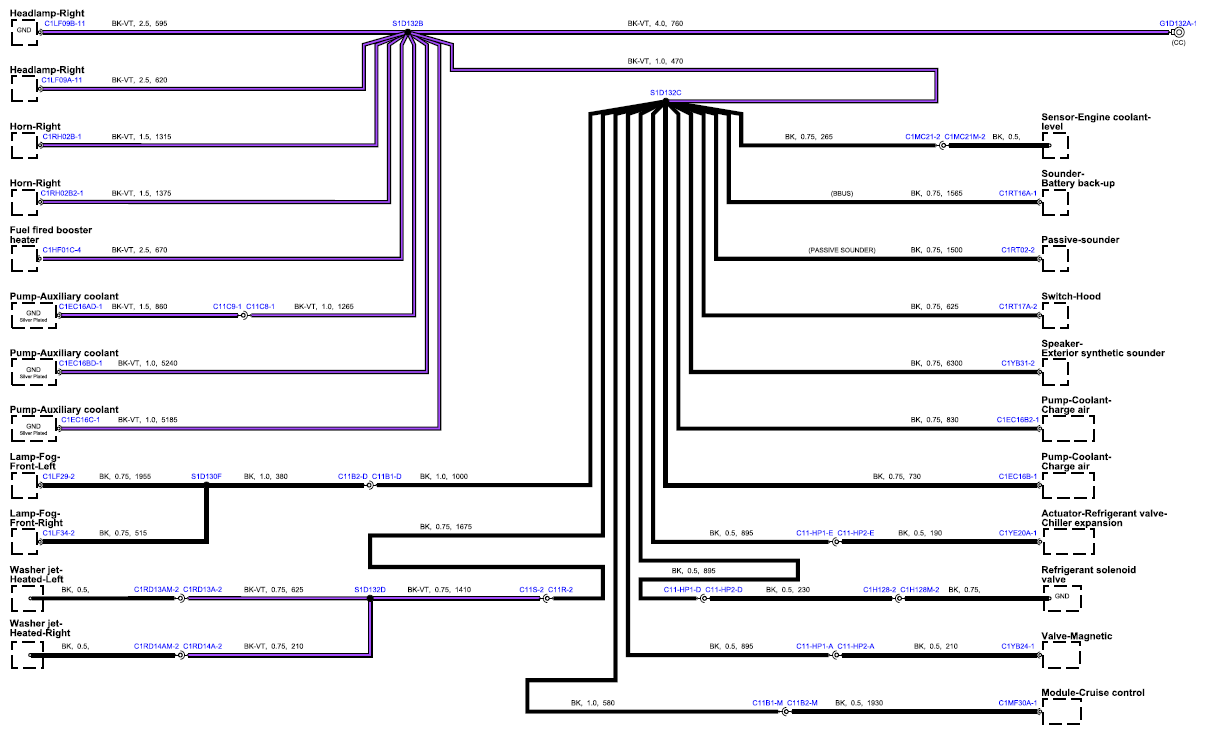

Fig 3: Ground Distribution Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

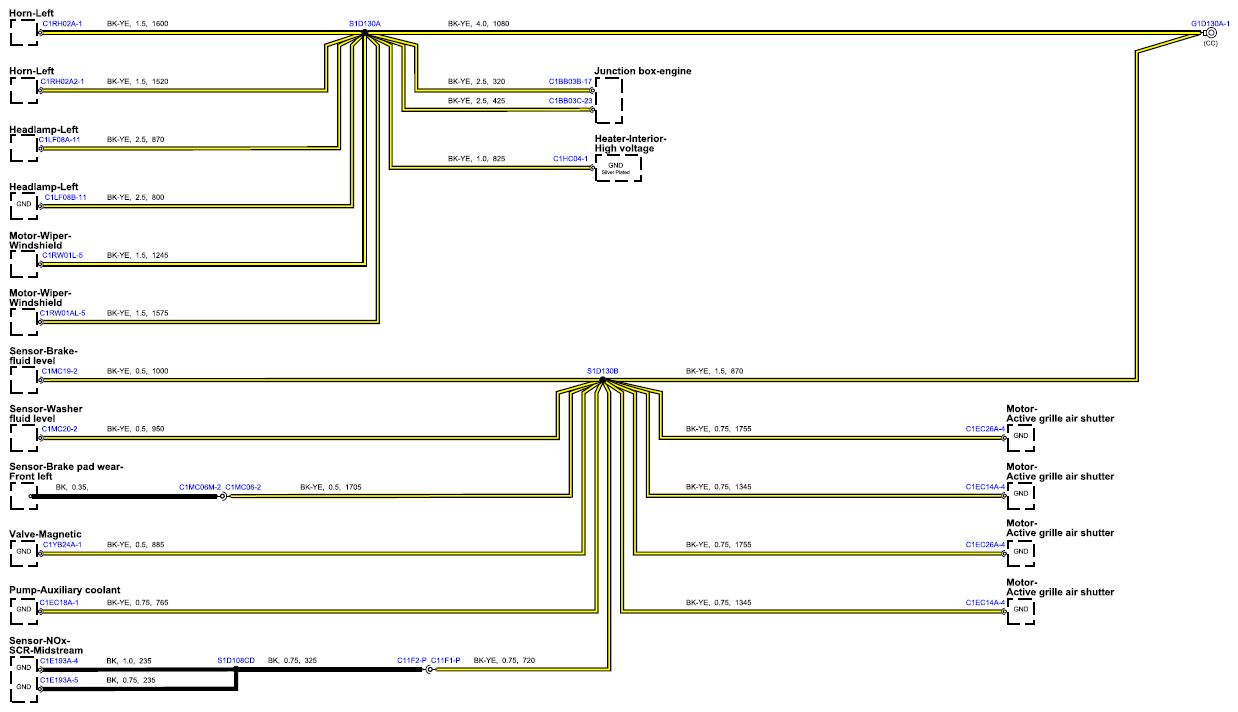

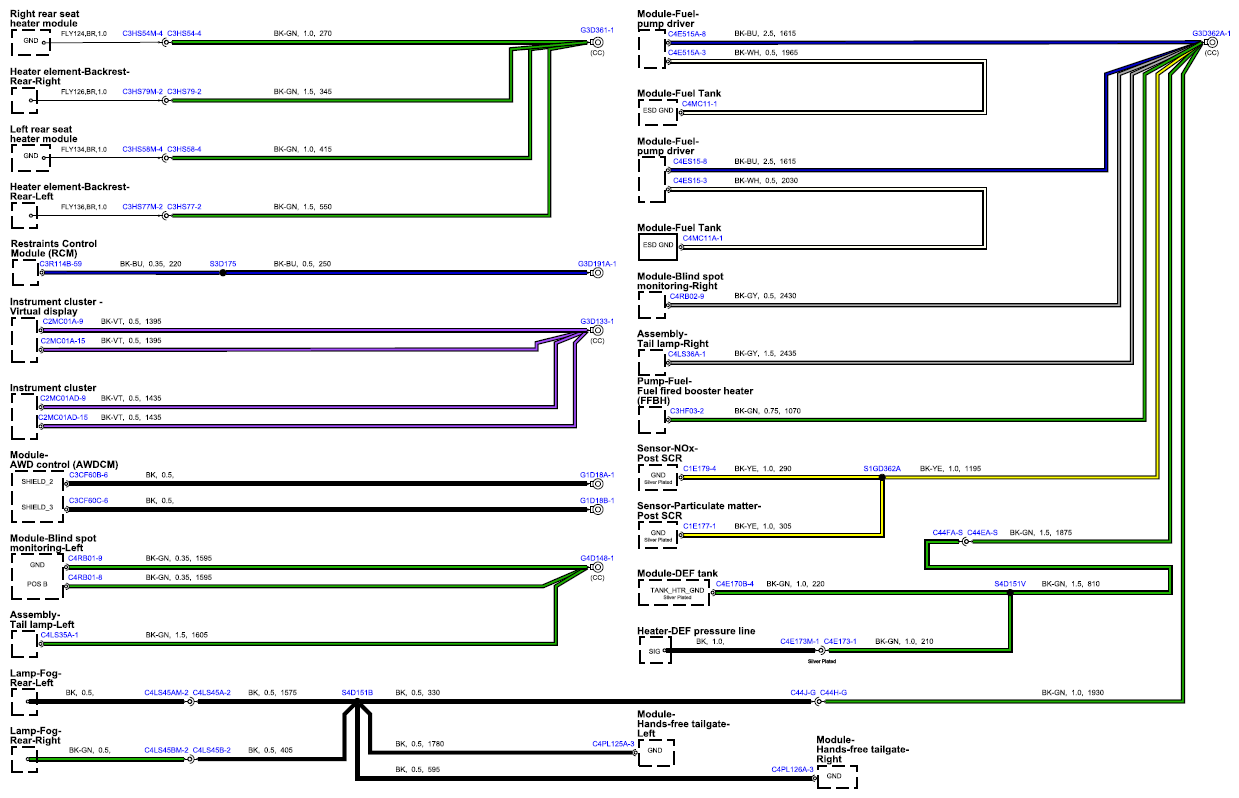

Fig 4: Ground Distribution Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

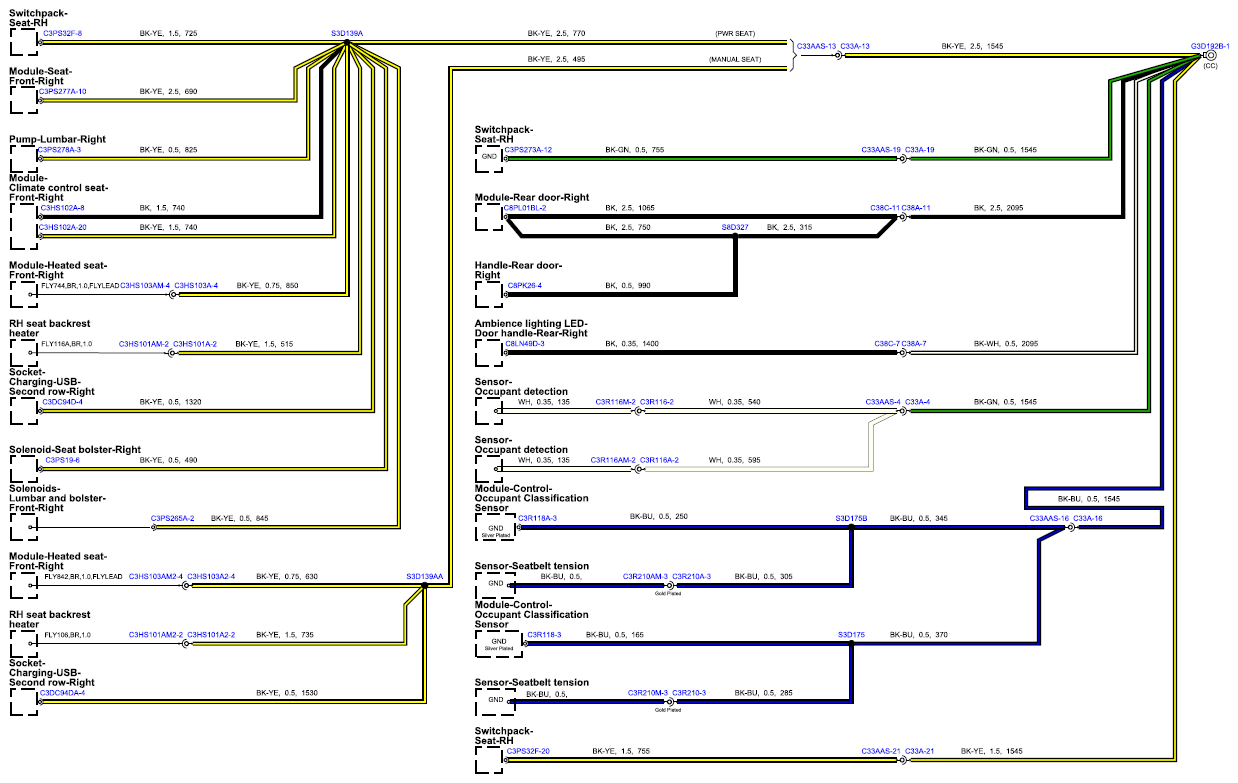

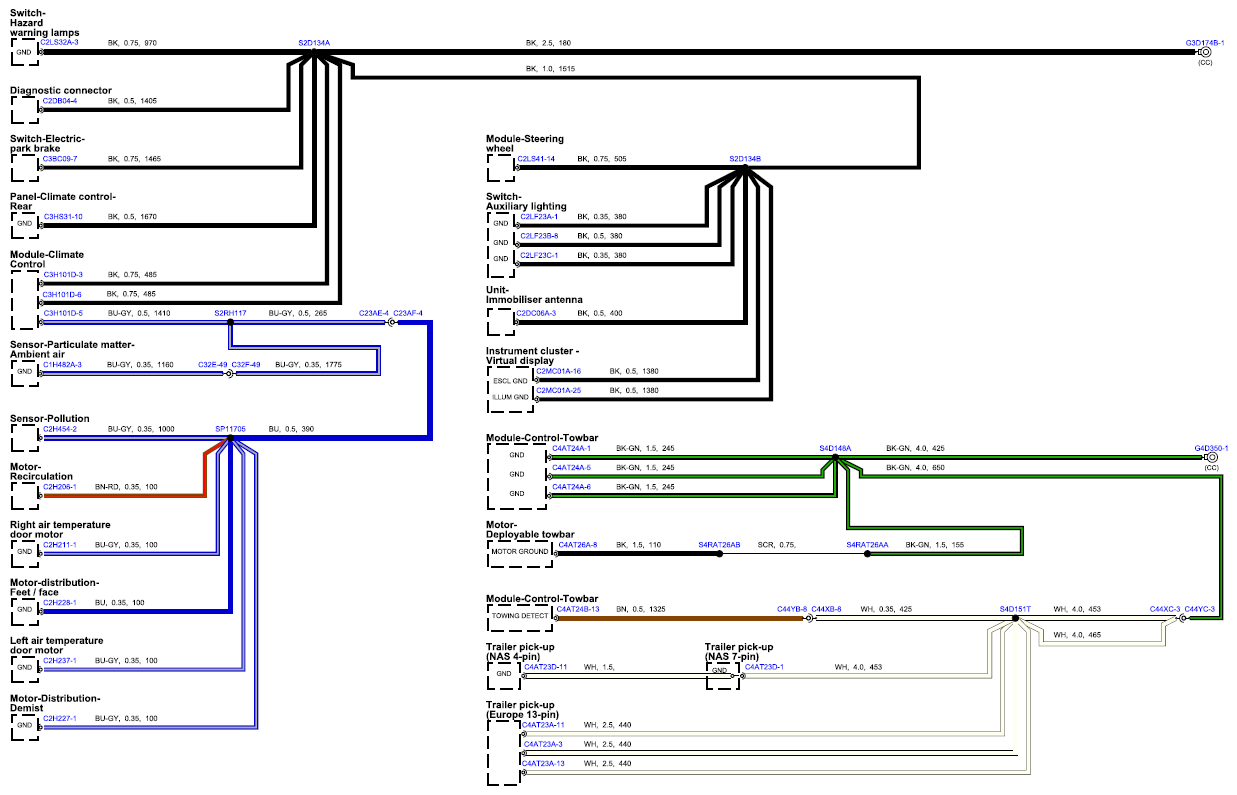

Fig 5: Ground Distribution Circuit Diagram - Sheet 5

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

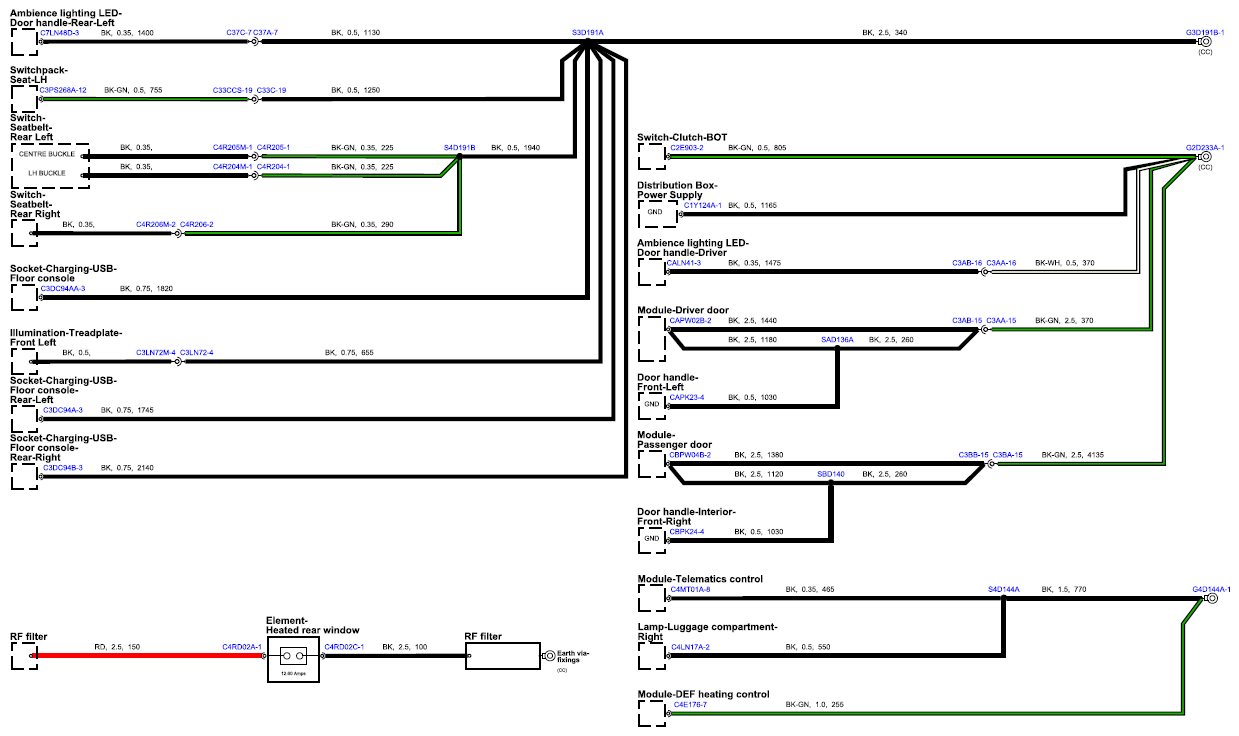

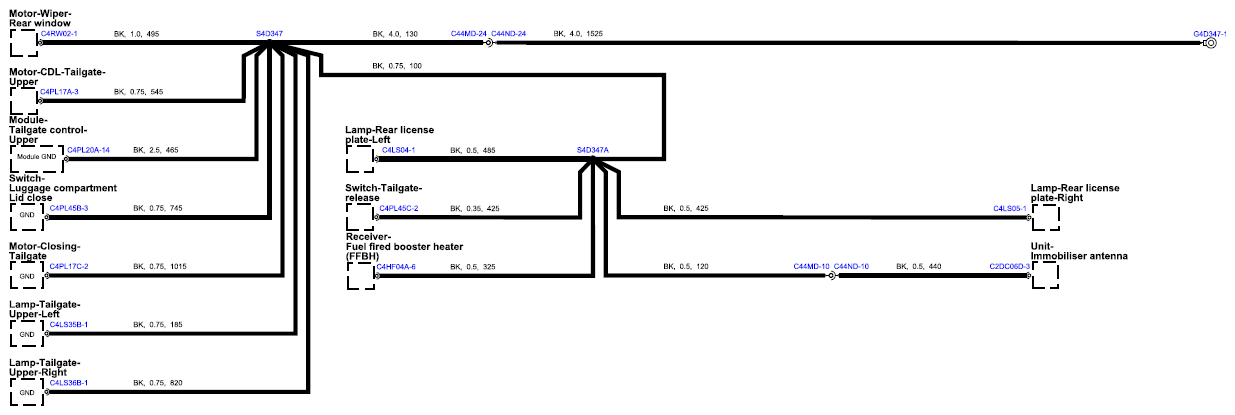

Fig 6: Ground Distribution Circuit Diagram - Sheet 6

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

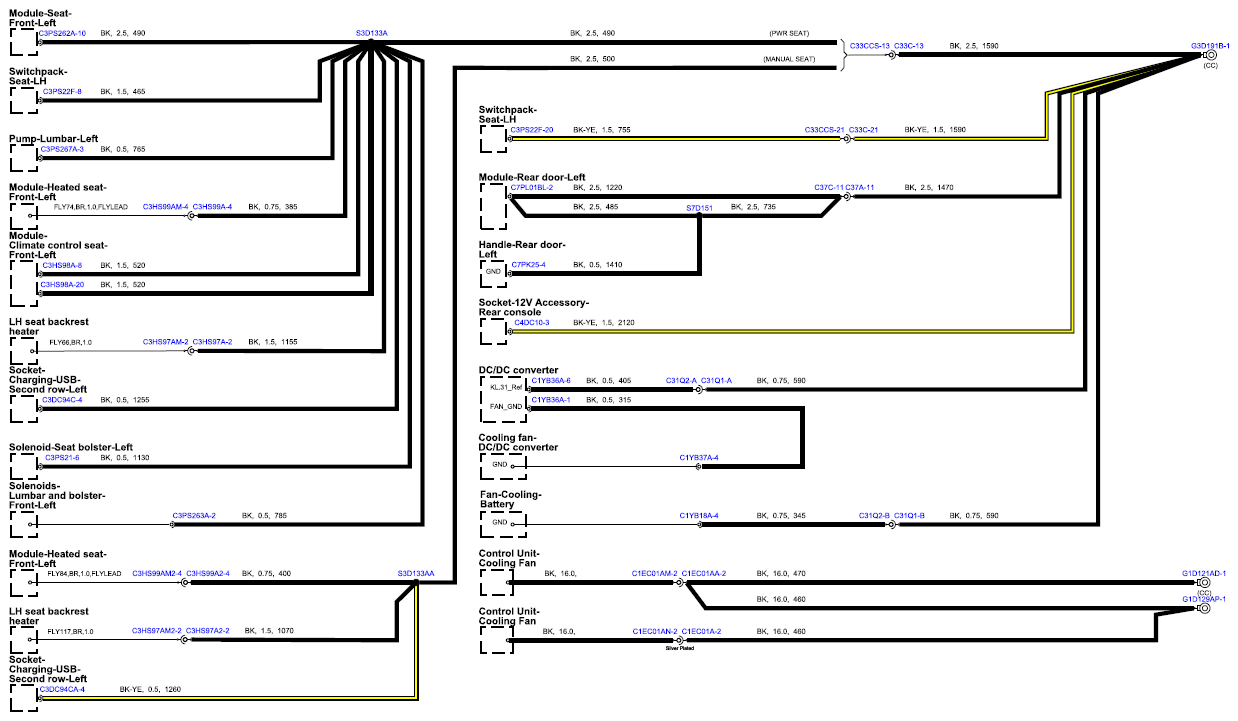

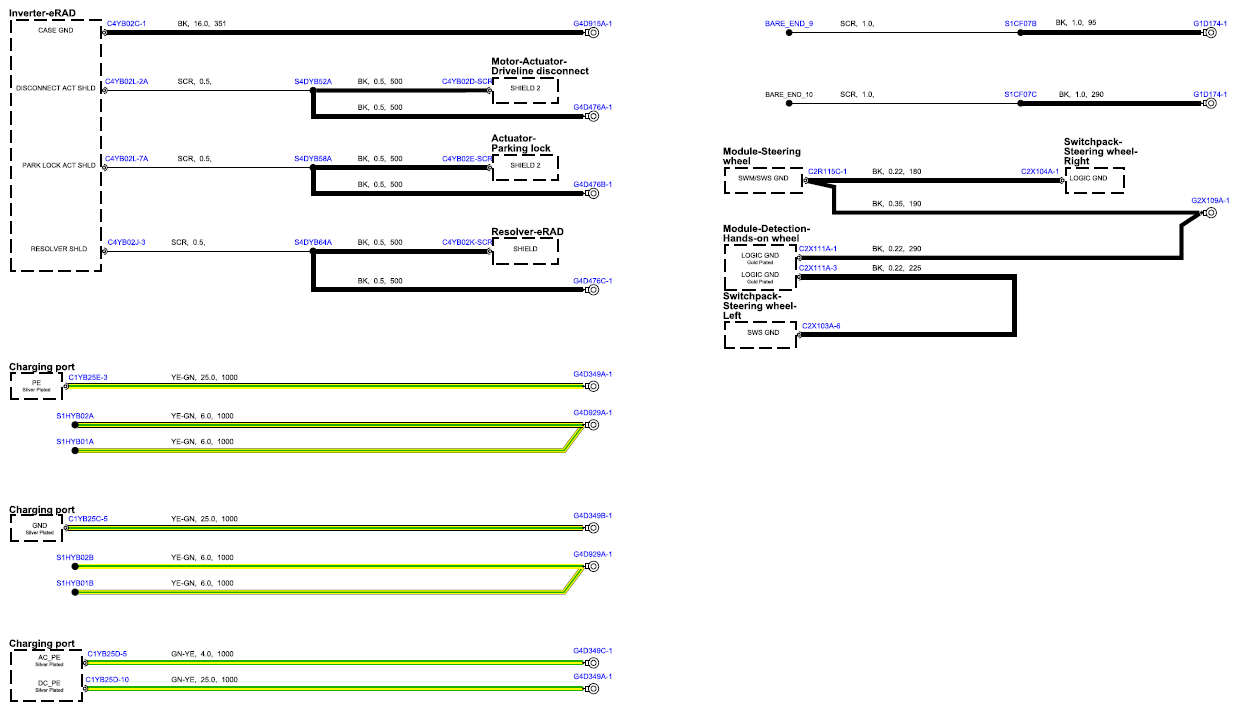

Fig 7: Ground Distribution Circuit Diagram - Sheet 7

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

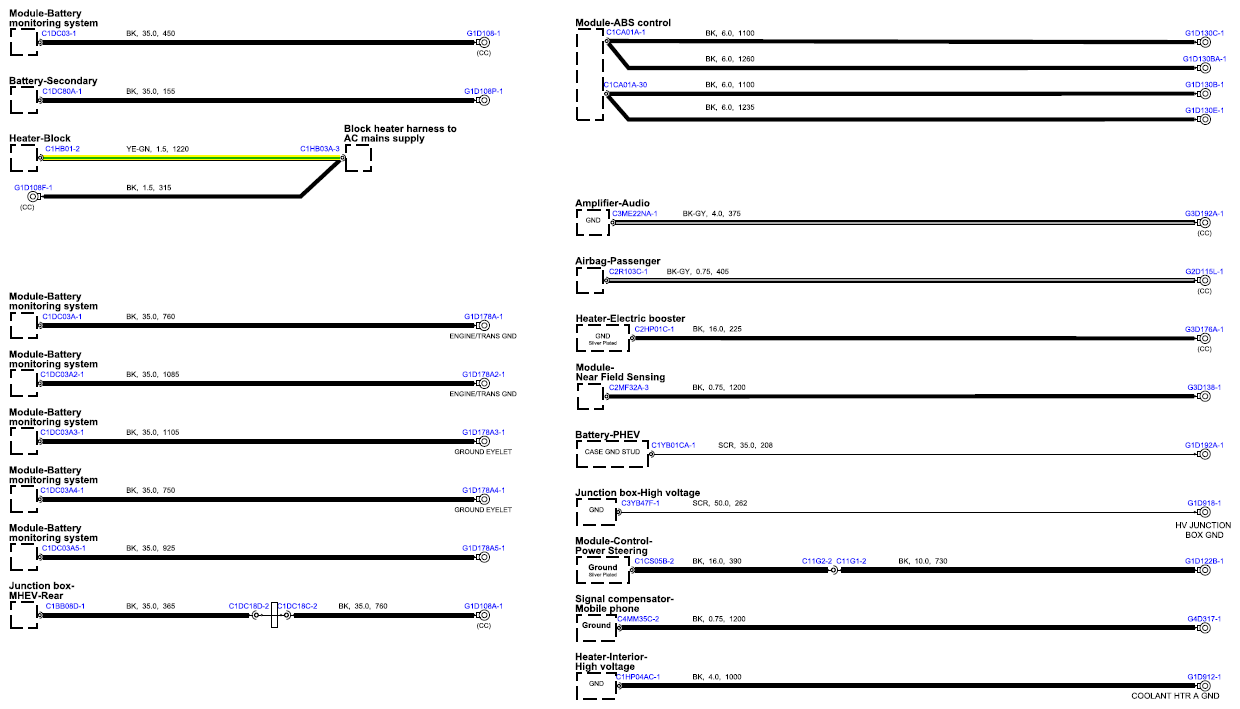

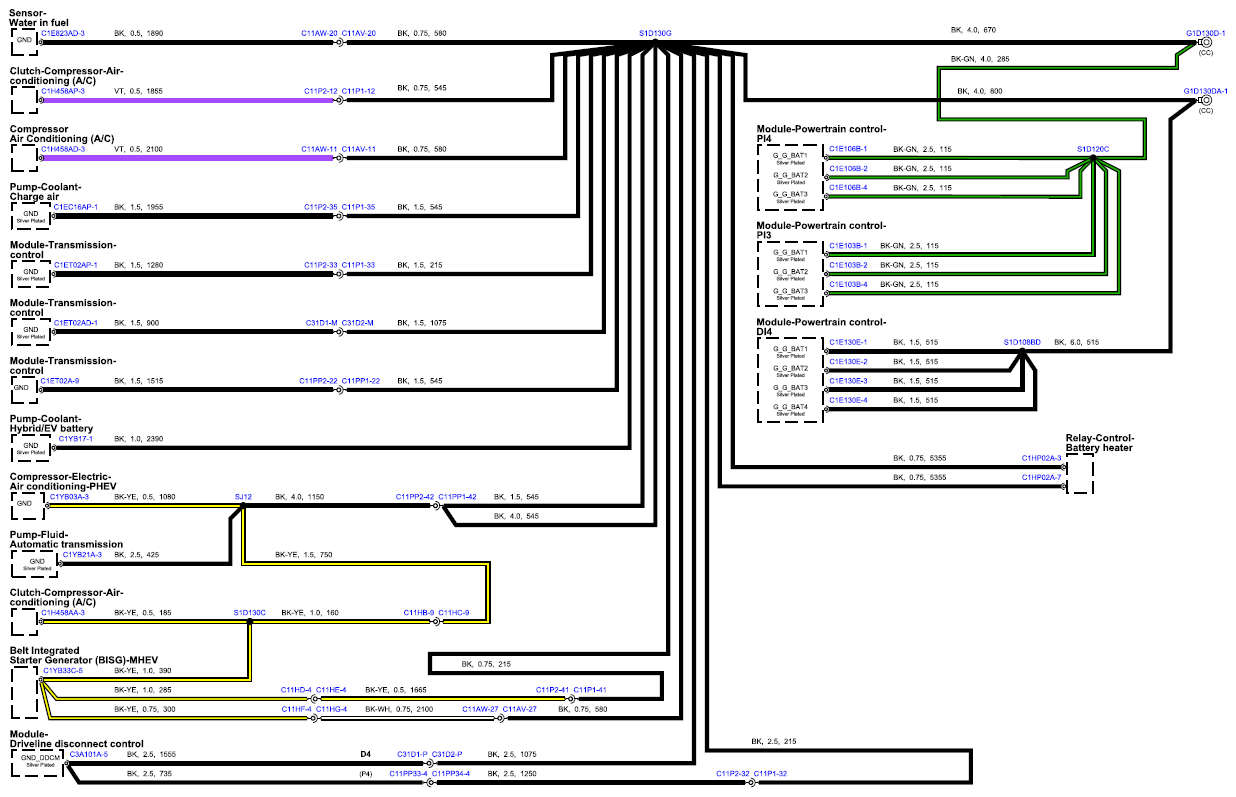

Fig 8: Ground Distribution Circuit Diagram - Sheet 8

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 9: Ground Distribution Circuit Diagram - Sheet 9

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 10: Ground Distribution Circuit Diagram - Sheet 10

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 11: Ground Distribution Circuit Diagram - Sheet 11

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 12: Ground Distribution Circuit Diagram - Sheet 12

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 13: Ground Distribution Circuit Diagram - Sheet 13

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 14: Ground Distribution Circuit Diagram - Sheet 14

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 15: Ground Distribution Circuit Diagram - Sheet 15

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 16: Ground Distribution Circuit Diagram - Sheet 16

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
