Body Control Module/Gateway Module Assembly

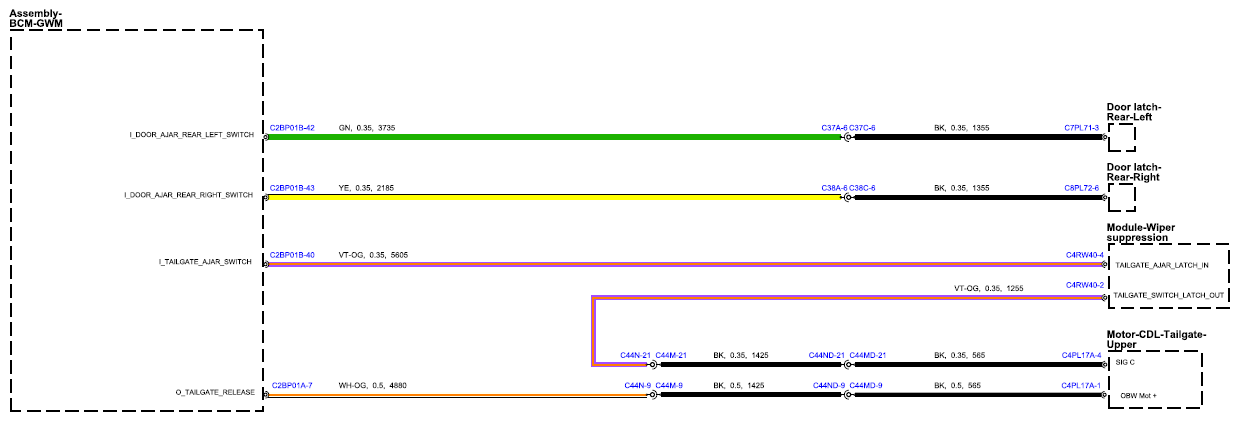

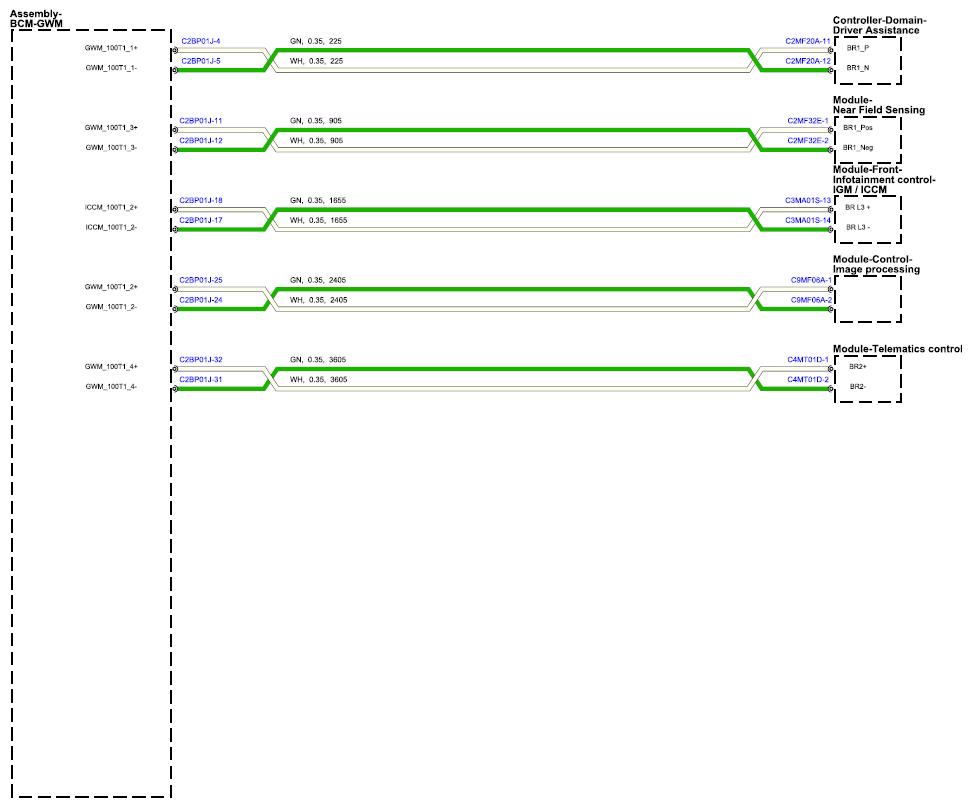

Fig 1: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

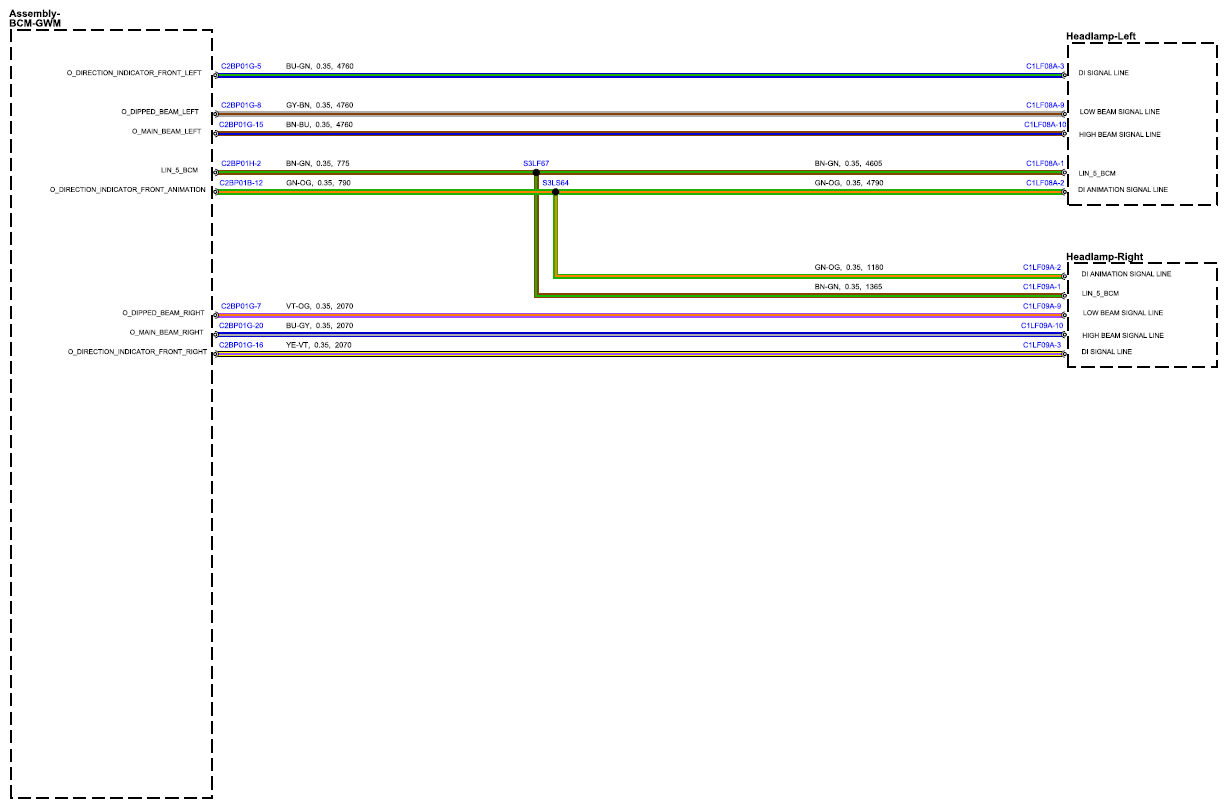

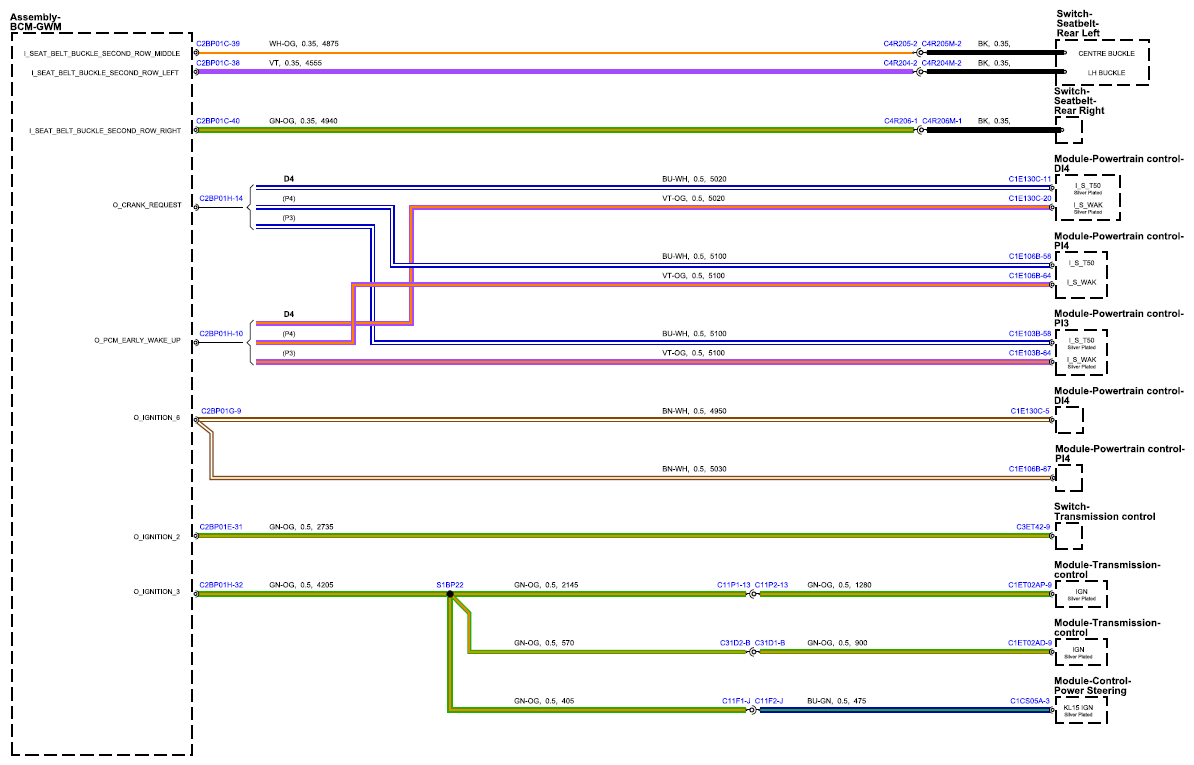

Fig 2: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

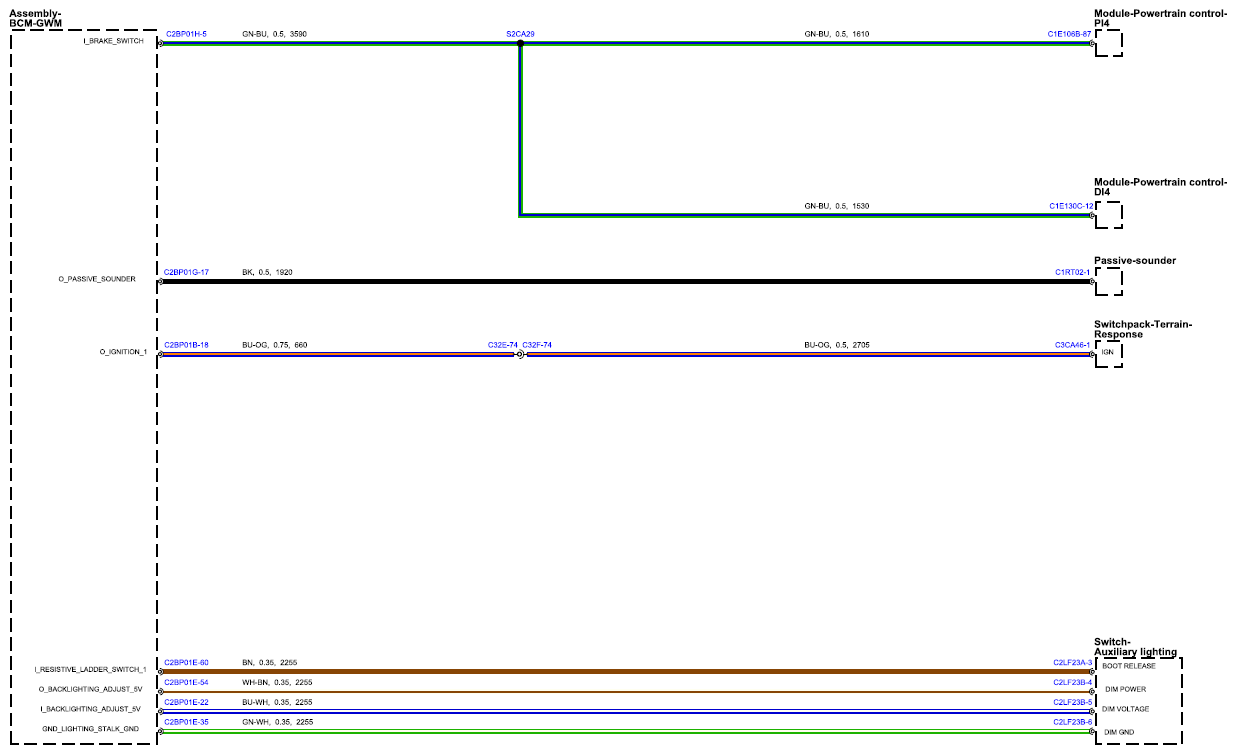

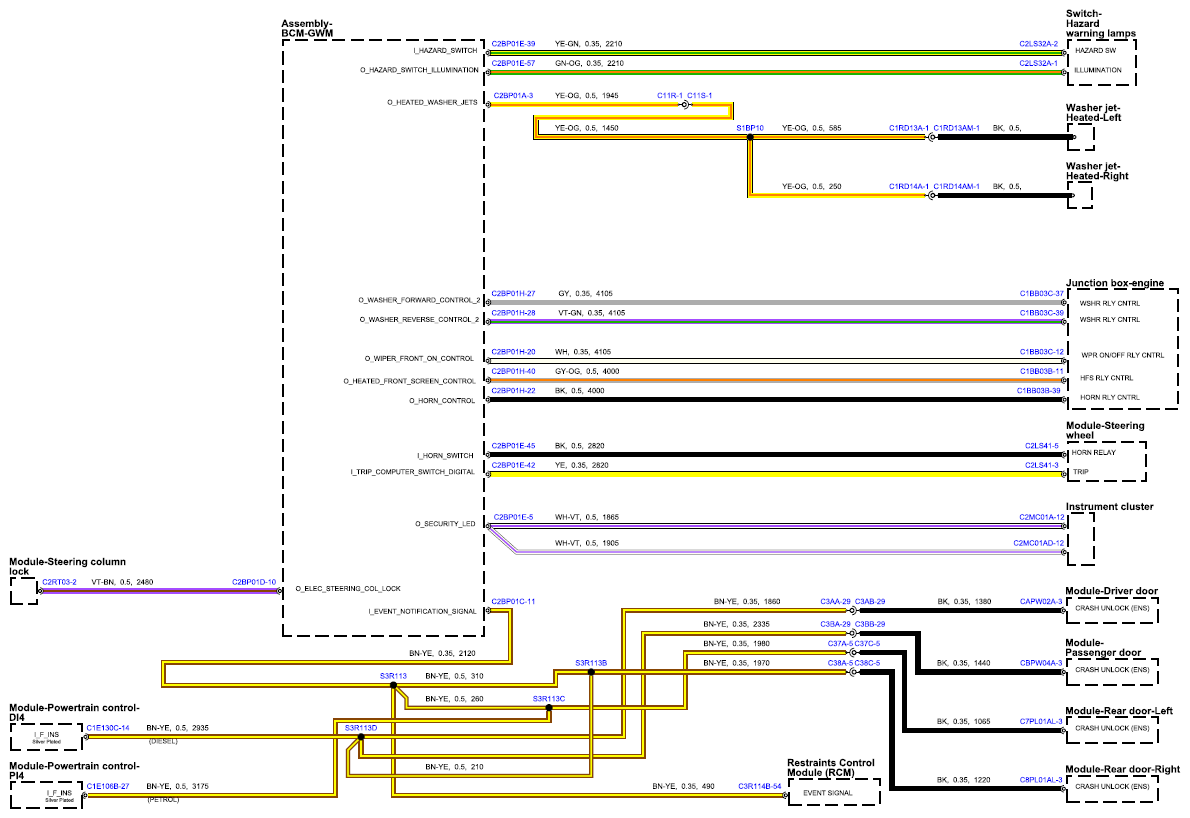

Fig 3: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

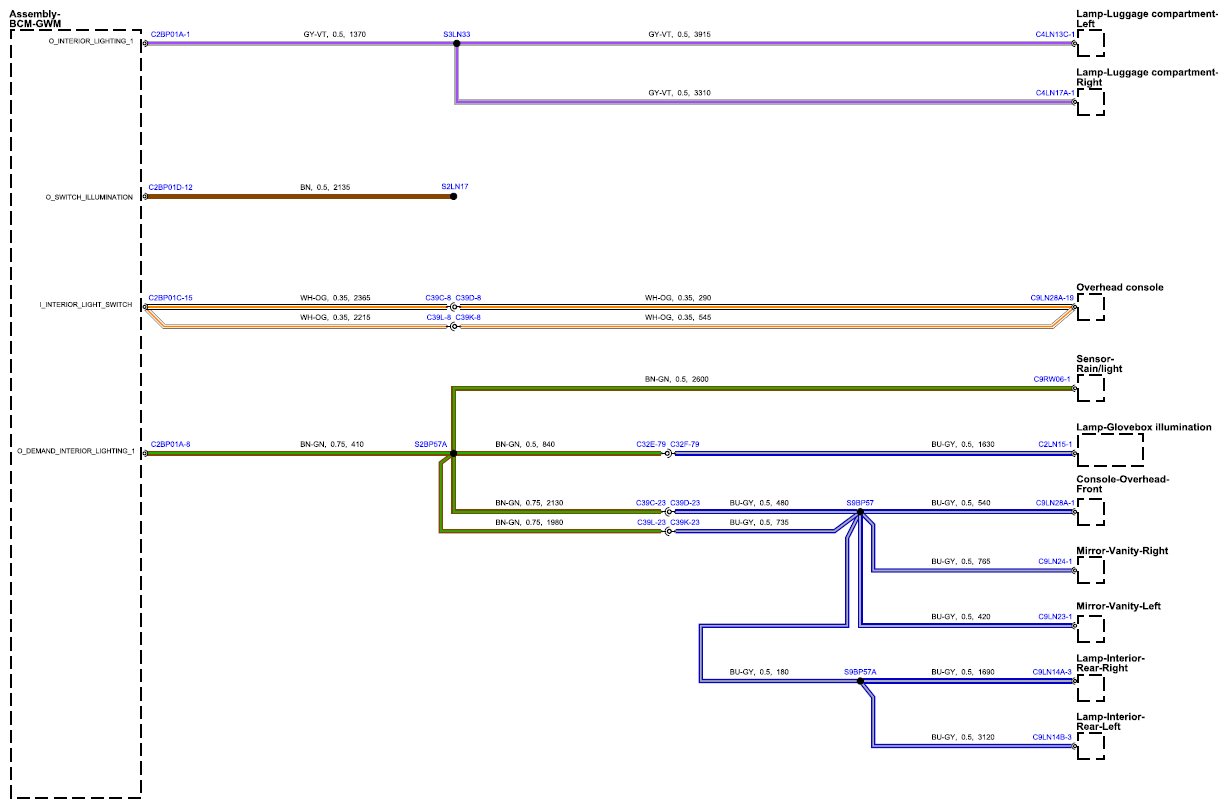

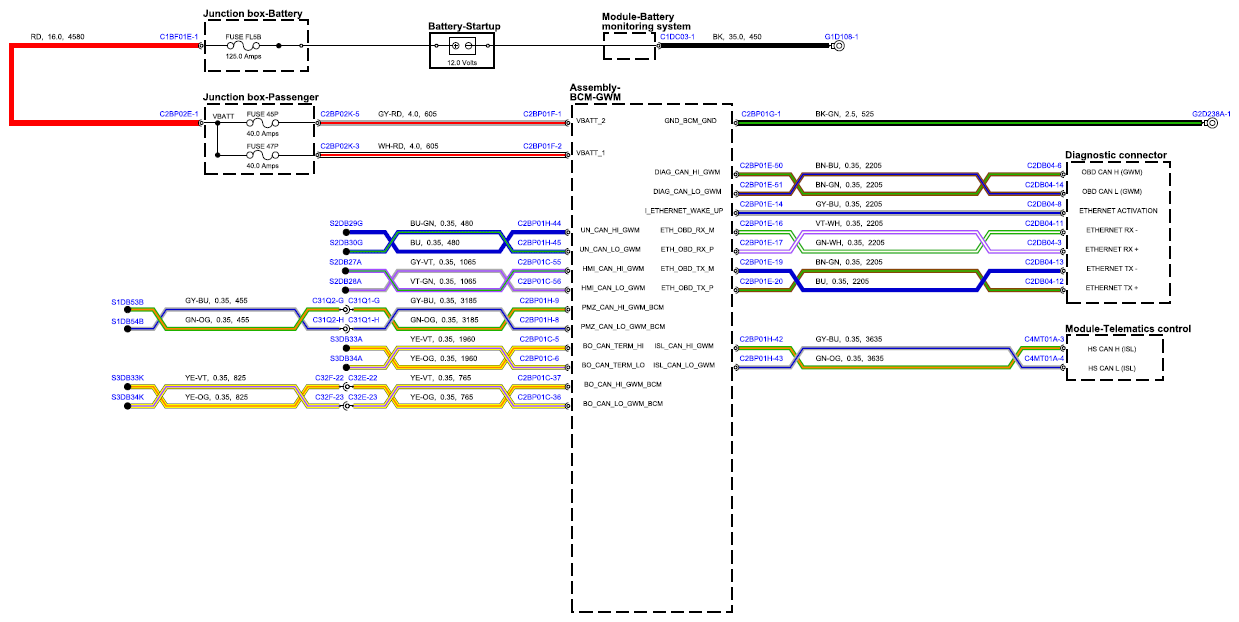

Fig 4: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

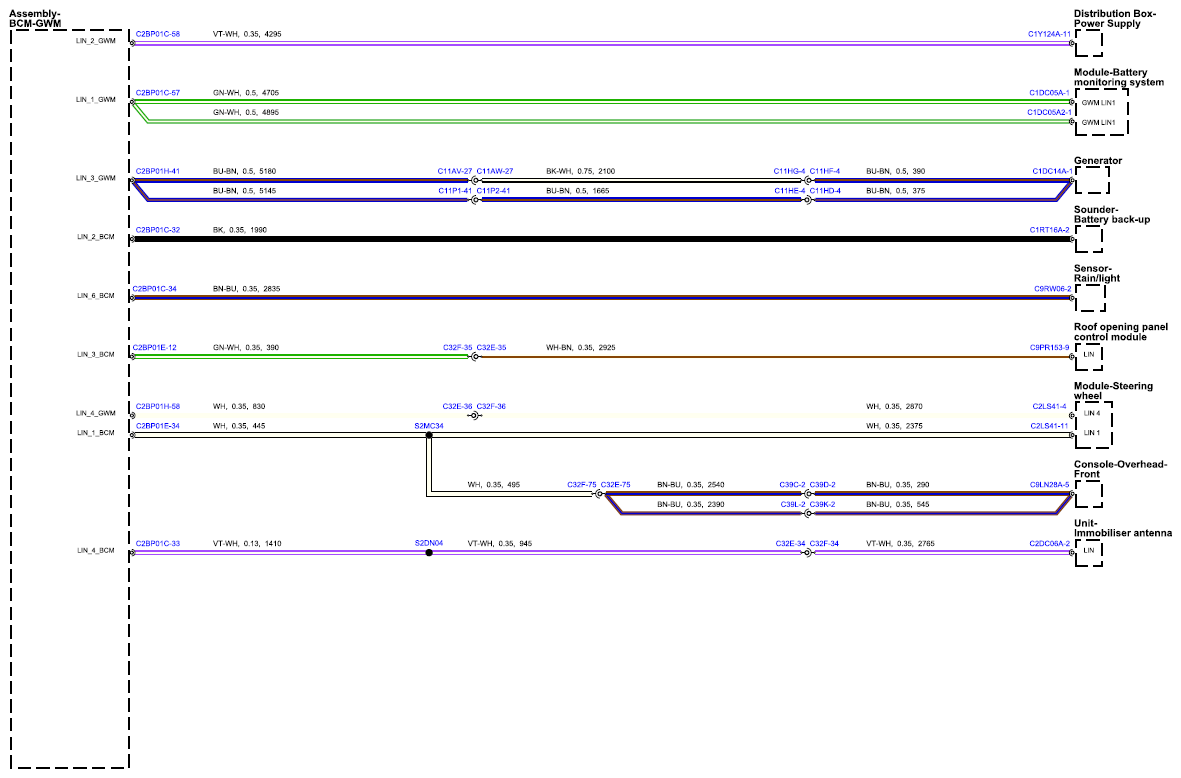

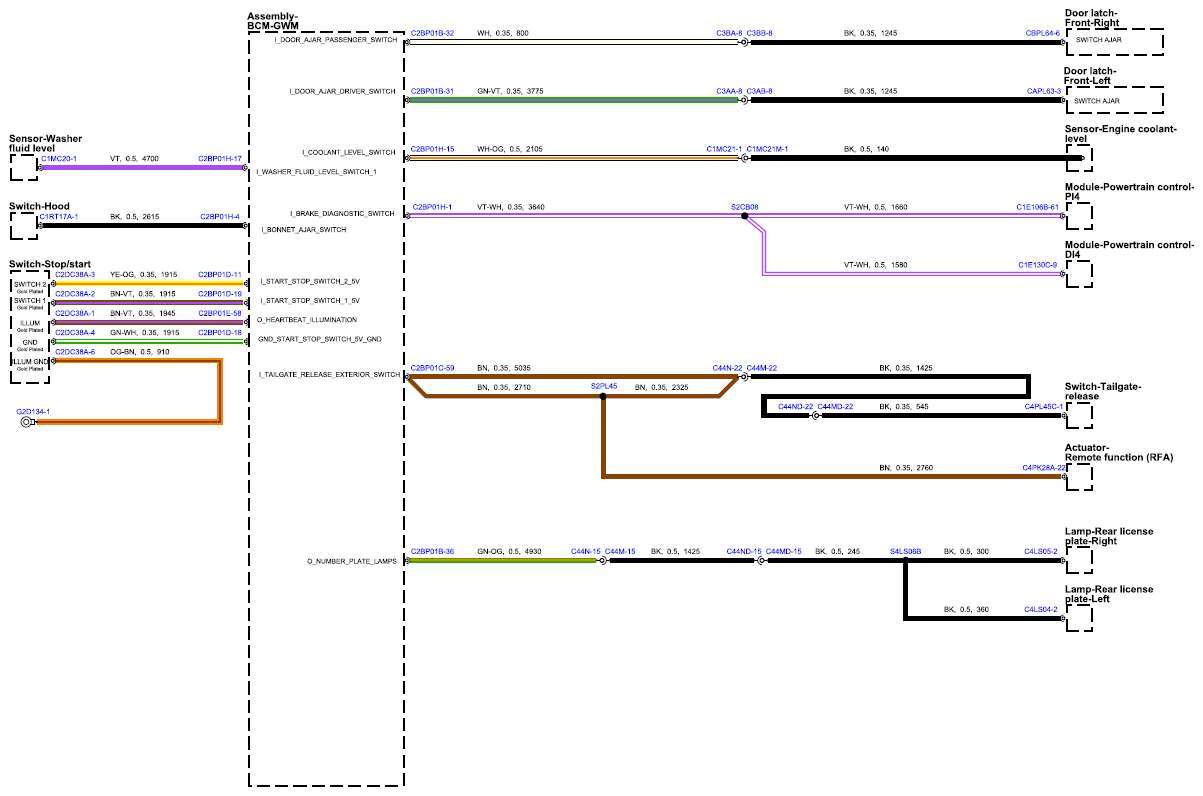

Fig 5: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 5

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

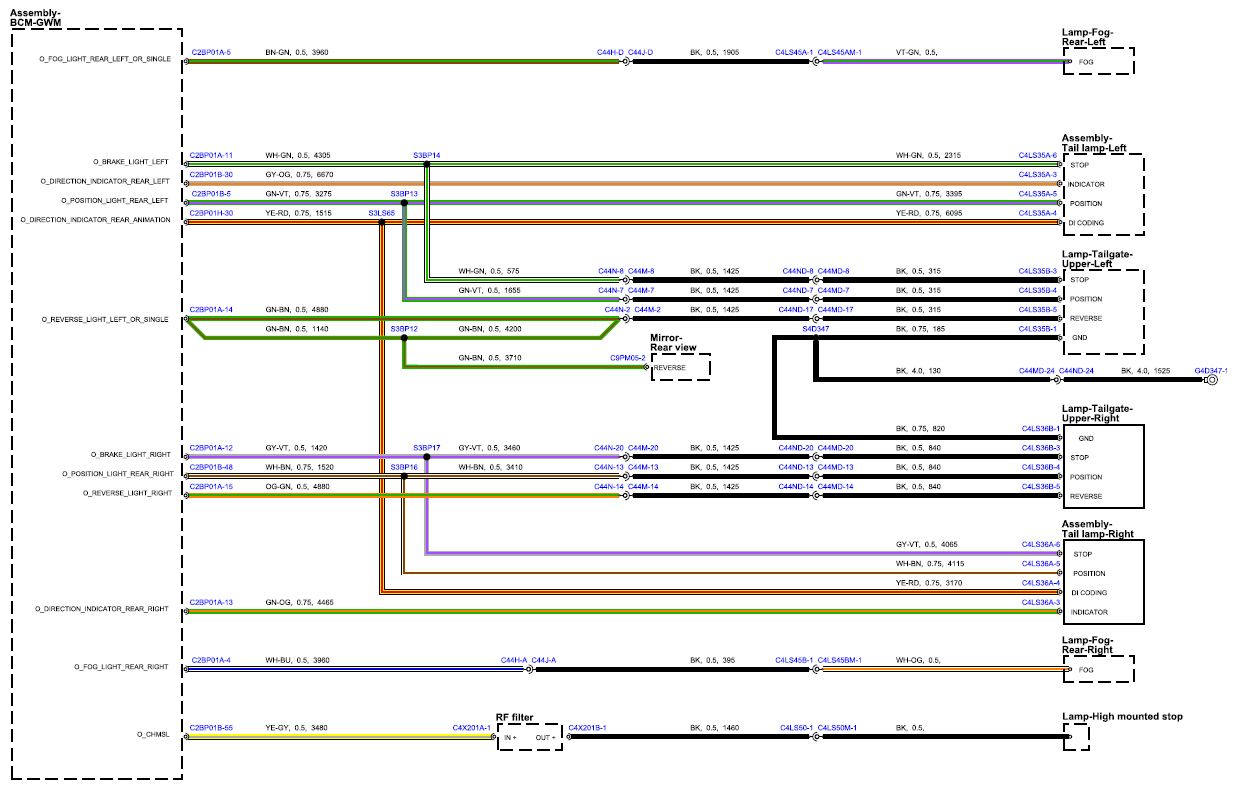

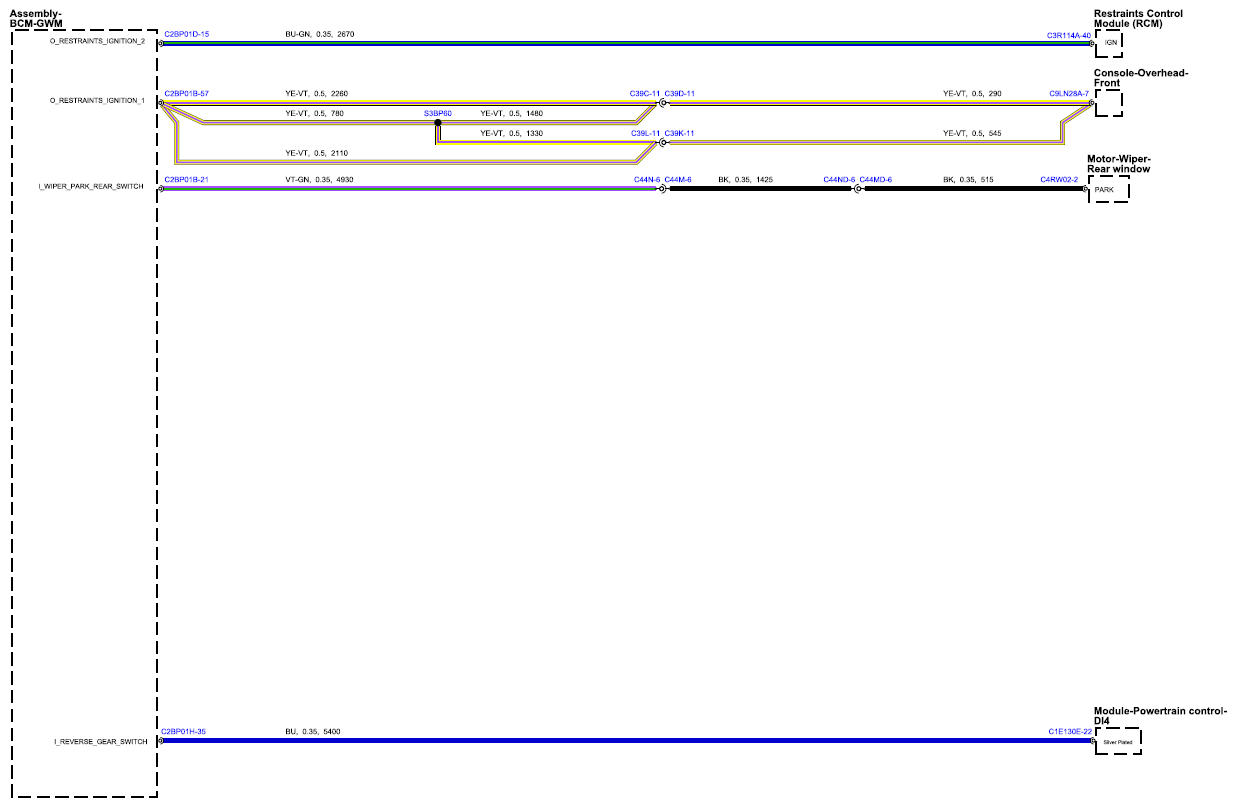

Fig 6: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 6

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

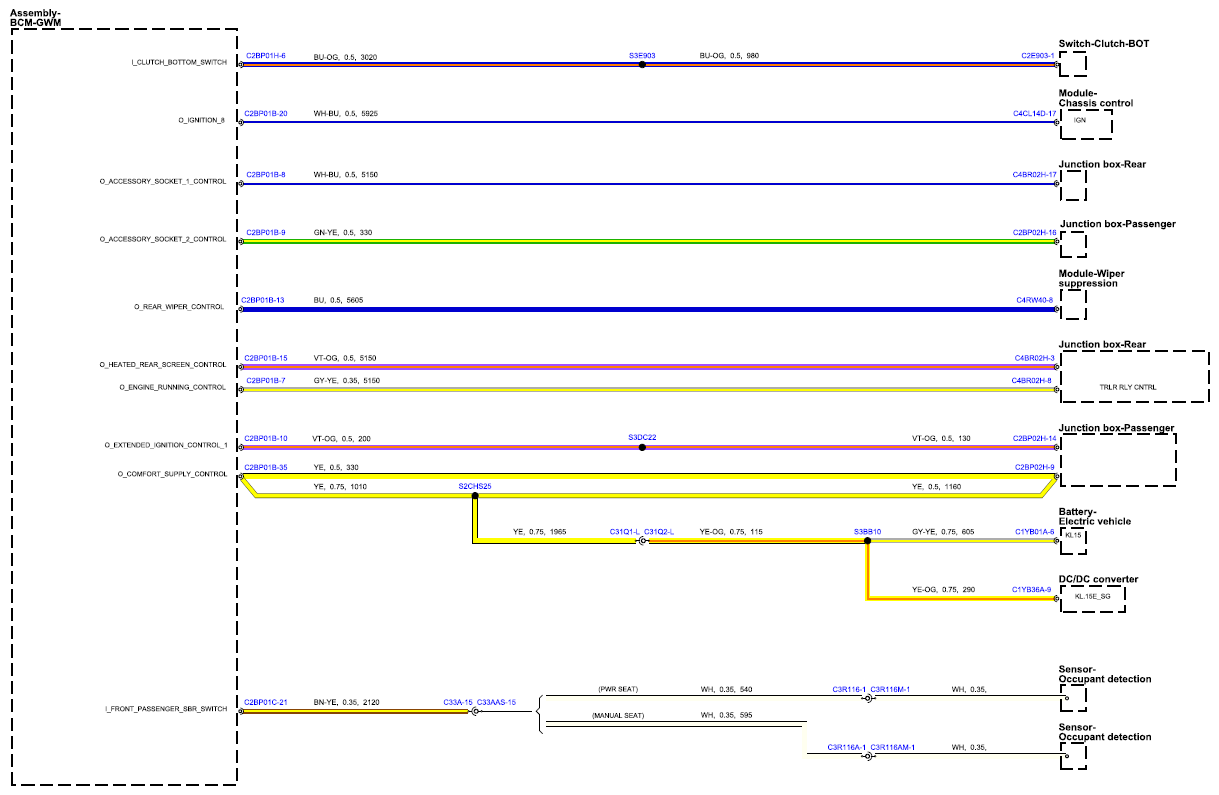

Fig 7: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 7

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

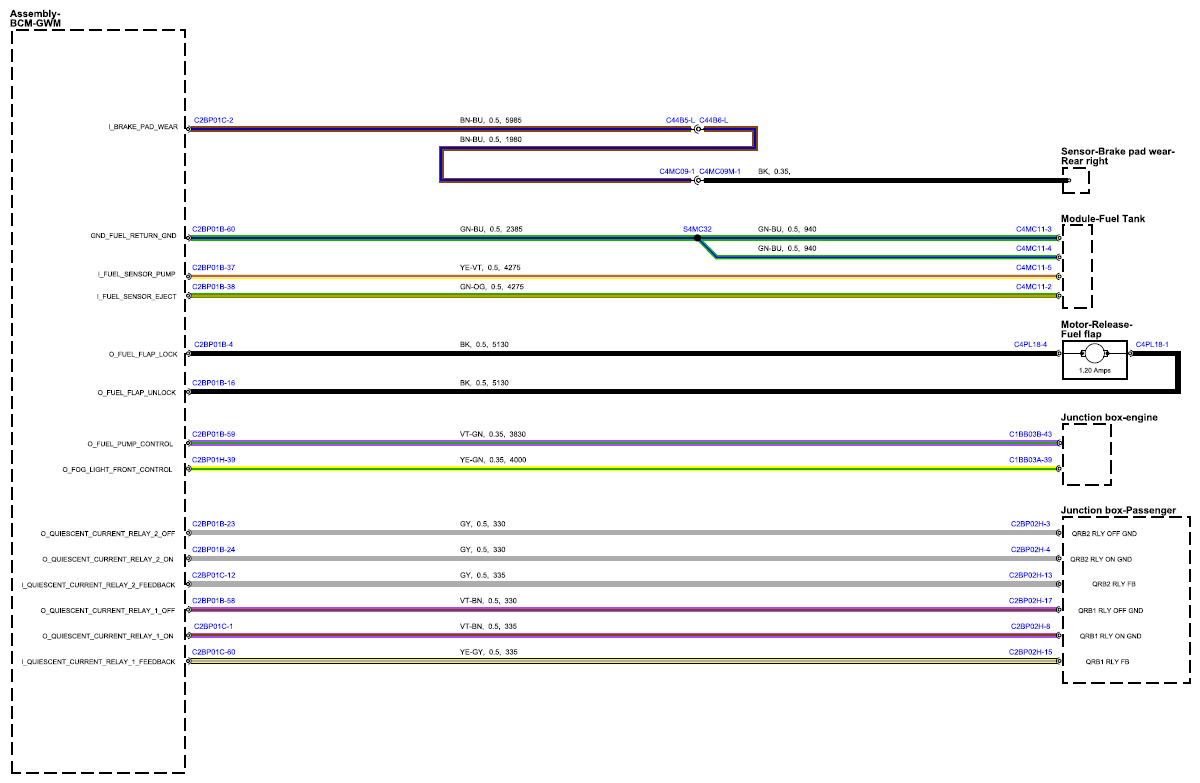

Fig 8: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 8

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 9: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 9

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 10: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 10

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 11: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 11

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 12: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 12

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 13: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 13

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 14: Body Control Module/Gateway Module Assembly Circuit Diagram - Sheet 14

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
