Battery junction box - PI3

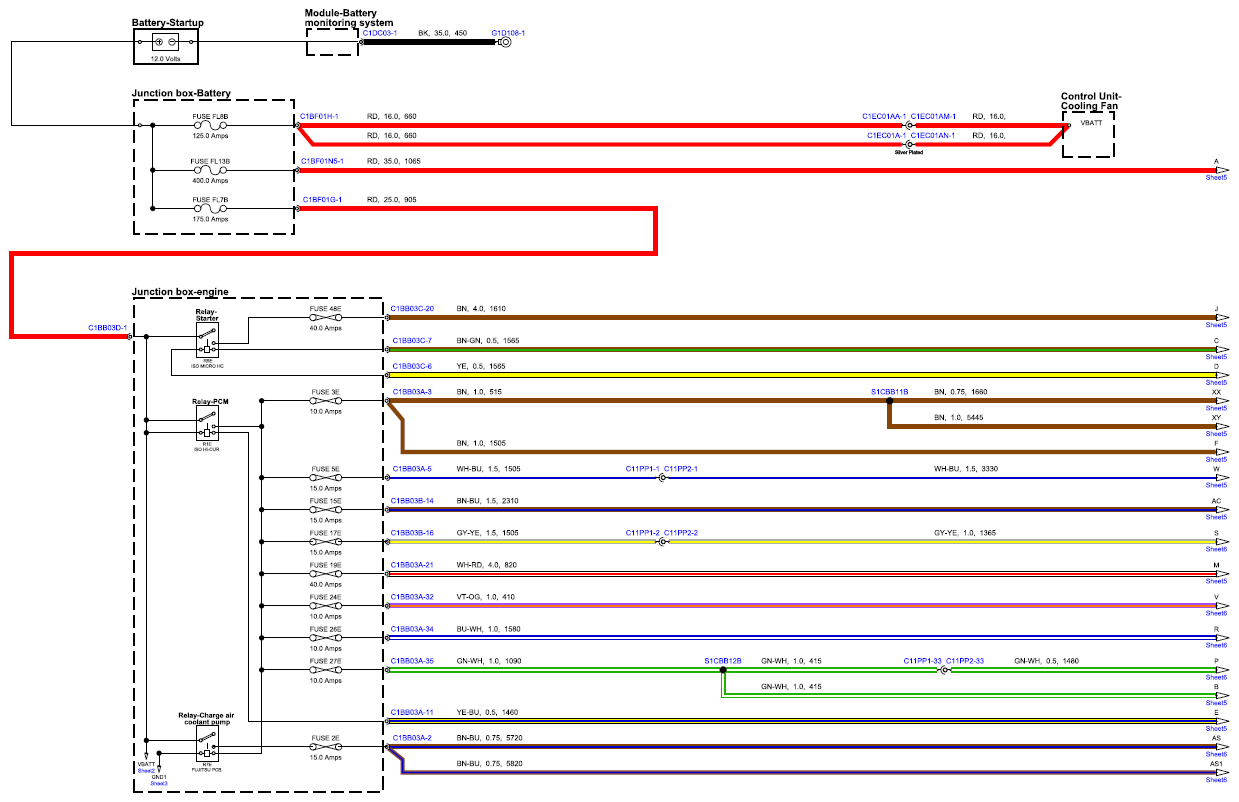

Fig 1: Battery Junction Box Circuit Diagram - PI3 (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

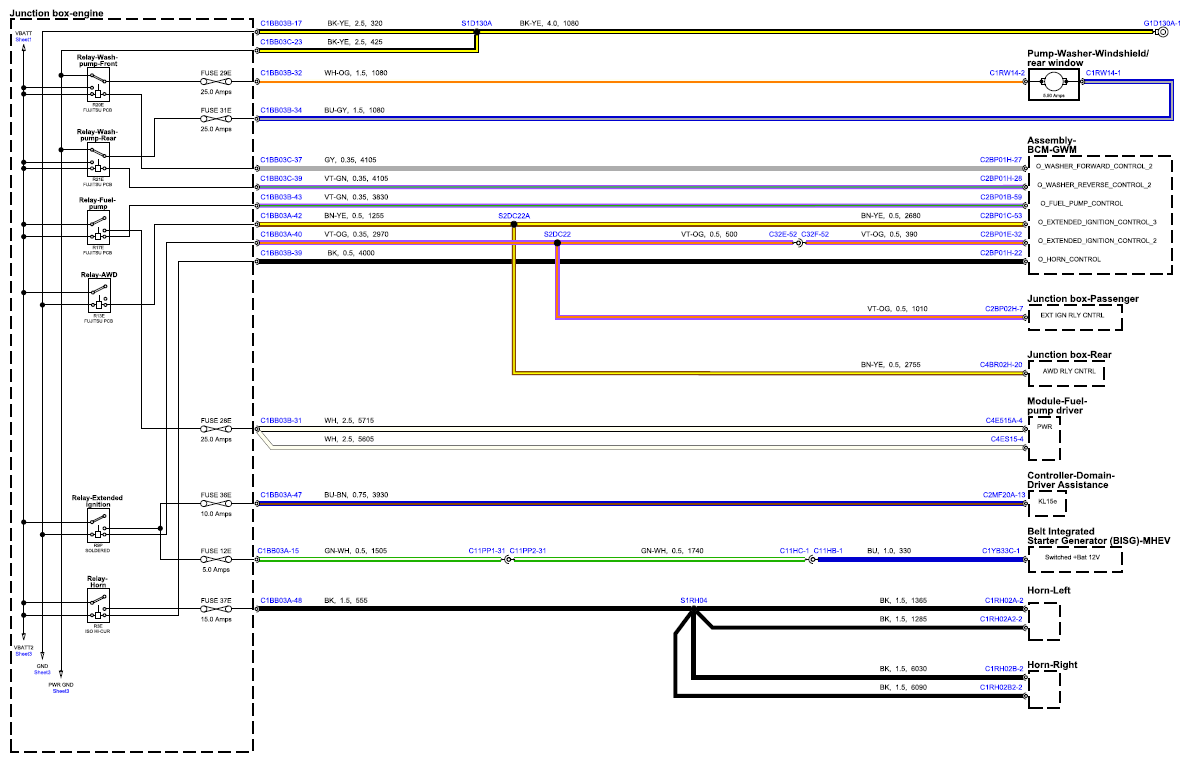

Fig 2: Battery Junction Box Circuit Diagram - PI3 (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

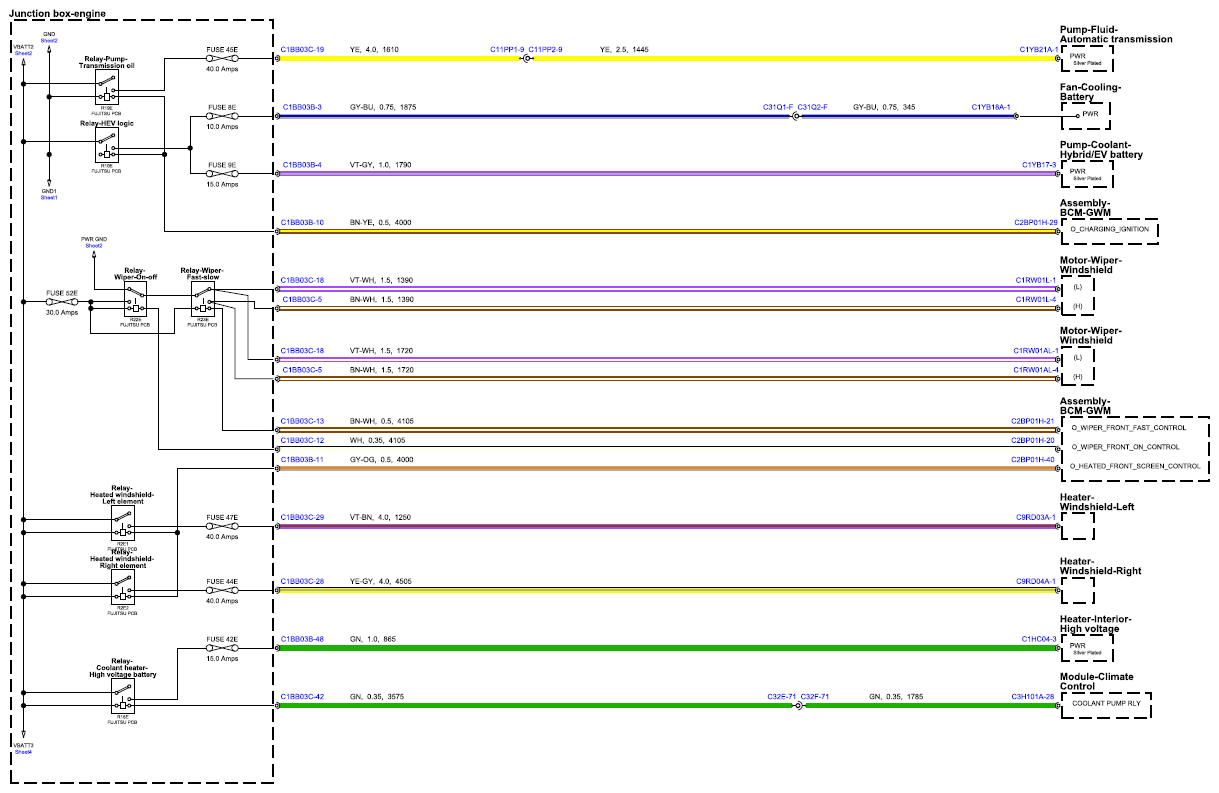

Fig 3: Battery Junction Box Circuit Diagram - PI3 (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

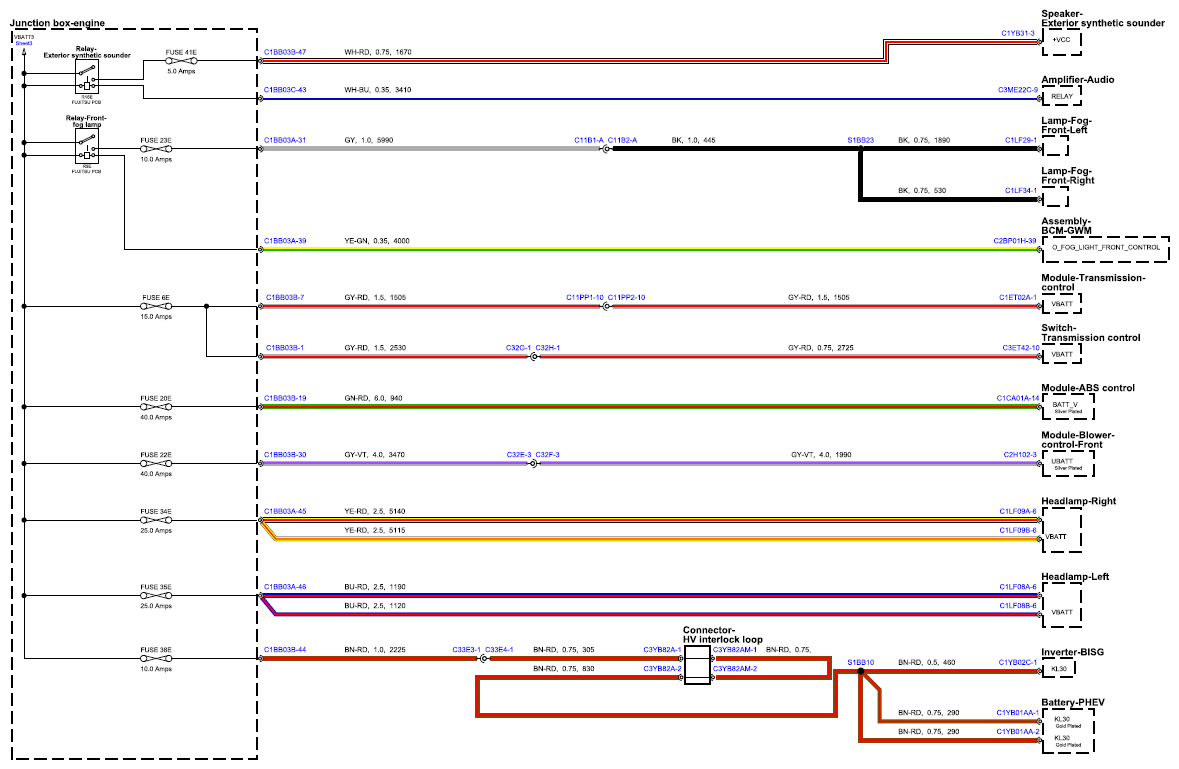

Fig 4: Battery Junction Box Circuit Diagram - PI3 (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

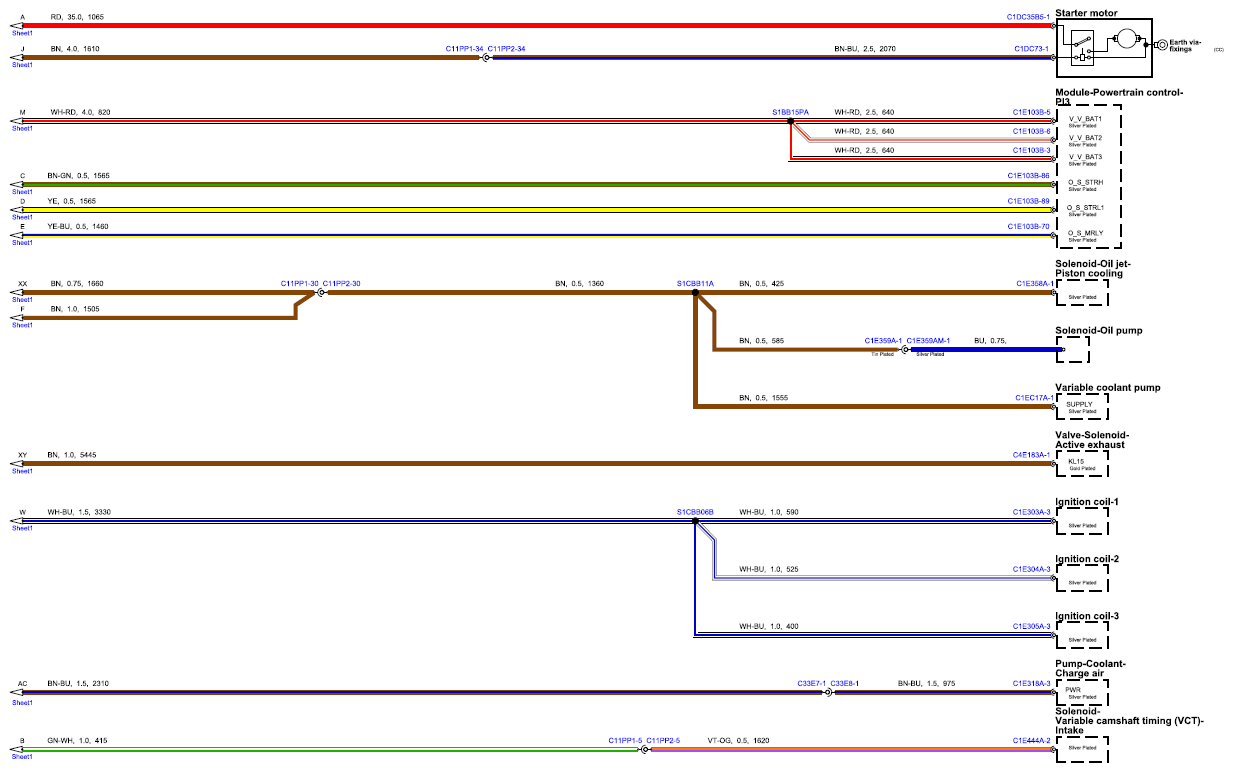

Fig 5: Battery Junction Box Circuit Diagram - PI3 (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

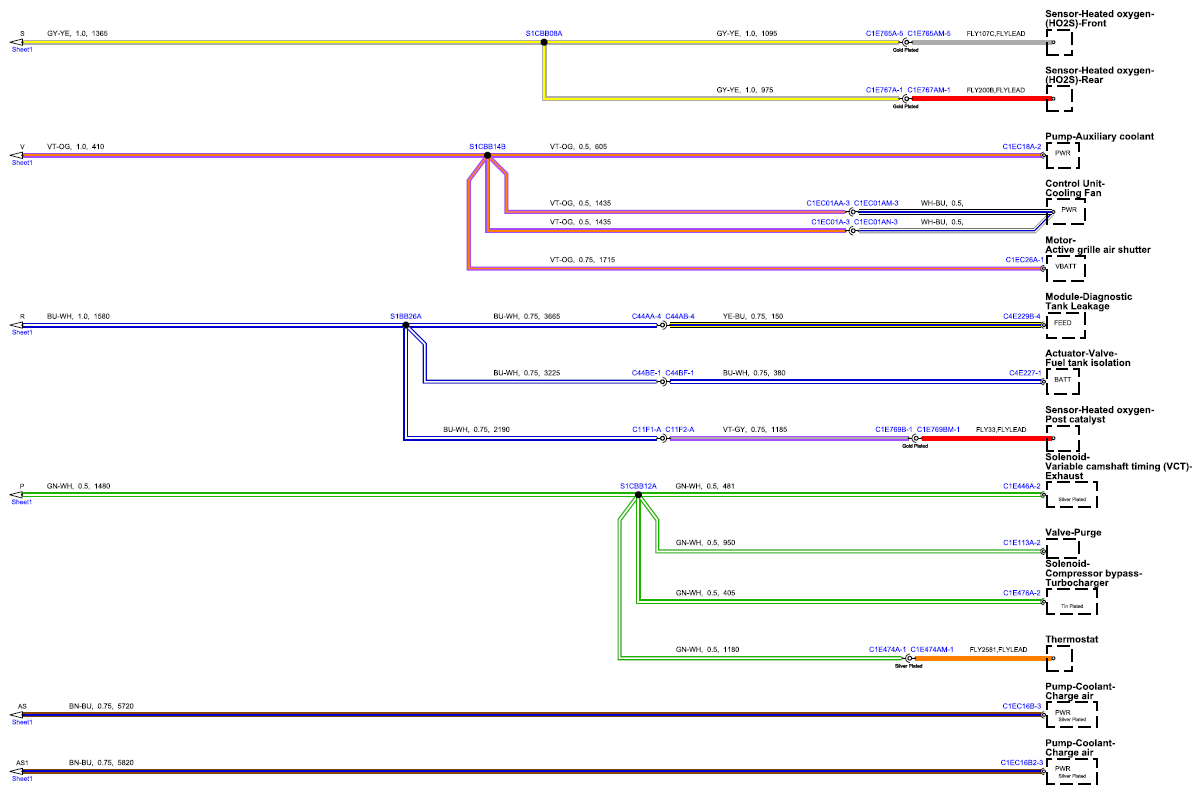

Fig 6: Battery Junction Box Circuit Diagram - PI3 (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
