Driver Assistance Domain Controller

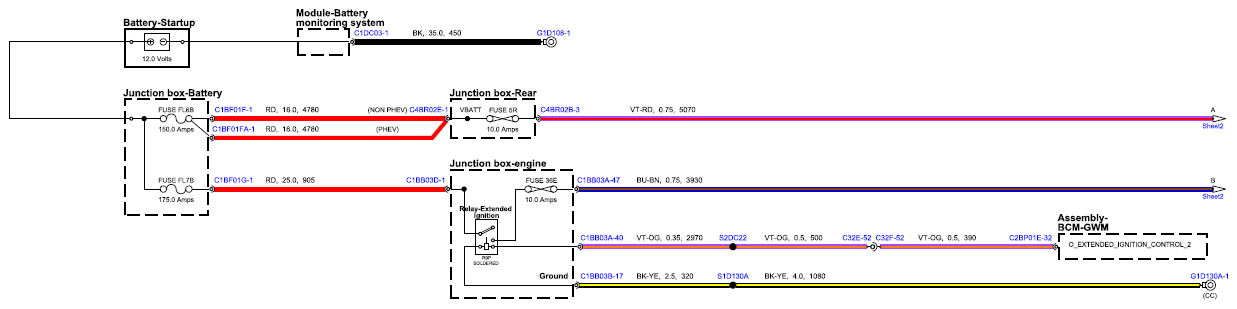

Fig 1: Driver Assistance Domain Controller Circuit Diagram - Sheet 1
G15669310Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

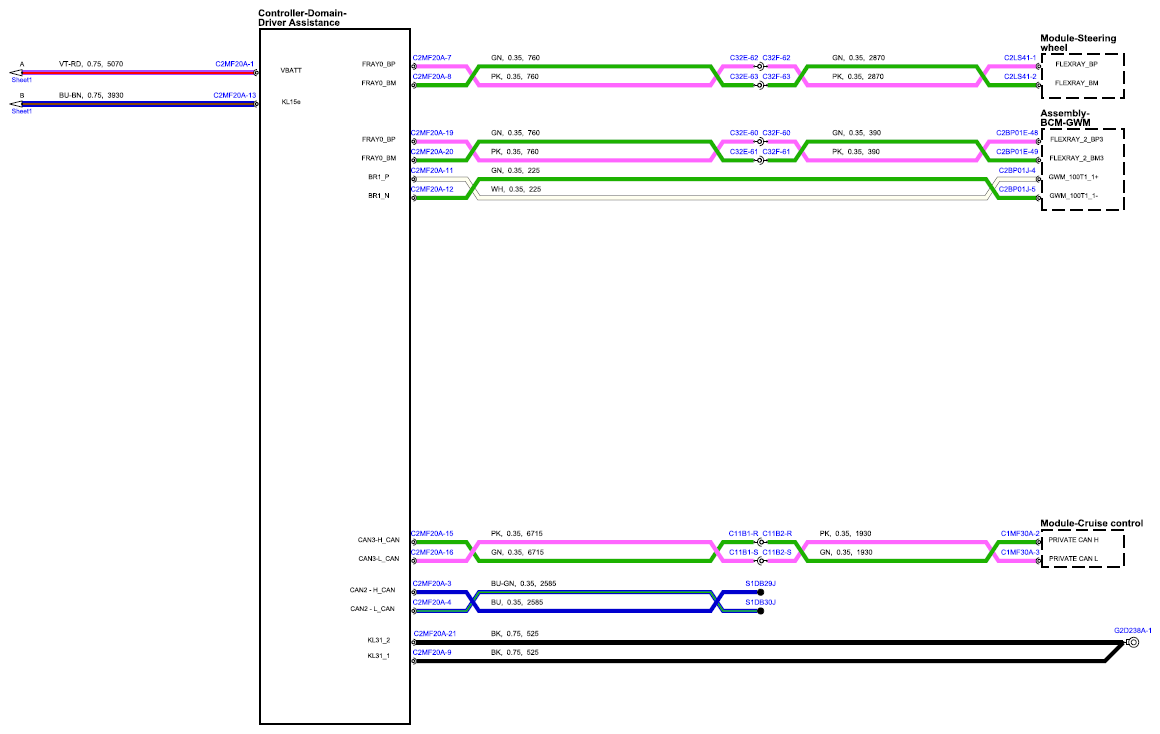

Fig 2: Driver Assistance Domain Controller Circuit Diagram - Sheet 2
G15669311Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
