Head-Up Display

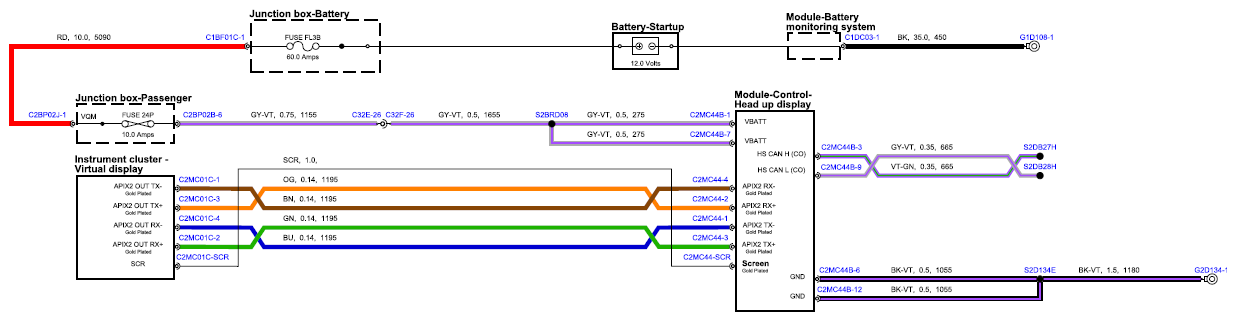

Fig 1: Information And Message Center Circuit Diagram - Head-Up Display

G15669307

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
