413-00 Instrument Cluster And Panel Illumination

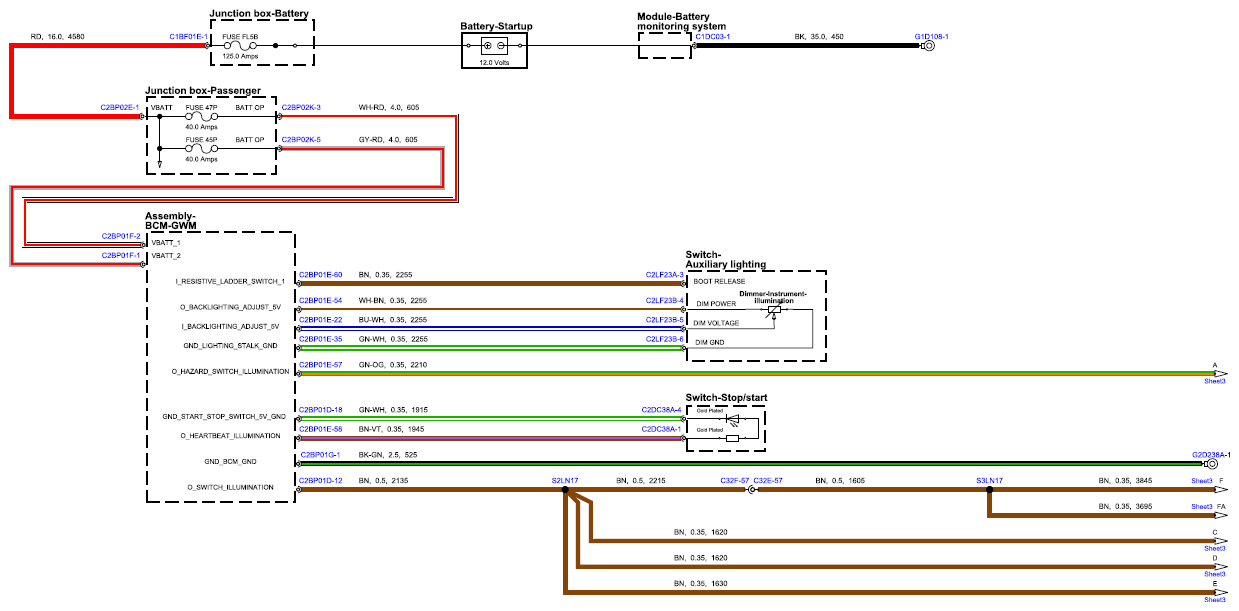

Fig 1: Instrument Cluster And Panel Illumination Circuit Diagram - Sheet 1
G15669301Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

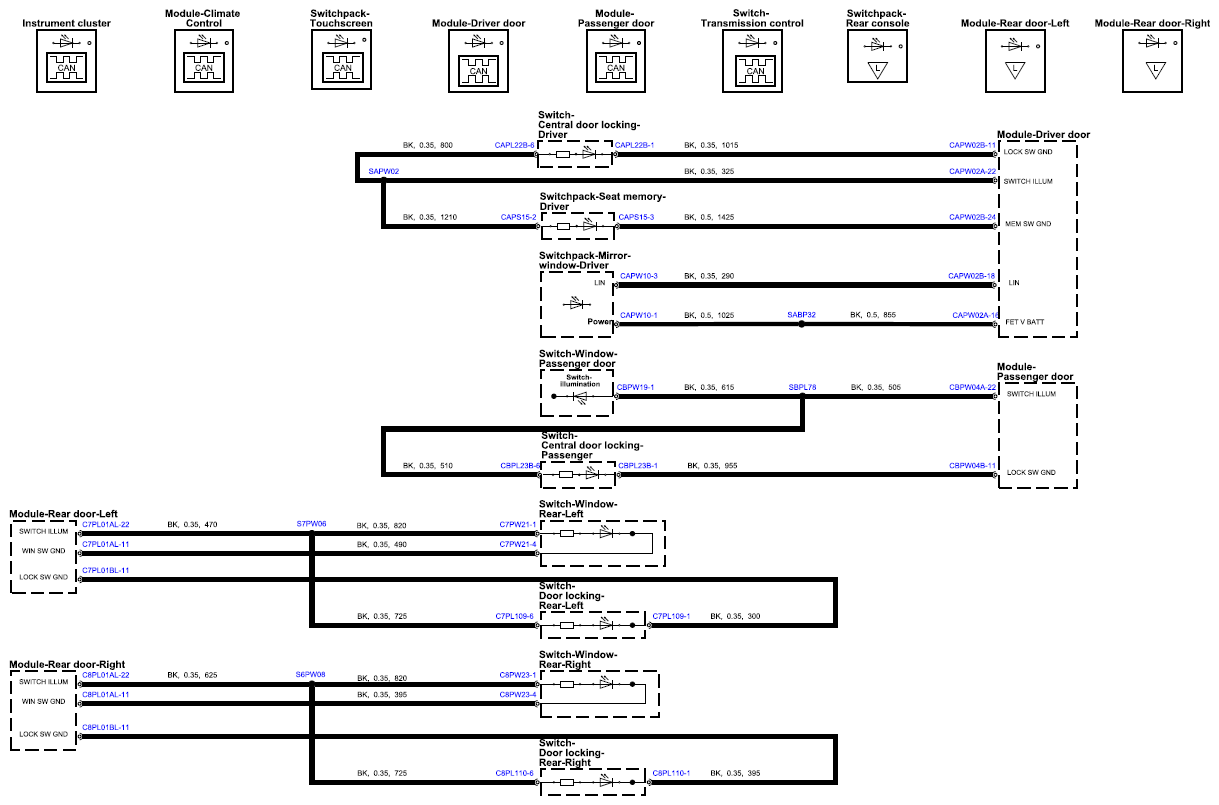

Fig 2: Instrument Cluster And Panel Illumination Circuit Diagram - Sheet 2
G15669302Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

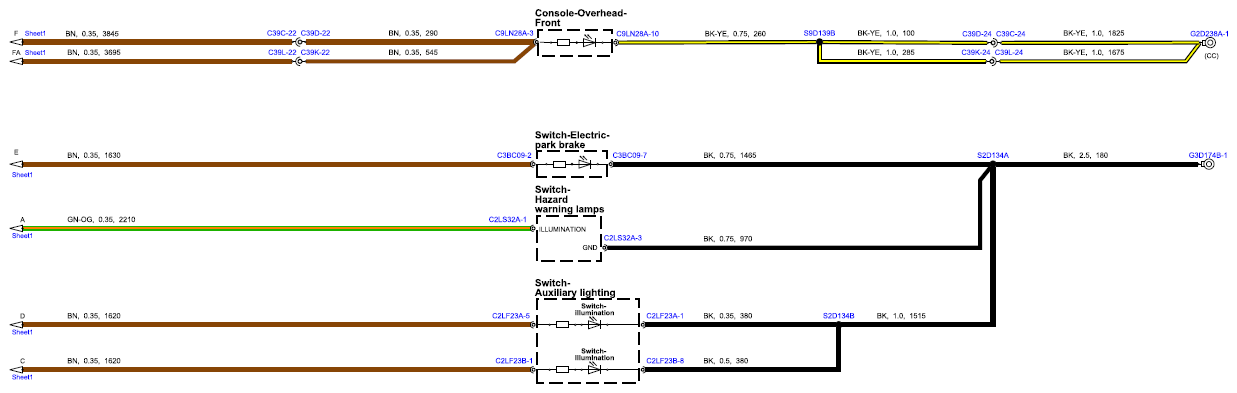

Fig 3: Instrument Cluster And Panel Illumination Circuit Diagram - Sheet 3
G15669303Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
