310-03 Speed Control

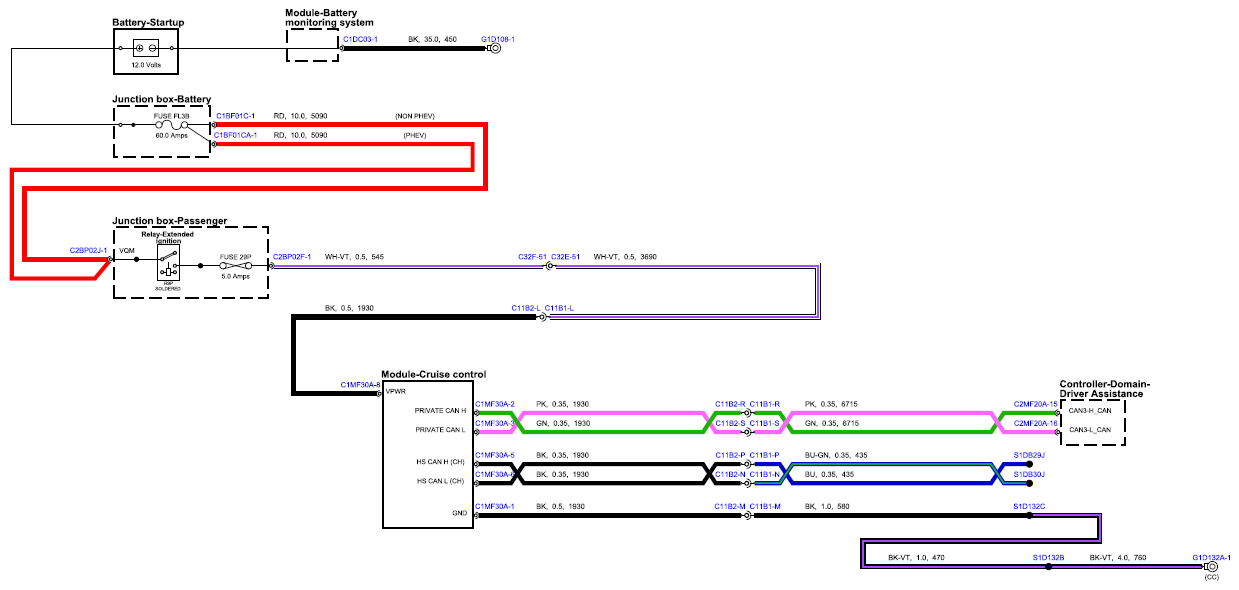

Fig 1: Speed Control Circuit Diagram

G15669289

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
