310-01B Fuel Tank And Fuel Lines - Pi4

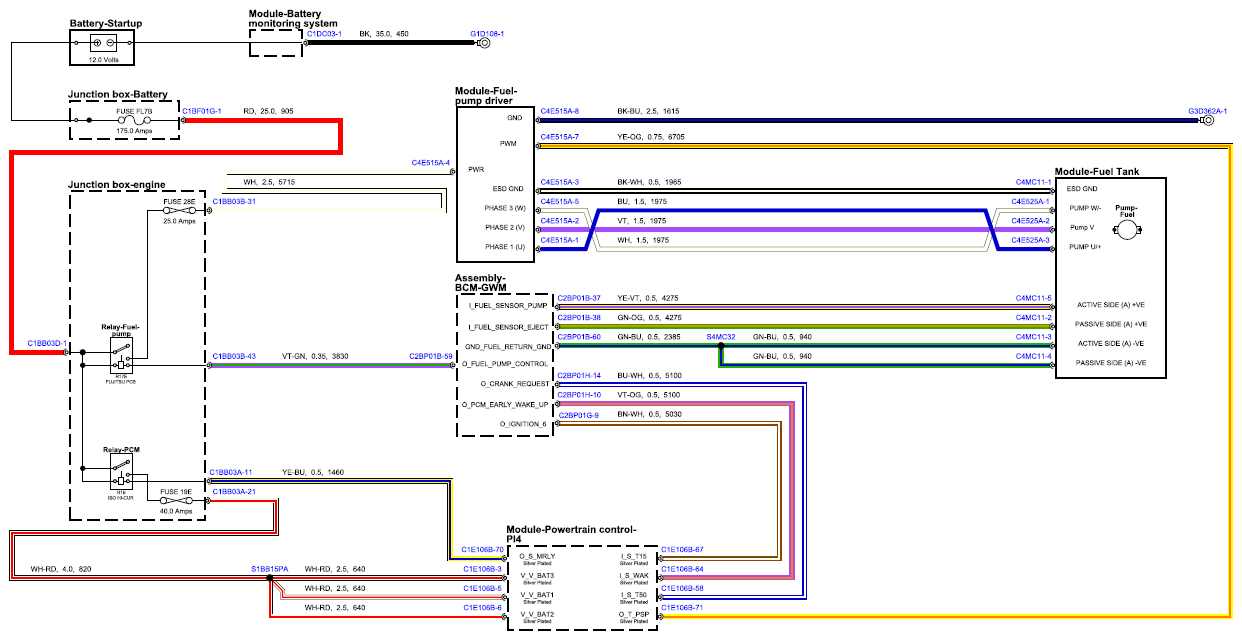

Fig 1: Fuel Tank And Fuel Lines Circuit Diagram - PI4

G15669287

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
