307-01 Automatic Transmission: Pi4

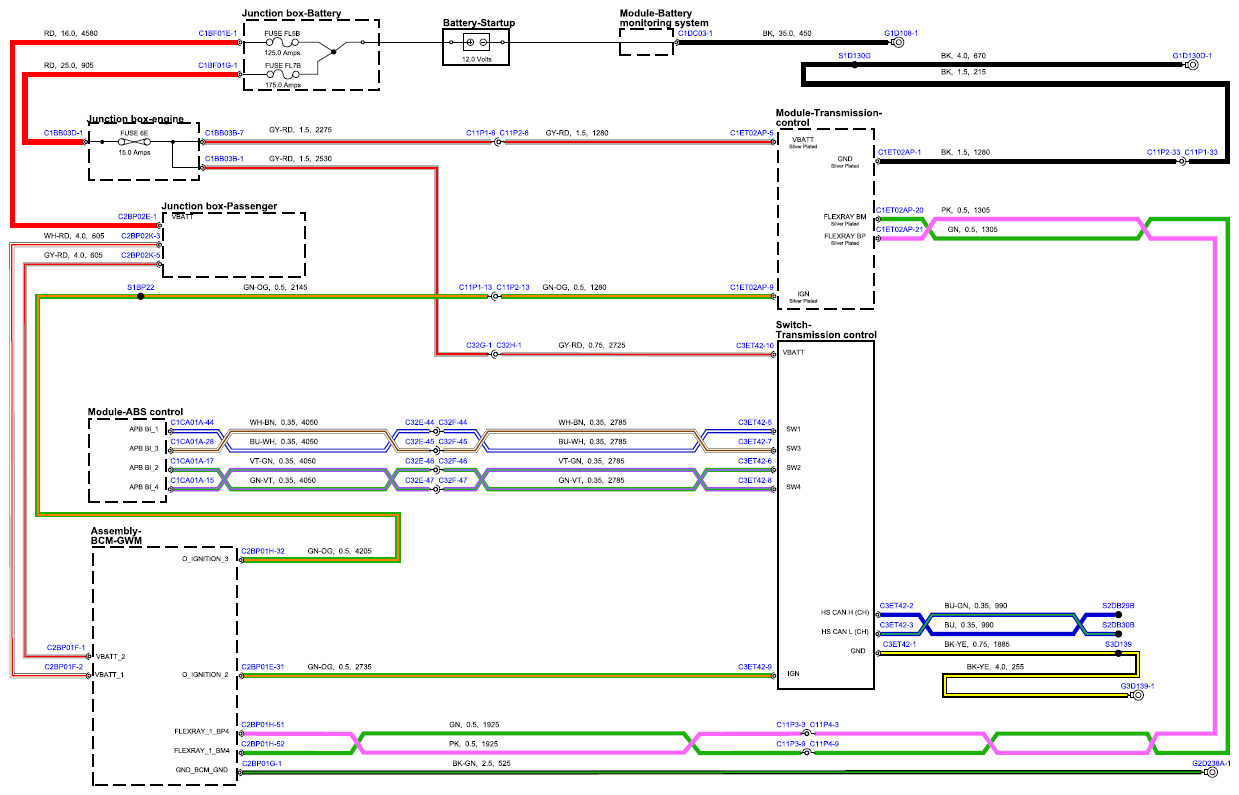

Fig 1: Automatic Transmission Circuit Diagram - PI4 (Sheet 1)
G15669284Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

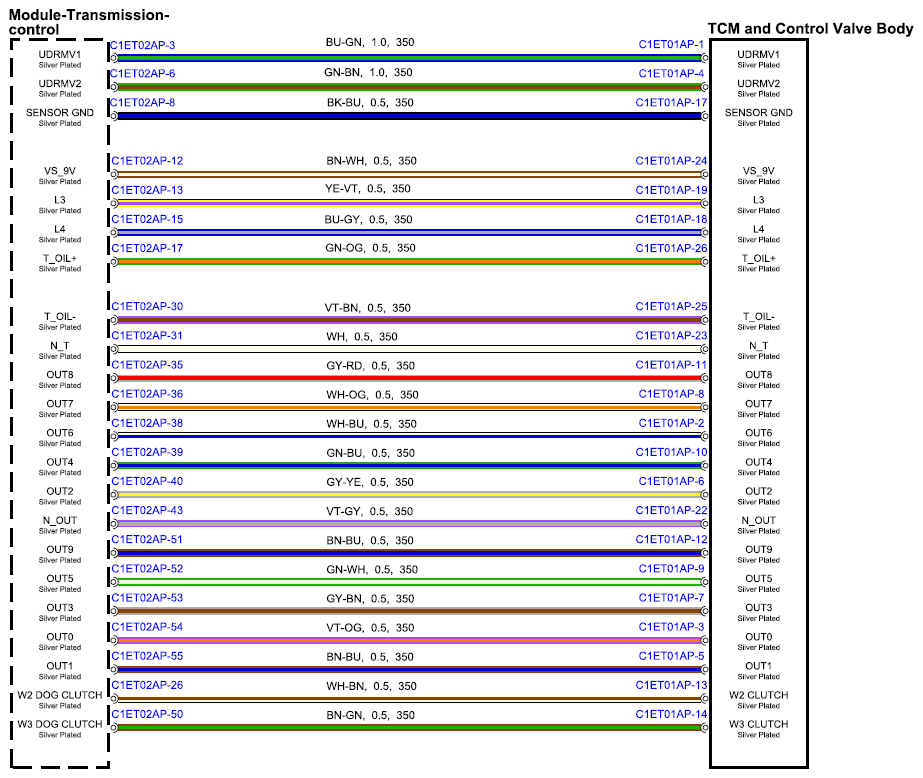

Fig 2: Automatic Transmission Circuit Diagram - PI4 (Sheet 2)
G15669285Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
