303-14E Electronic Engine Controls - Di4

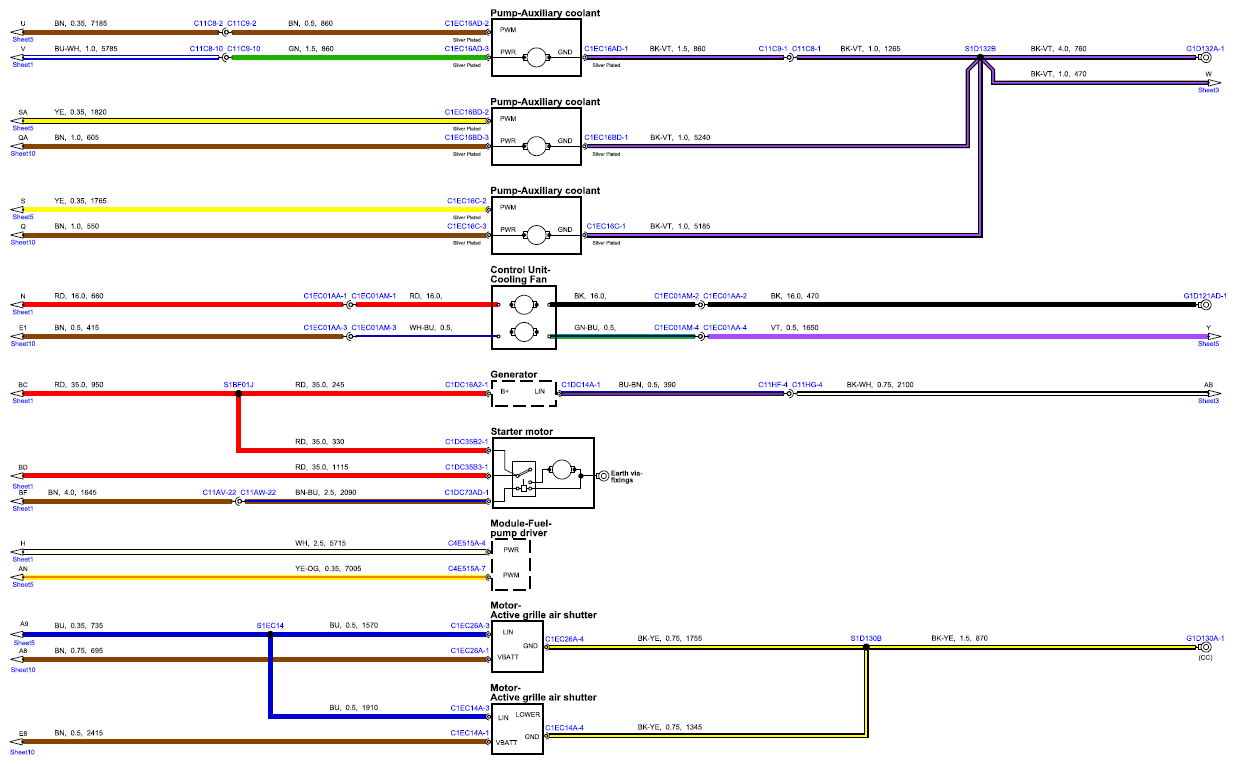

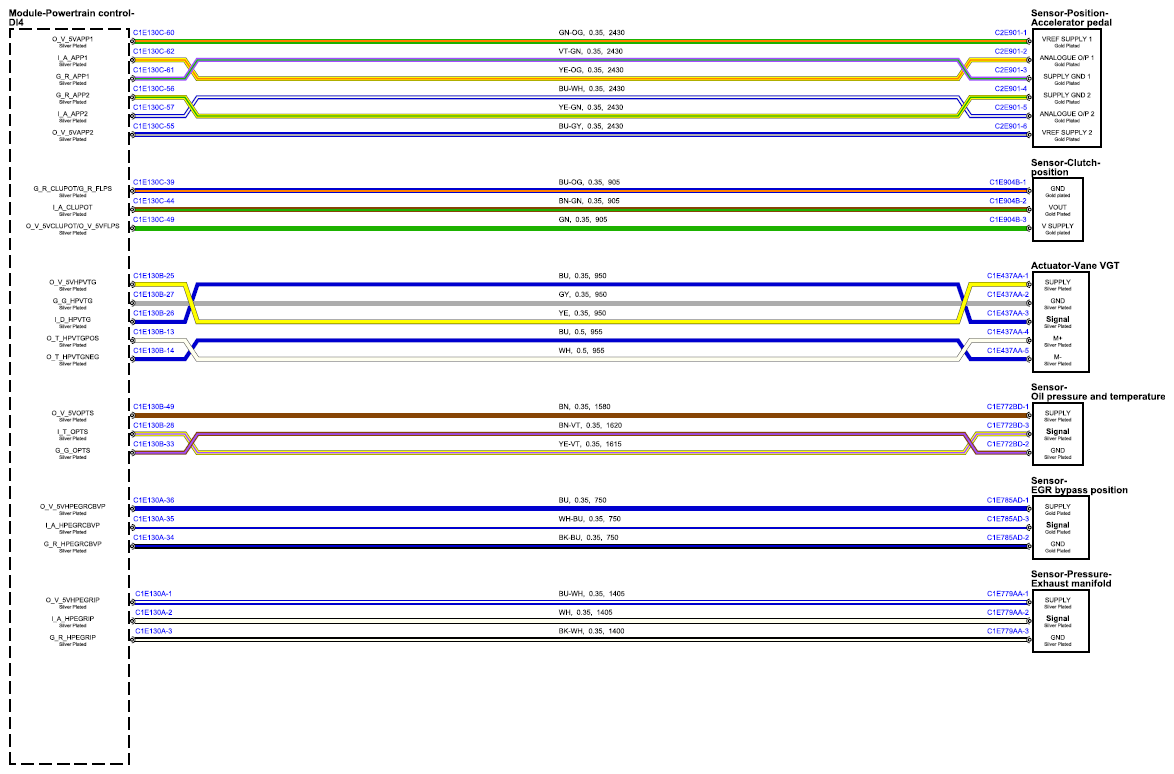

Fig 1: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

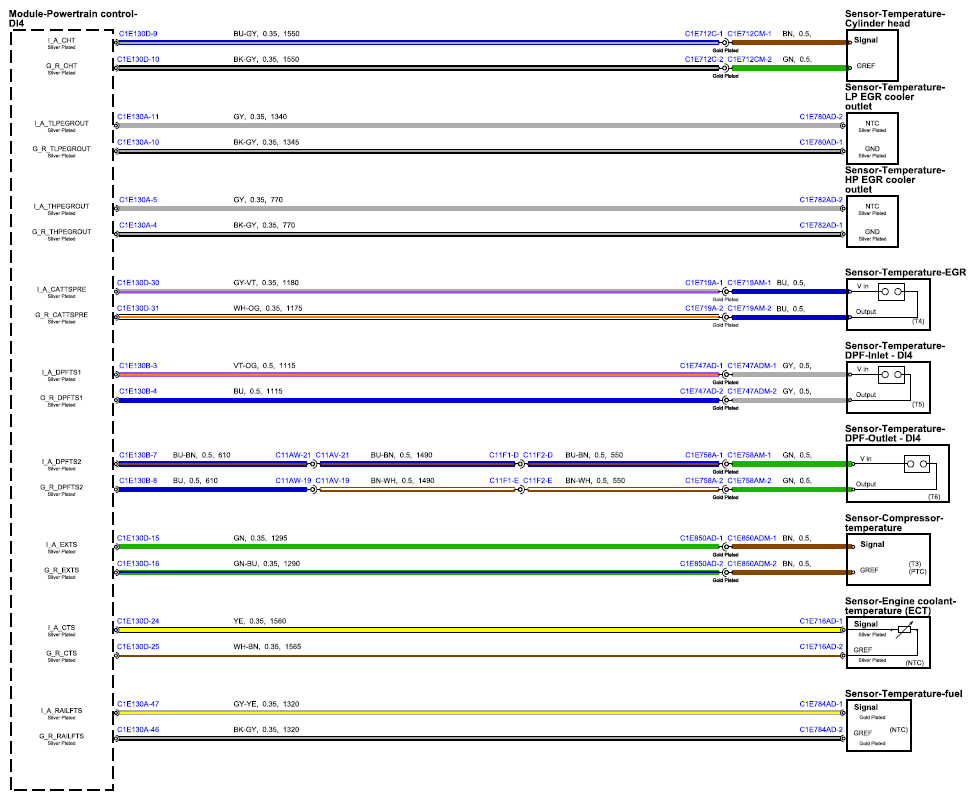

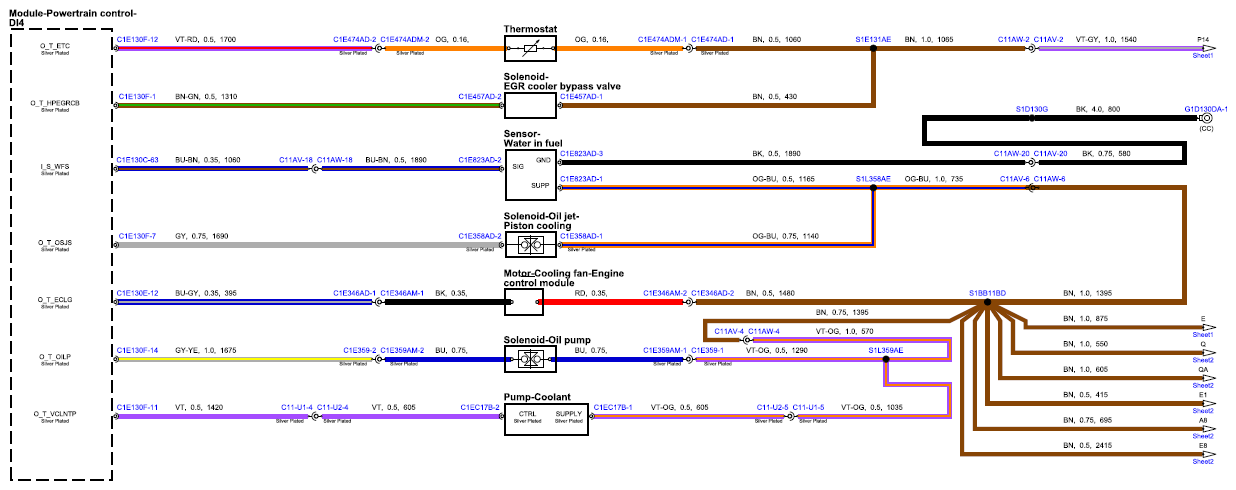

Fig 2: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

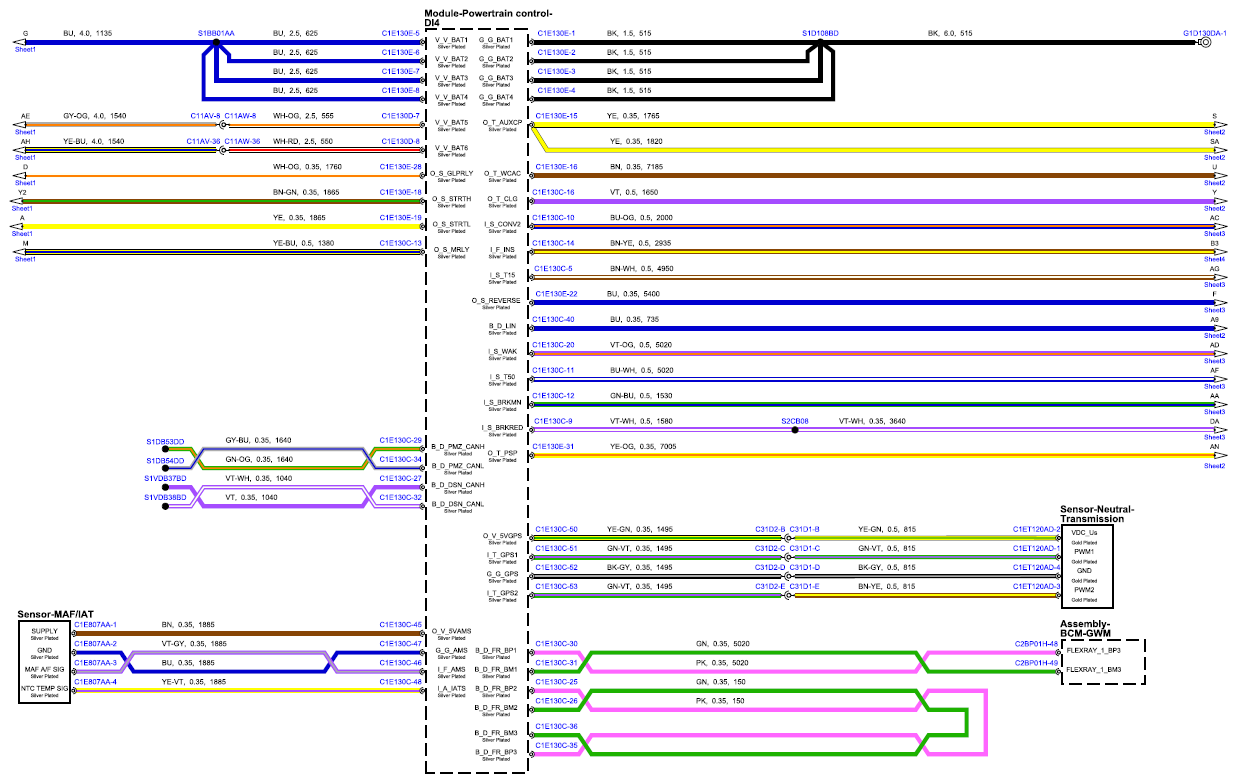

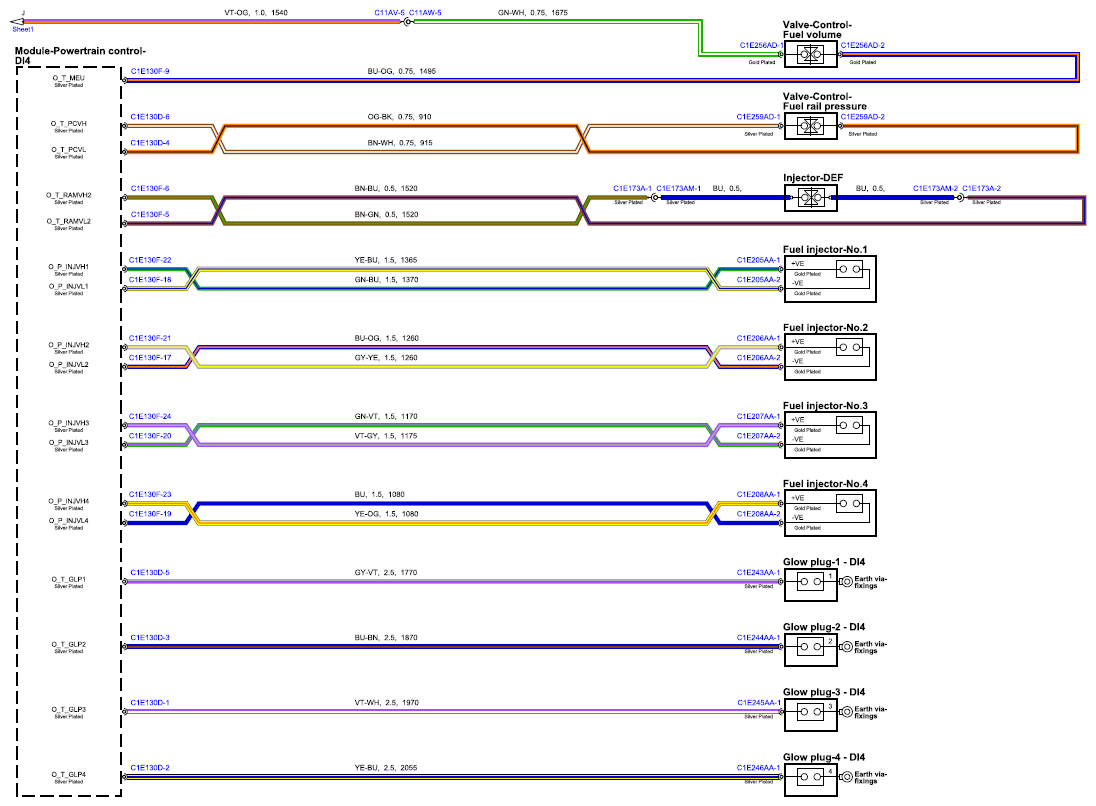

Fig 3: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

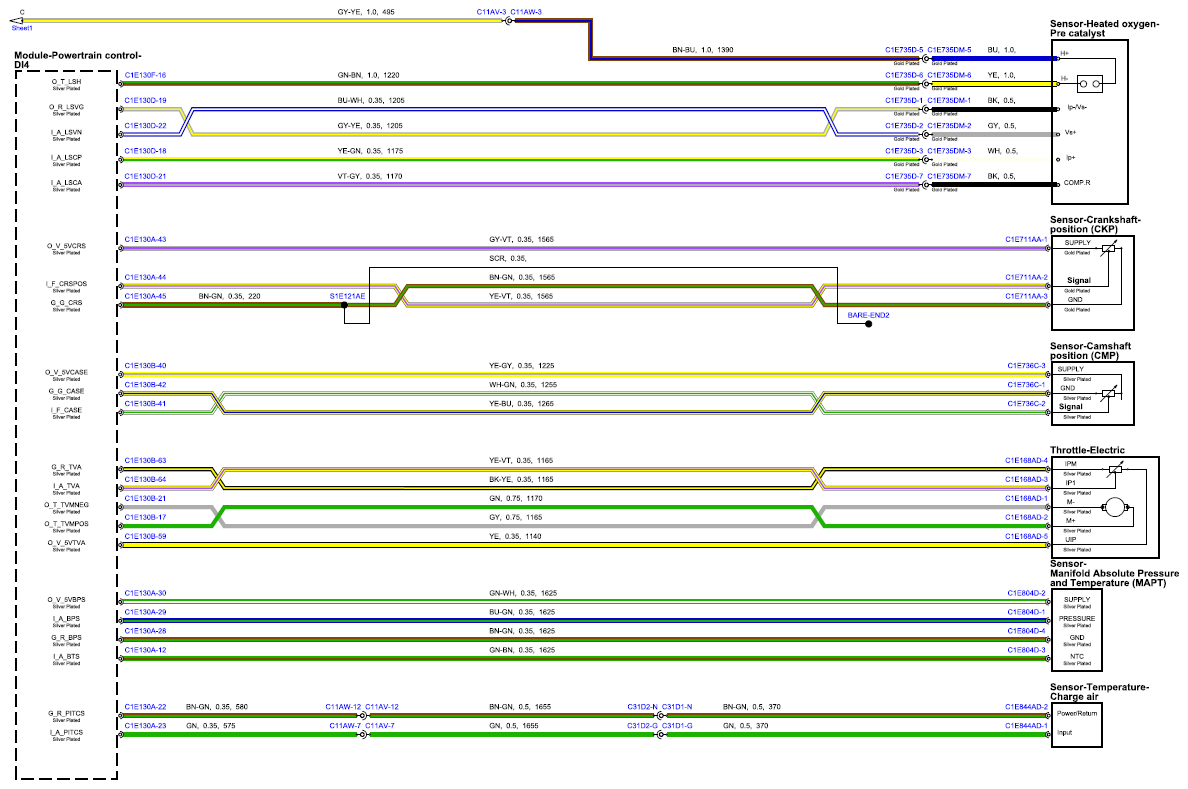

Fig 4: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

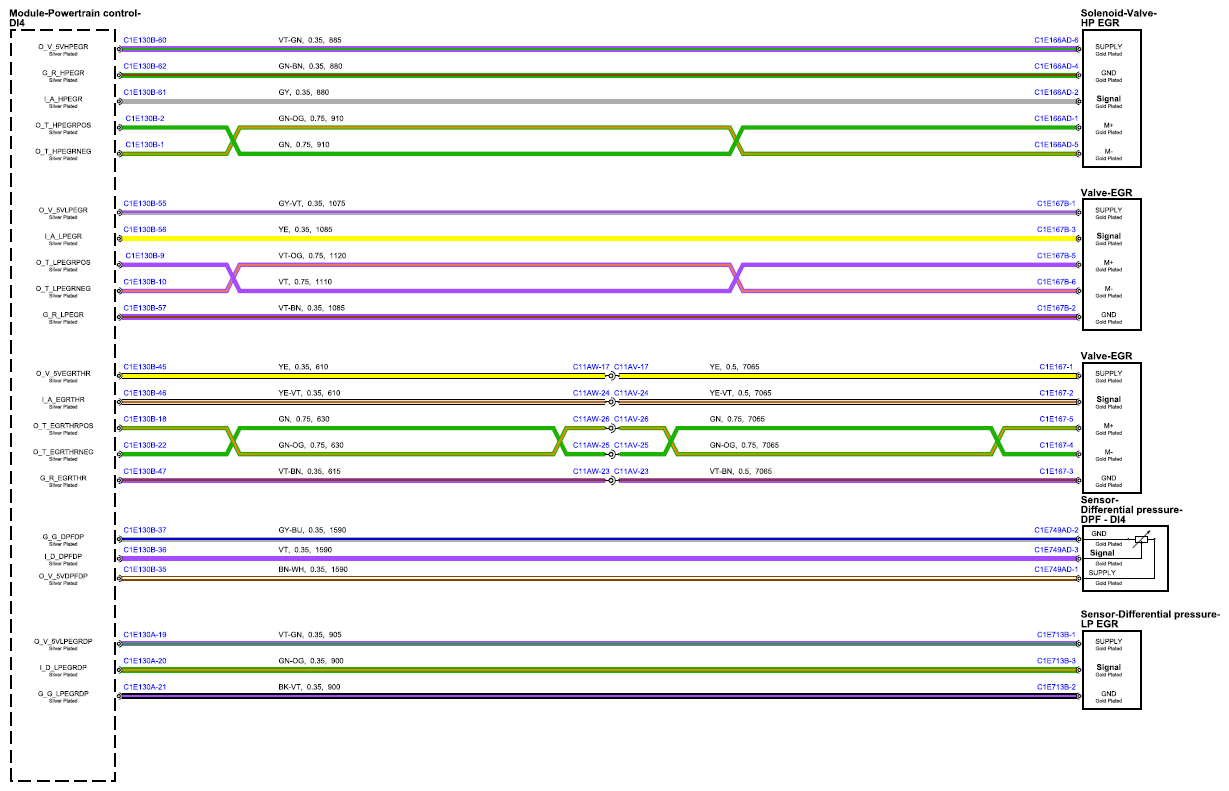

Fig 5: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

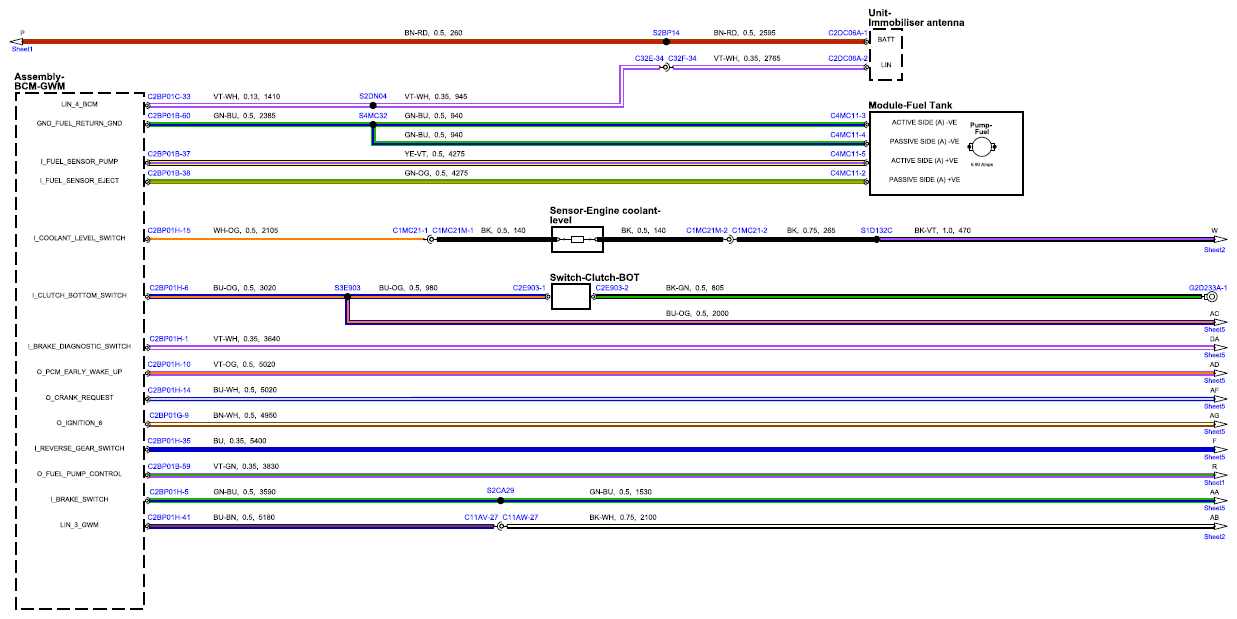

Fig 6: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

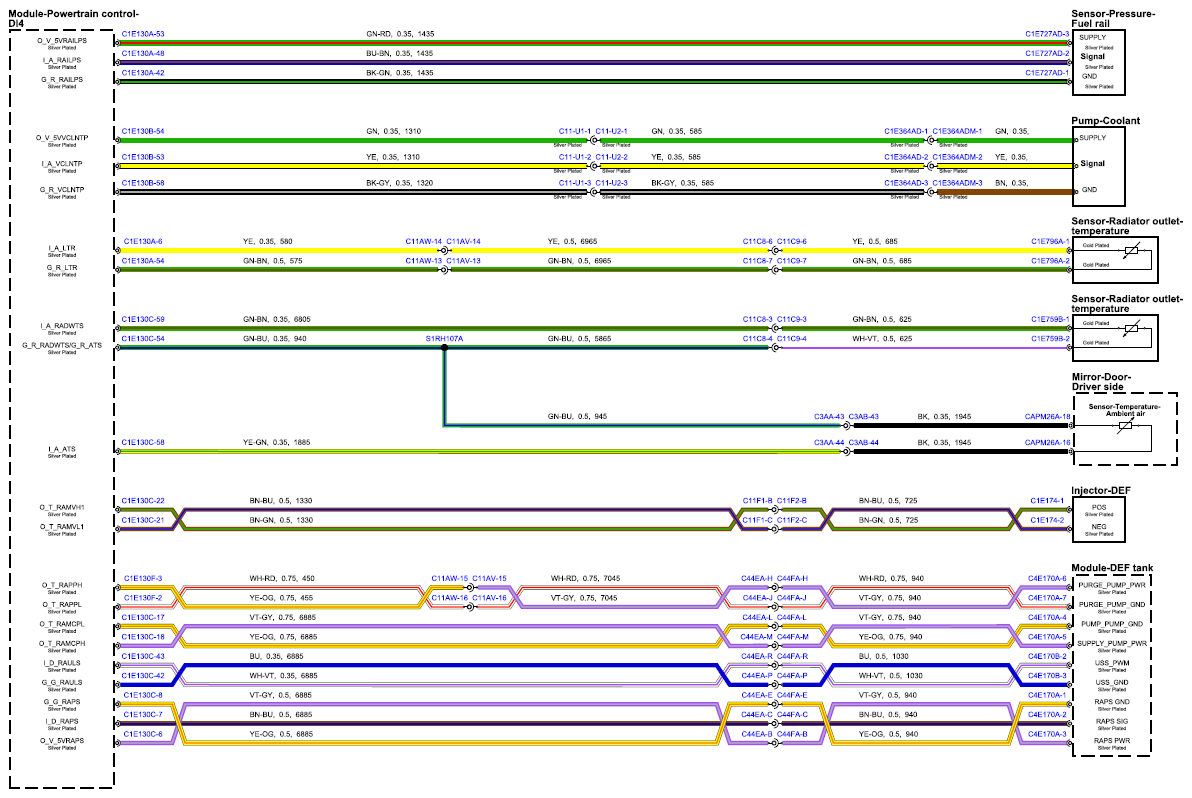

Fig 7: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 7)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

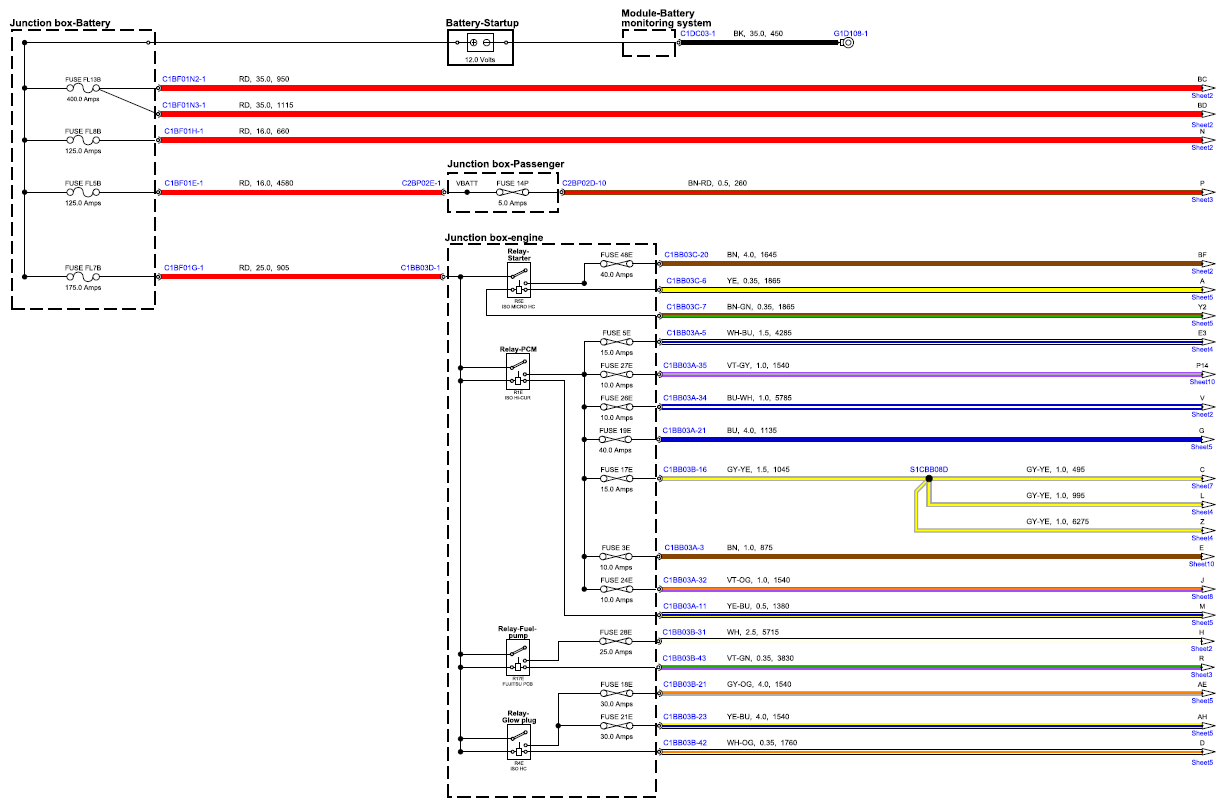

Fig 8: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 8)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 9: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 9)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 10: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 10)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 11: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 11)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 12: Electronic Engine Controls Circuit Diagram - DI4 (Sheet 12)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
