303-06D Starting System - Pi4: Notes

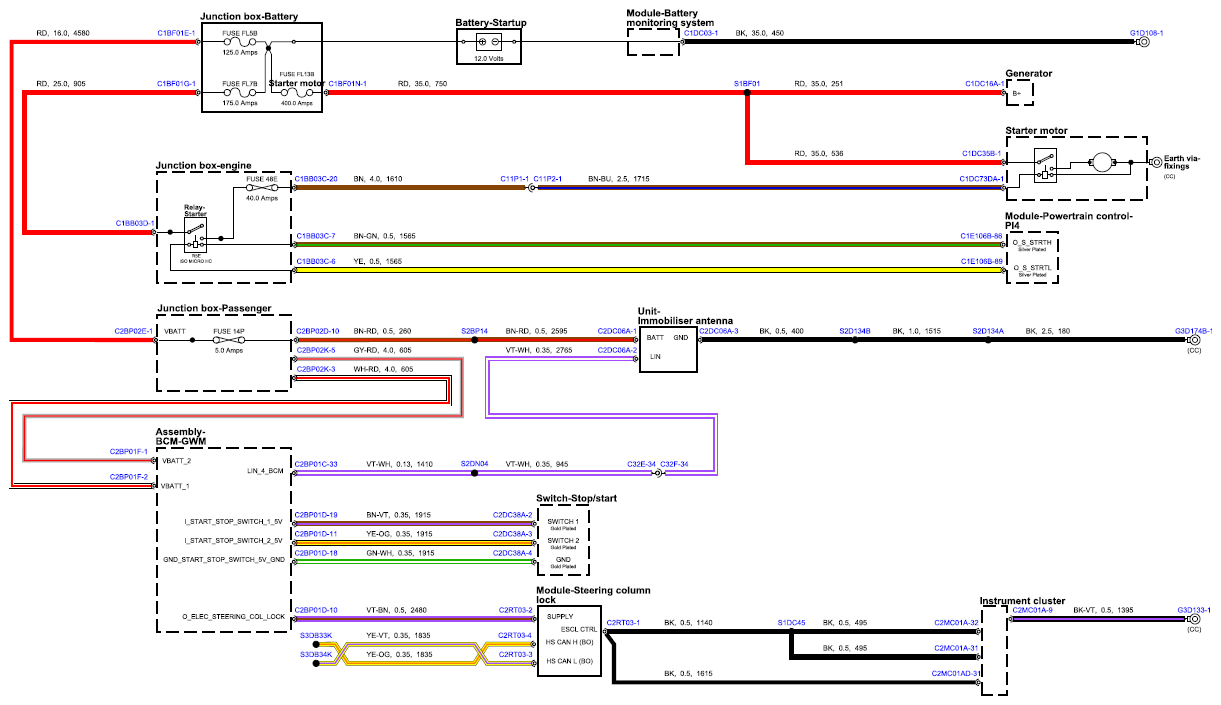

Fig 1: Starting System Circuit Diagram - PI4

G15669242

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
