303-06C Starting System - Pi3: Notes

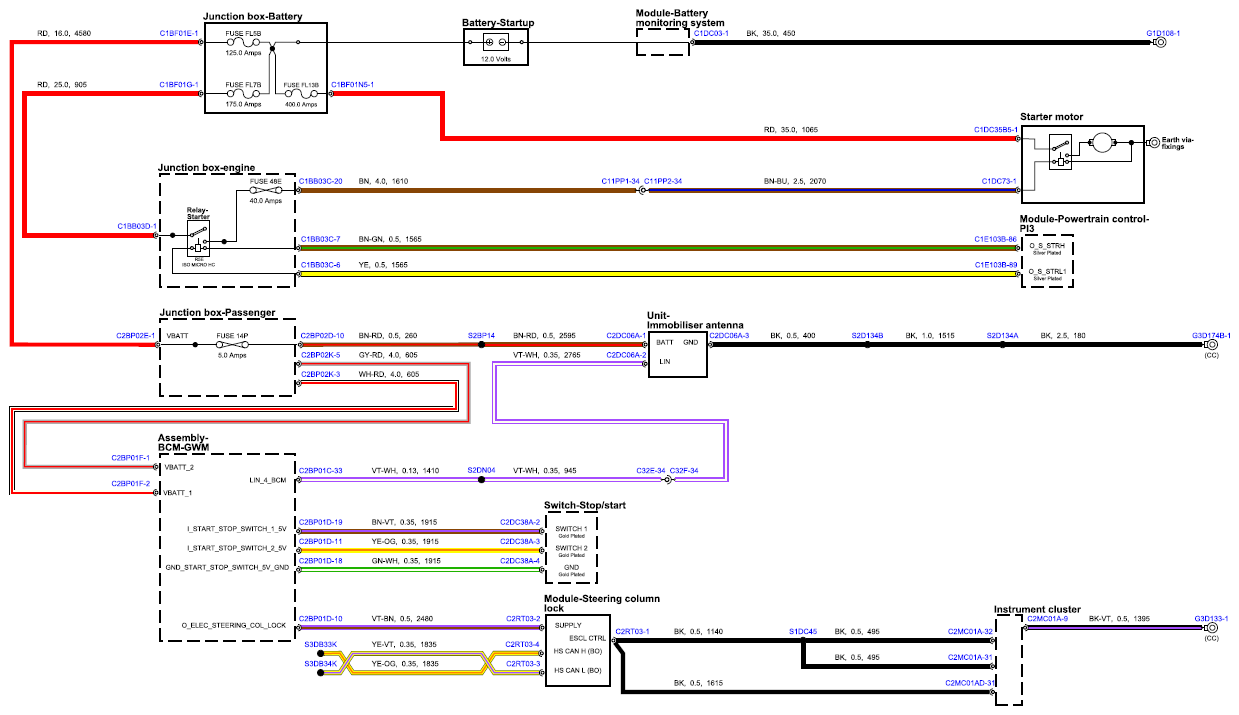

Fig 1: Starting System Circuit Diagram - PI3

G15669238

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
