303-06B Starting System - Di4: Notes

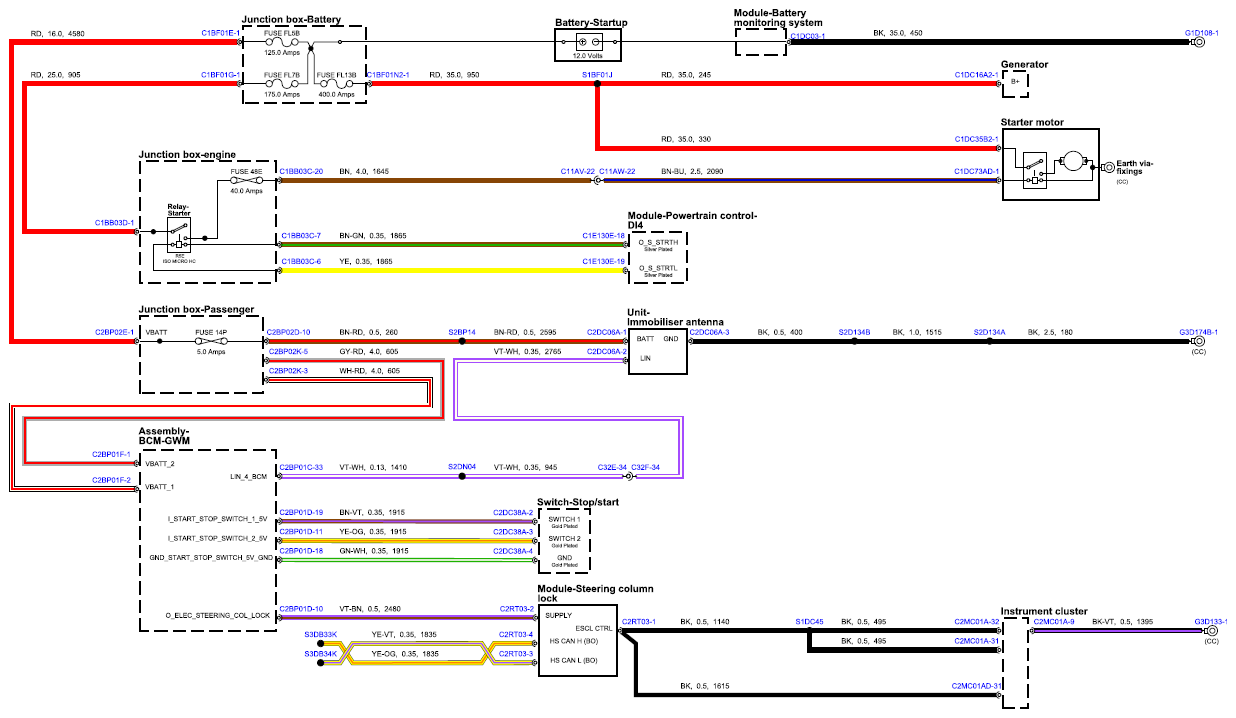

Fig 1: Starting System Circuit Diagram - DI4 (Sheet 1)

G15669234

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
