Clock spring

Fig 1: Clock Spring Circuit Diagram - Sheet 1

G15669228

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

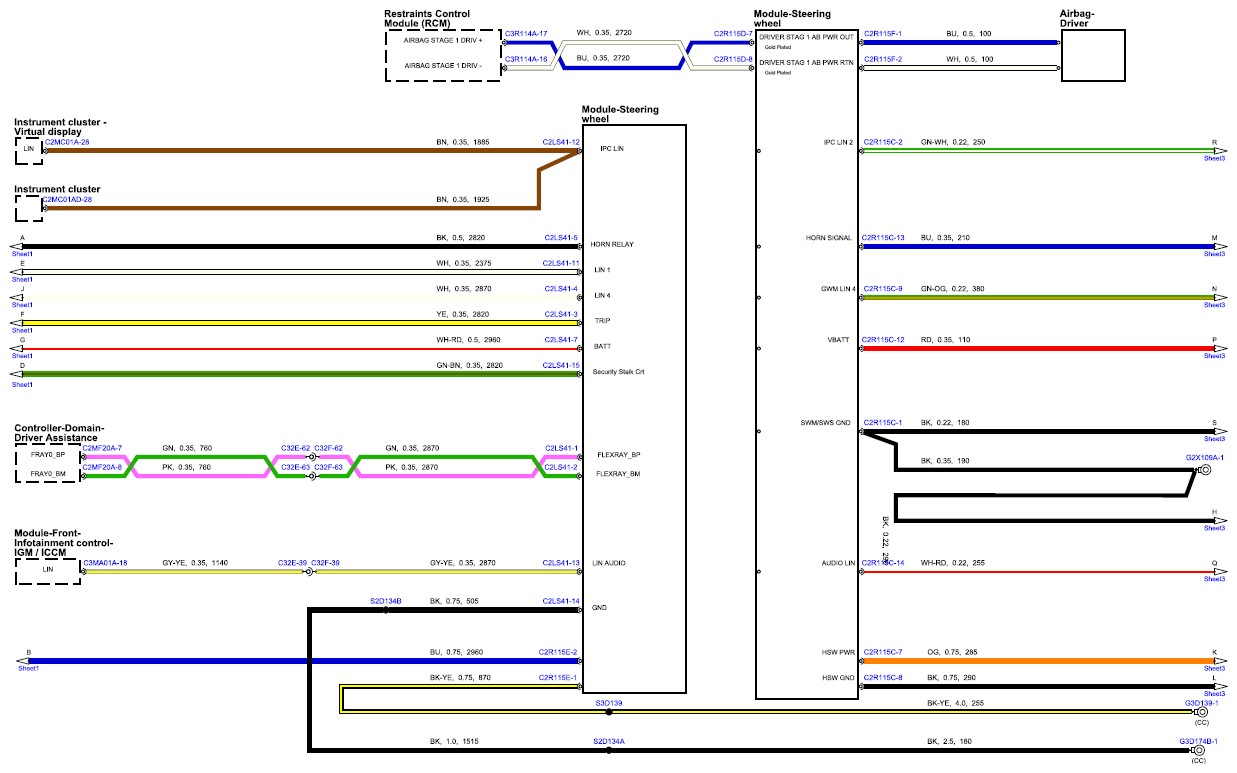

Fig 2: Clock Spring Circuit Diagram - Sheet 2

G15669229

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

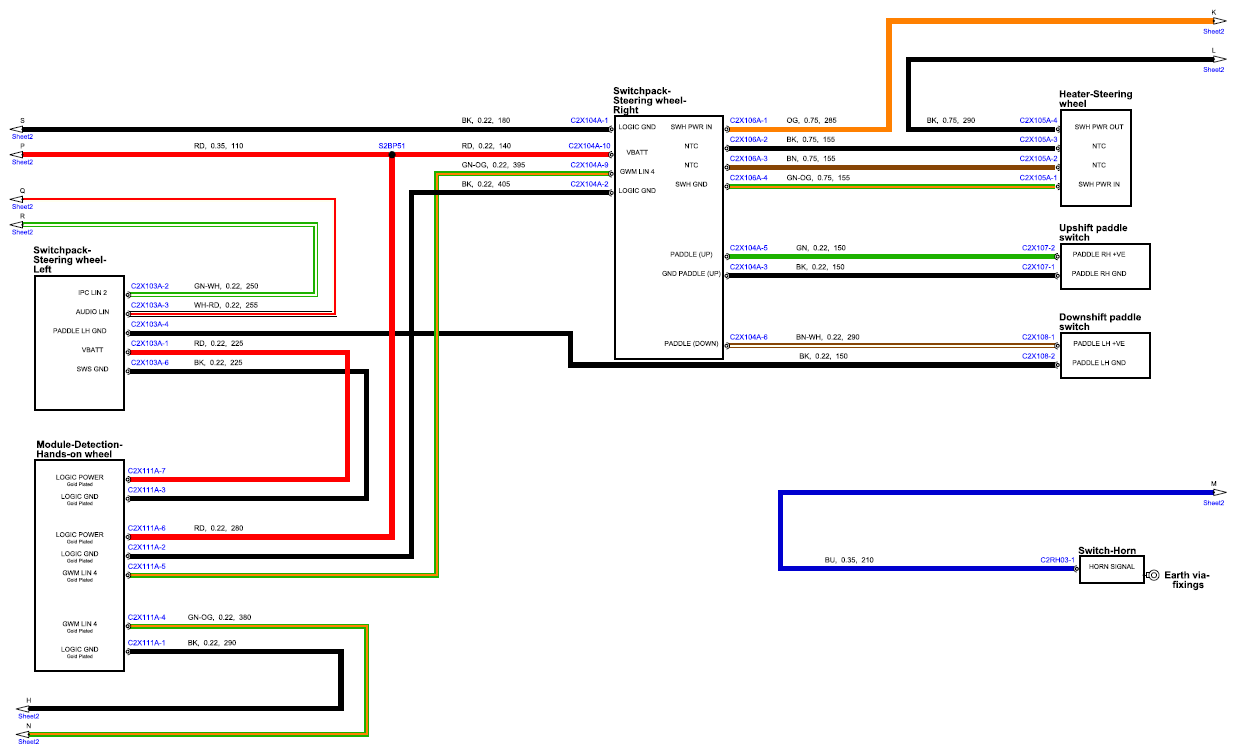

Fig 3: Clock Spring Circuit Diagram - Sheet 3

G15669230

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
