Jaguar
>>
2022
>>
E-Pace Base
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- E-Pace X540
>>
211-02 Power Steering
211-02 Power Steering

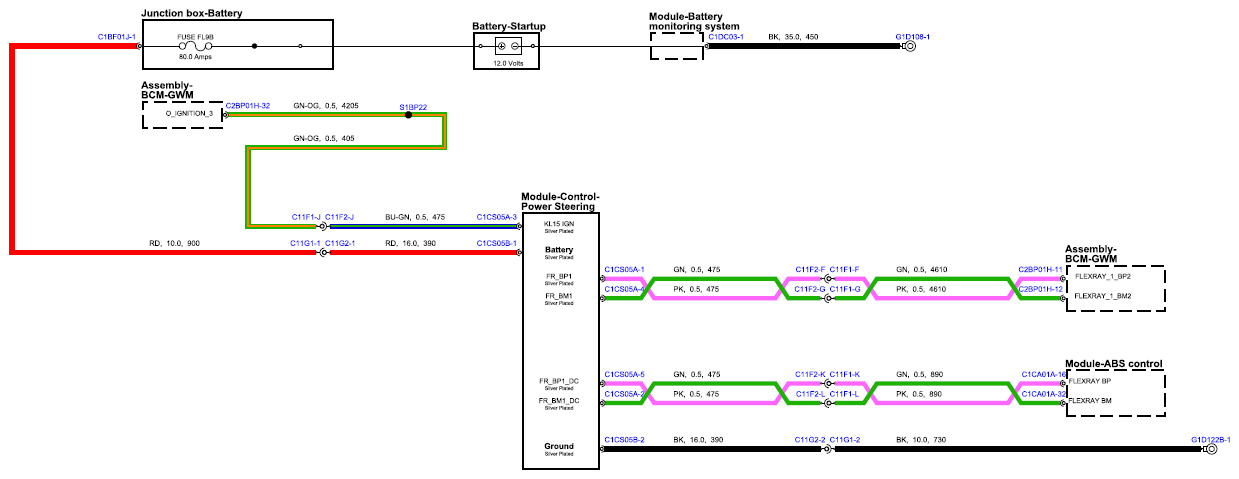

Fig 1: Power Steering Circuit Diagram - Sheet 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
