205-02 Rear Drive Axle And Differential

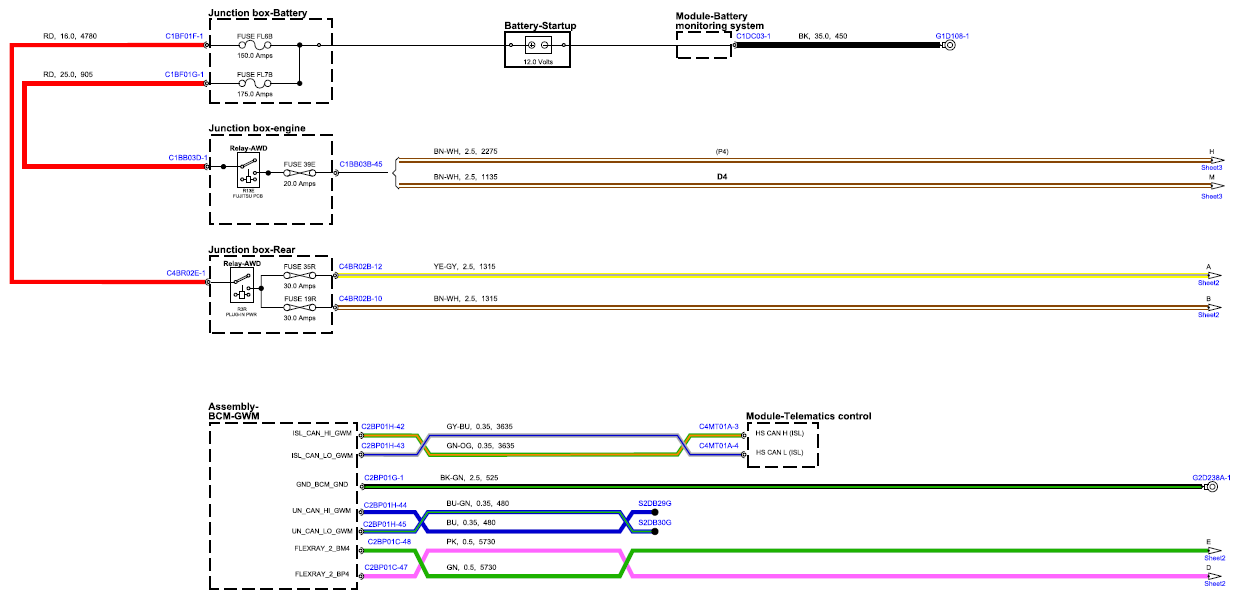

Fig 1: Rear Drive Axle And Differential Circuit Diagram - Sheet 1

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

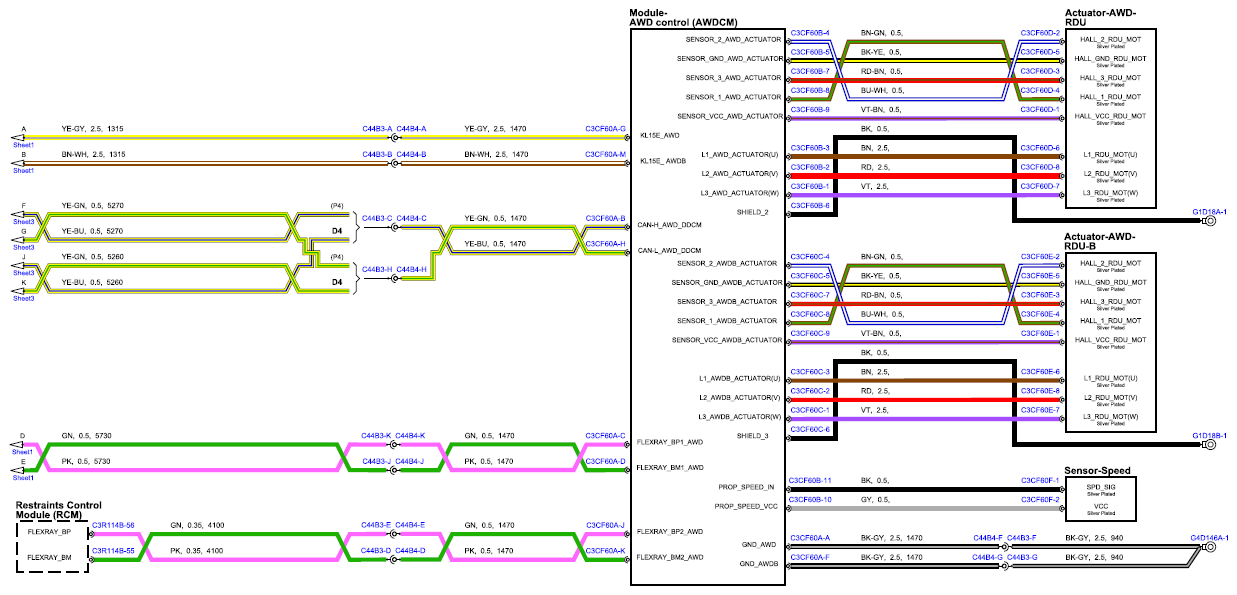

Fig 2: Rear Drive Axle And Differential Circuit Diagram - Sheet 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

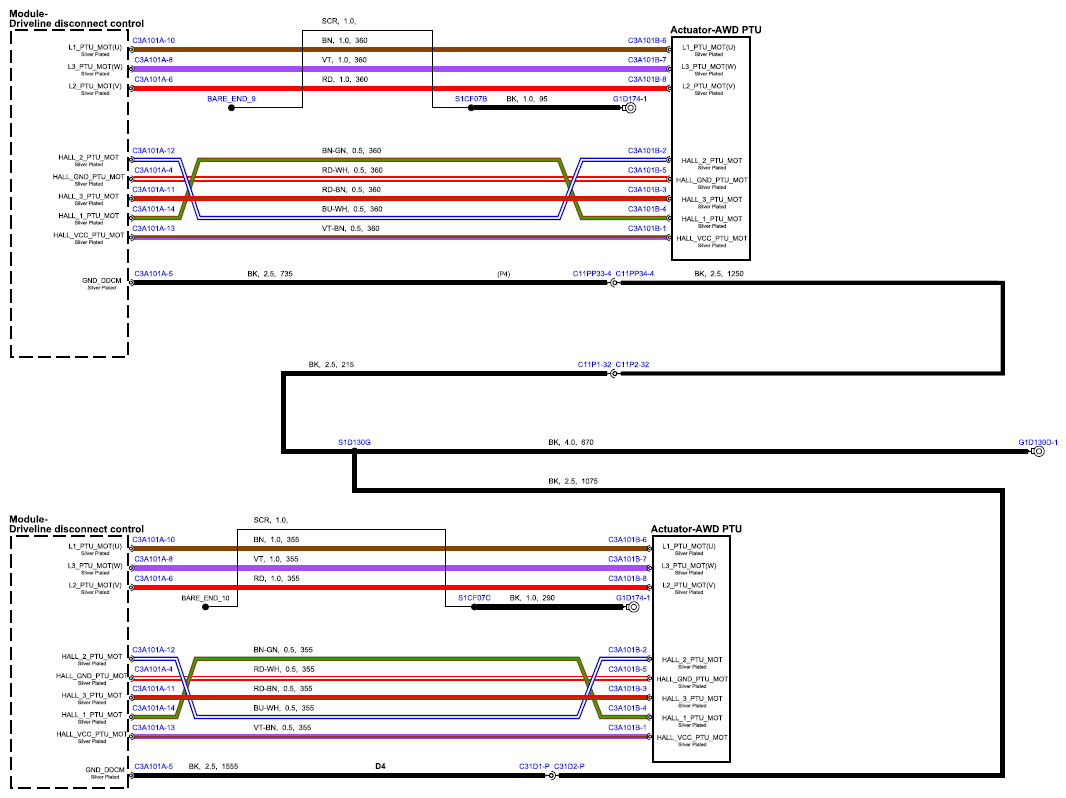

Fig 3: Rear Drive Axle And Differential Circuit Diagram - Sheet 3

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

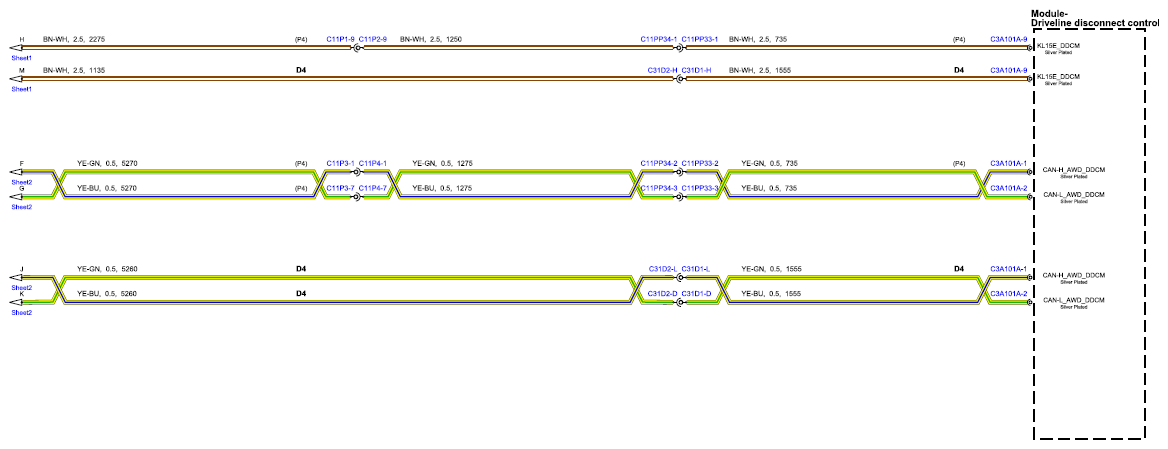

Fig 4: Rear Drive Axle And Differential Circuit Diagram - Sheet 4

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
