OEM Wiring Diagrams -- E-Pace X540
>>
204-06 Ride And Handling Optimization
>>
Terrain Response
Terrain Response

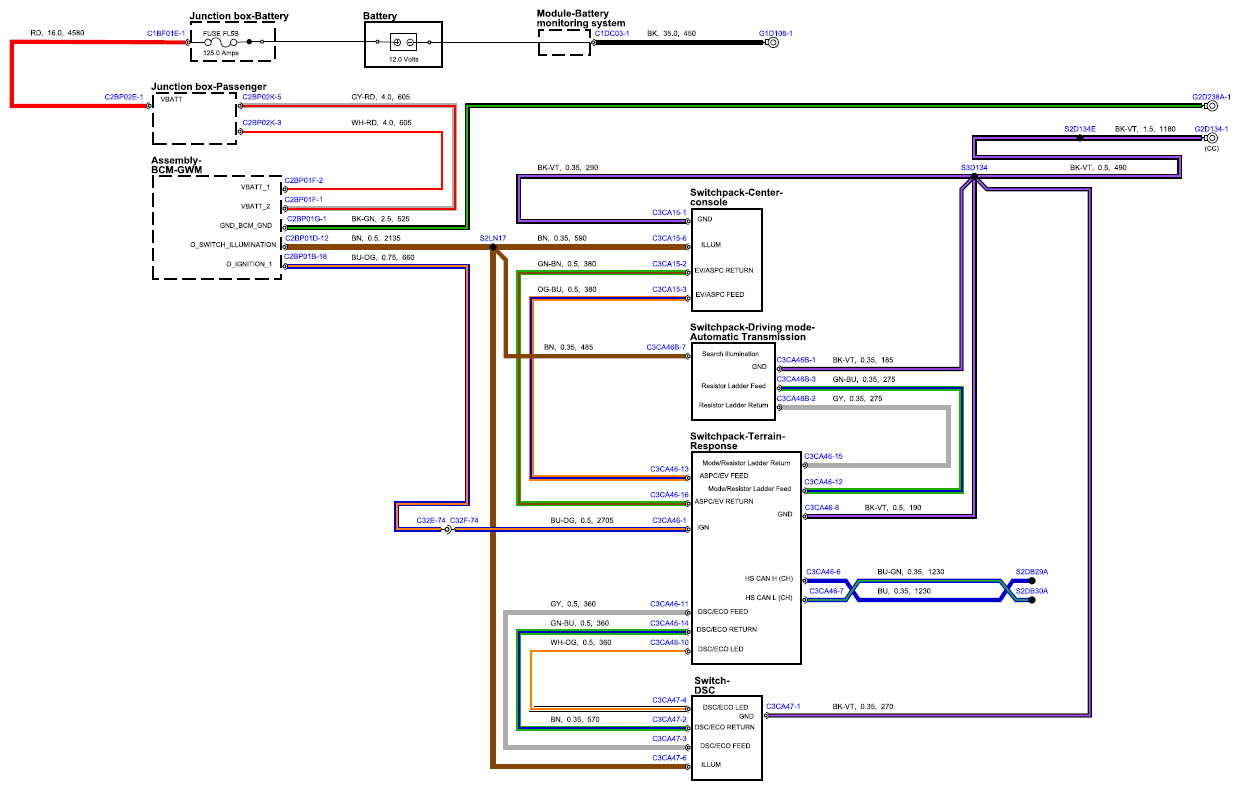

Fig 1: Ride And Handling Optimization Circuit Diagram - Terrain Response
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
