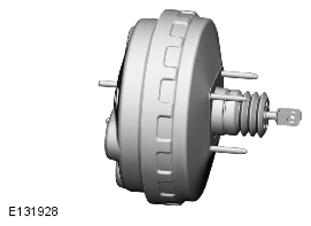

Brake Booster
The brake booster is located on the driver side of the engine compartment. The brake booster is sealed to the bulkhead with a gasket and secured with 4 studs and locking nuts. The brake booster actuating push rod is attached to the brake pedal with a clevis pin. The brake booster output rod locates in the primary piston of the brake master cylinder.
The brake booster is a compact unit that occupies less space than a conventional brake booster, improving the vehicle's crash performance characteristics. The brake booster is installed with tandem diaphragms that are 203.20 mm (8.00 in) and 228.60 mm (9.00 in) in diameter and operate as a single unit.
