Air Spring - SPORTBRAKE (G2136742): Removal
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE
- Using the Jaguar Land Rover (JLR) approved diagnostic tool, depressurize the air spring at the relevant corner.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE - SPORTBRAKE
General Equipment : Jaguar Land Rover approved diagnostic equipment
-
WARNING: A small amount of air maybe released when removing the air line connector.NOTE: Discard the air line connector.
Disconnect the air line.
-
CAUTION: Note the installed position of the component prior to removal.

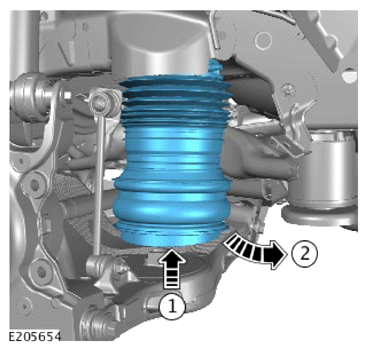

Compress the air spring and remove it from the vehicle.
