Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Removal and Installation).
  4. G11309755

    Torque Specification: 60 Nm

  5. G11309755

    Torque Specification: 48 Nm

  6. CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
    G11309757

    Using a suitable hydraulic jack, support the engine.

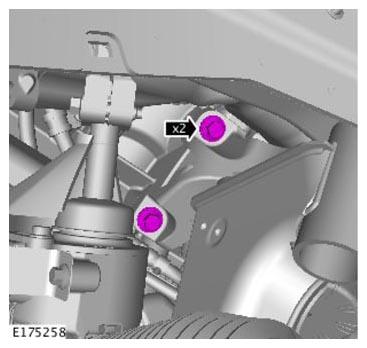

  7. G11309758

    Torque Specification: 48 Nm

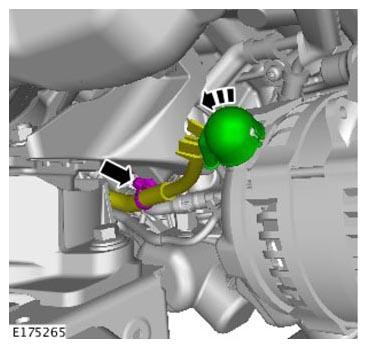

  8. G11309759

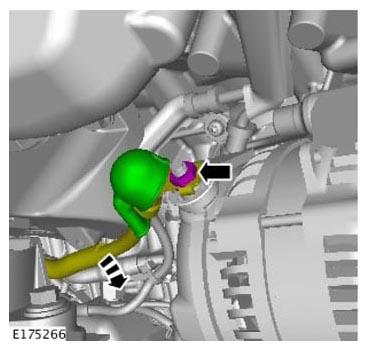

  9. G11309760

    Torque Specification: 12 Nm

  10. NOTE: Wiring harnesses shown removed for clarity.
    G11309761

    Torque Specification: 48 Nm

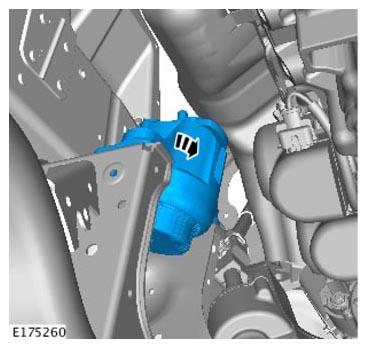

  11. G11309762
