Removal And Installation: Valves: Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: CYLINDER HEAD

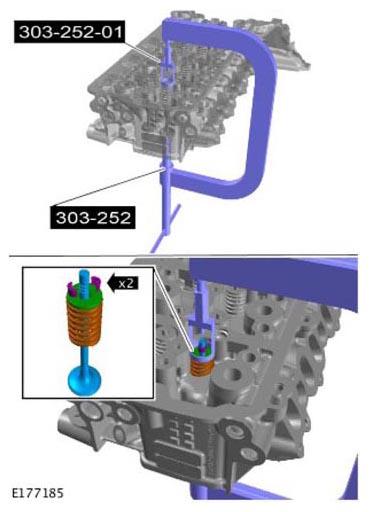

  2. G11309146Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using tool 303-252 compress valve spring. Remove 2 collets from valve stem using a magnet.

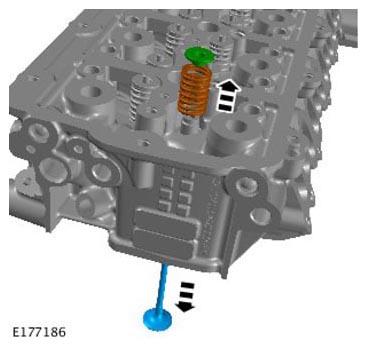

  3. G11309147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove spring cap, valve spring and valve.
