Upper Timing Cover: Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L DIESEL
  3. NOTE: Install new gaskets.

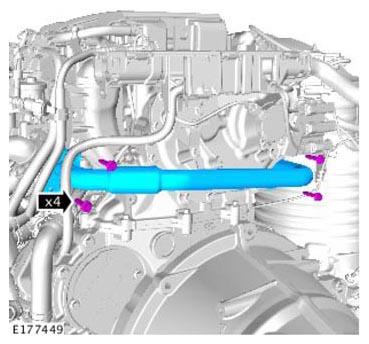

    G11309010Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Exhaust gas recirculation valve to crossover pipe gasket  Quantity: 2  .

    Torque  : 12Nm

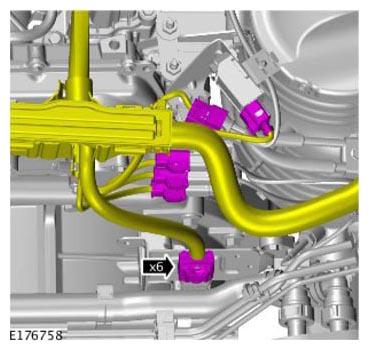

  4. G11309011Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

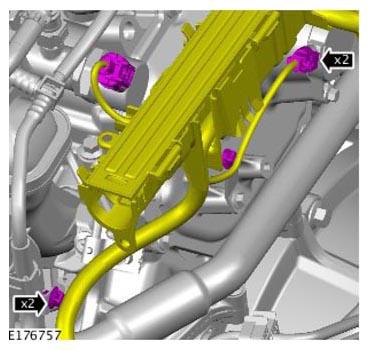

  5. G11309012Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

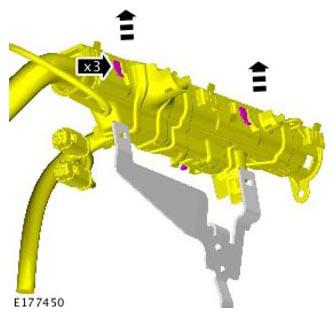

  6. G11309013Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

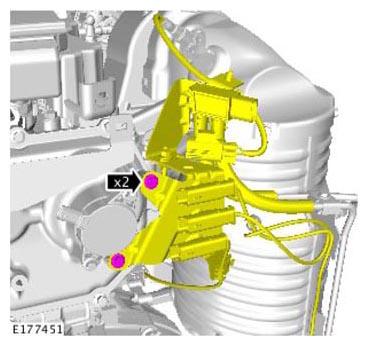

  7. G11309014Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 12Nm

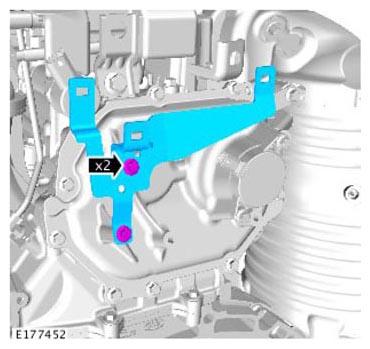

  8. G11309015Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 12Nm

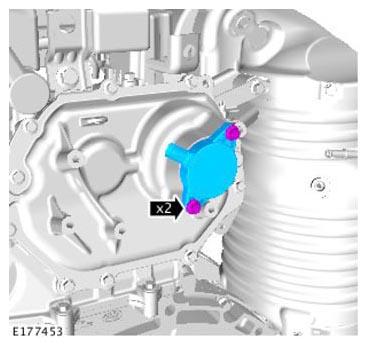

  9. G11309016Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

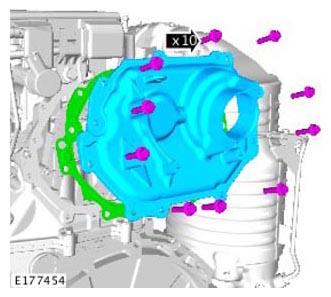

  10. CAUTION: Discard the gasket.
    G11309017Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
