Upper Timing Chain - Remove For Access: Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

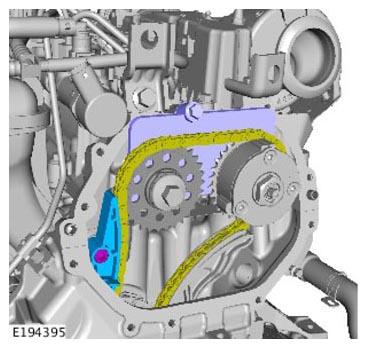

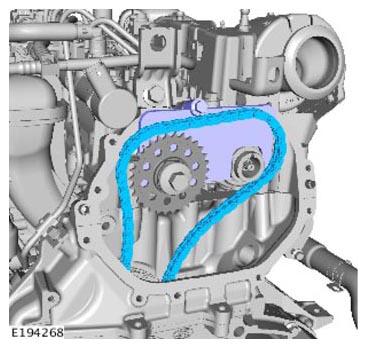

• Install the timing chain.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

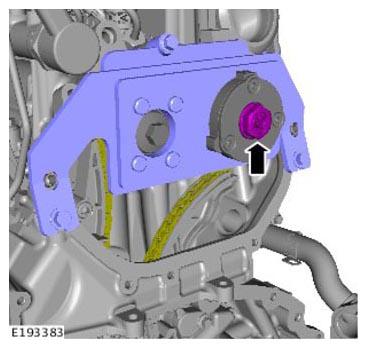

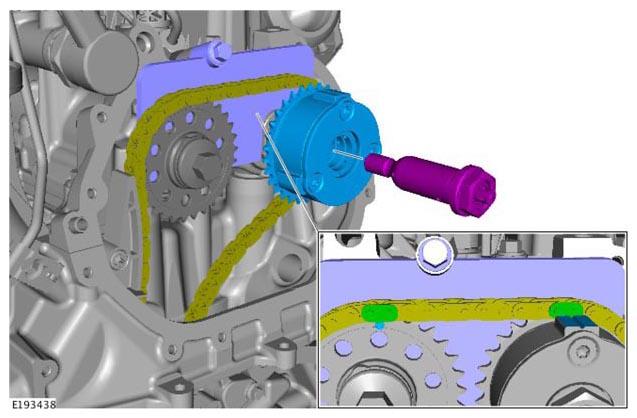

• Install the variable valve timing unit.
• Install the bolt, but do not fully tighten at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

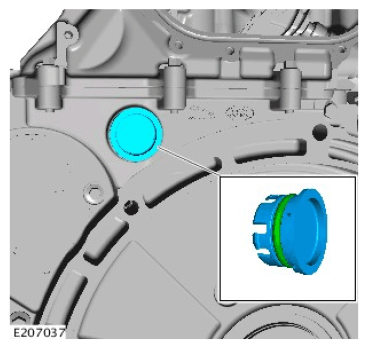

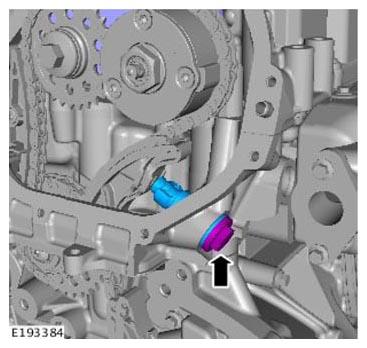

Using a suitable tool, remove and discard the lower timing chain cover blanking plug.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

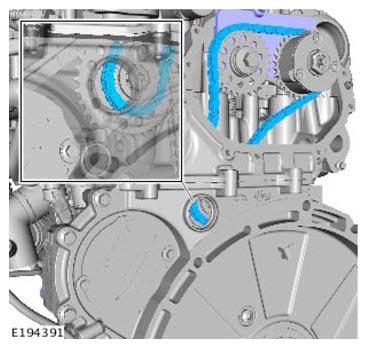

Make sure the timing chain is located on the idler pulley.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure a new lower timing chain blanking plug is installed.

Renew Part: Lower timing cover blanking cap  Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

CAUTION: If the timing chain is not in this condition, or there is no gap, reposition the timing chain and re-measure.
NOTE: This step is to make sure the timing chain is in the correct position on the gears.

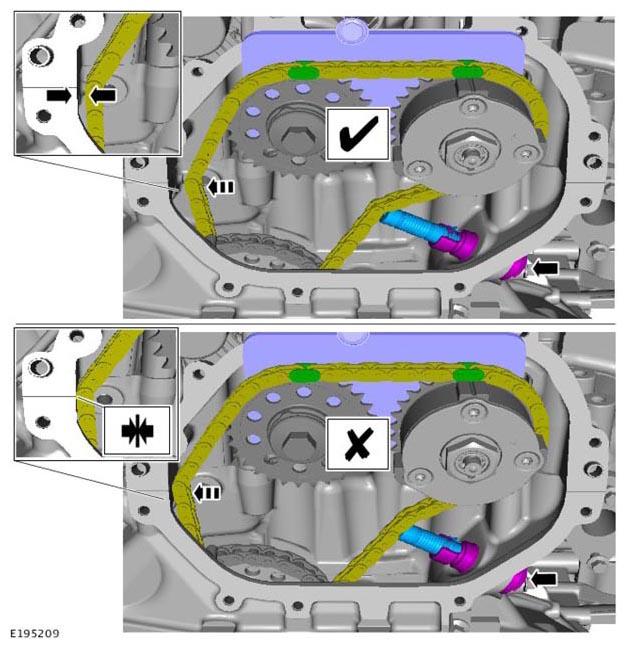

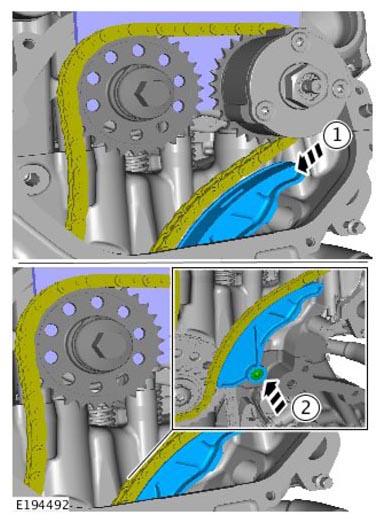

• Install the previously retained timing chain tensioner and allow it to release fully as illustrated.
• Push the left side of the timing chain towards the cylinder head, there should be a gap between the timing chain and the cylinder head.
• Remove and discard the timing chain tensioner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain tensioner guide.

Renew Part: Upper timing chain guide  Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

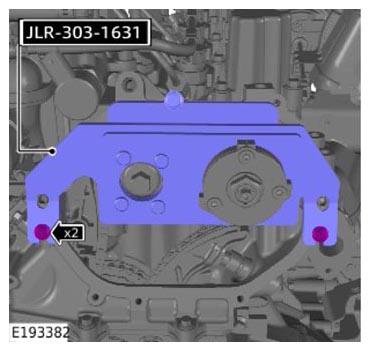

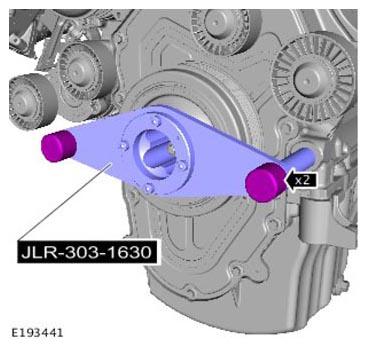

Install the special tool.

Special Tool(s): JLR-303-1631

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install and tighten a new variable valve timing unit bolt, using the indicated sequence.

Renew Part: Variable valve timing unit retaining bolt  Quantity: 1  .

Torque

Stage 1: 10Nm

Stage 2: Loosen: 90°

Stage 3: 25Nm

Stage 4: 40°

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

CAUTION: Only replace the timing chain guide when replacing the timing chain, guides and tensioners as a set.
• Install the timing chain guide.
• Install and tighten the bolt.

  Torque  : 25Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

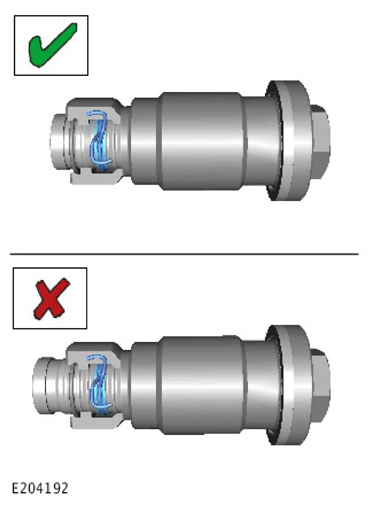

Before installing the new timing chain tensioner, make sure that the ratchet clip is on the first groove.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install and tighten a new timing chain tensioner.

Renew Part: Timing chain tensioner  Quantity: 1  .

Torque  : 55Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

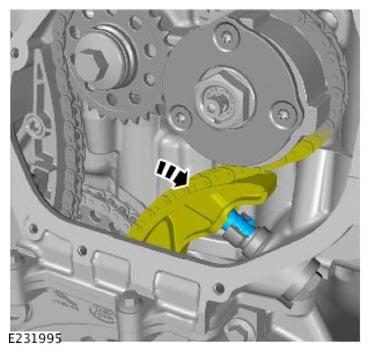

To correctly deploy the timing chain tensioner, push the timing chain guide against timing chain tensioner in the position illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

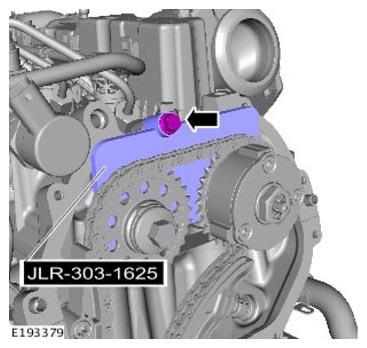

• Remove the bolt.
• Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Refer to: UPPER TIMING COVER

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

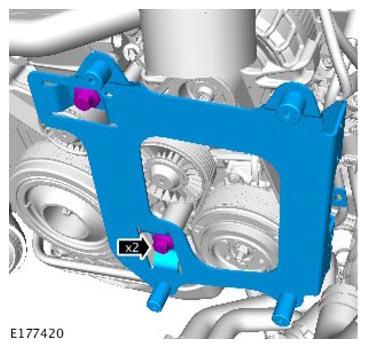

• Install the charge air cooler bracket,
• Install and tighten the 2 bolts.

  Torque  : 40Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

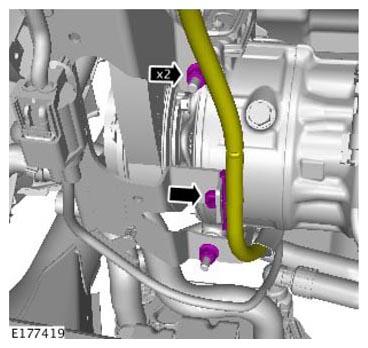

• Install the wiring harness.
• Install and tighten the 2 nuts.

  Torque  : 12Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

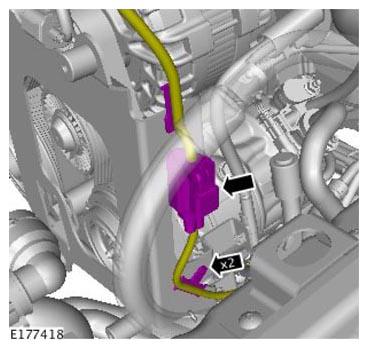

• Install the wiring harness.
• Connect the electrical connector.

Refer to: CHARGE AIR COOLER

Refer to: HOOD

Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
